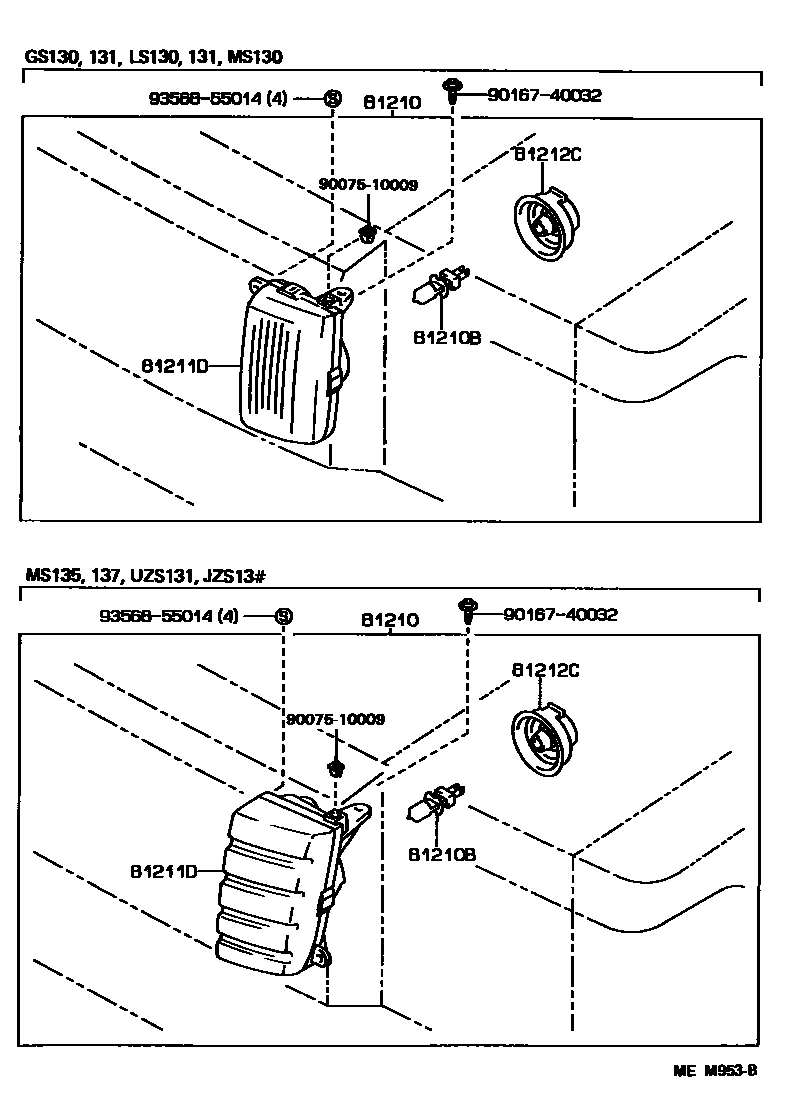

Toyota CROWN — FOG LAMP
81210LAMP ASSY, FOG
main81210-30090iGS130..SED..(SAL,SDX); GS130..SED..SALEX; GS130..WG..(ROY,SALEX); GS131..SED; LS130,MS130..SDX; LS130..(SED,WG)..SALEX198709-198709
main81210-30091iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(SALEX,SDX);GS130,131,MS130..SED..(ROY,SAL,SALEX,SDX)198709-198908
main81210-30092iGS130..SED..SDX;GS130..ROY,SALEX;GS131,LS130,131..(SED,WG)..(ROY,SAL,SALEX,SDX)198908-199110
main81220-30090iGS130..SED..(SAL,SDX); GS130..SED..SALEX; GS130..WG..(ROY,SALEX); GS131..SED; LS130,MS130..SDX; LS130..(SED,WG)..SALEX198709-198709
main81220-30091iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(SALEX,SDX);GS130,131,MS130..SED..(ROY,SAL,SALEX,SDX)198709-198908
main81220-30092iGS130..SED..SDX;GS130..ROY,SALEX;GS131,LS130,131..(SED,WG)..(ROY,SAL,SALEX,SDX)198908-199110
81210BBULB, FOG LAMP
main90981-13027×2iGS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110
81211DLAMP UNIT, FOG LAMP
main81211-30090iGS130..SED..(SAL,SDX); GS130..SED..SALEX; GS130..WG..(ROY,SALEX); GS131..SED; LS130,MS130..SDX; LS130..(SED,WG)..SALEX198709-198709
main81211-30091iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(SALEX,SDX);GS130,131,MS130..SED..(ROY,SAL,SALEX,SDX)198709-198908
main81211-30092iGS130..SED..SDX;GS130..ROY,SALEX;GS131,LS130,131..(SED,WG)..(ROY,SAL,SALEX,SDX)198908-199110
main81221-30090iGS130..SED..(SAL,SDX); GS130..SED..SALEX; GS130..WG..(ROY,SALEX); GS131..SED; LS130,MS130..SDX; LS130..(SED,WG)..SALEX198709-198709
main81221-30091iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(SALEX,SDX);GS130,131,MS130..SED..(ROY,SAL,SALEX,SDX)198709-198908
main81221-30092iGS130..SED..SDX;GS130..ROY,SALEX;GS131,LS130,131..(SED,WG)..(ROY,SAL,SALEX,SDX)198908-199110
81212CCOVER, FOG LAMP
main90075-99008×2iGS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS13#..ROY,ROYG,SALEX,SDX,SPE,SSL198709-198908
main90075-99019×2iGS130..SED..SDX;GS130..ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-199110
9007510009
main90075-10009
9016740032
main90167-40032
9356855014
main93568-55014
7 parts on this diagram · 2 diagrams in section
FOG LAMP for Toyota CROWN
This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, COVER, FOG LAMP.
