Toyota CROWN — FOG LAMP

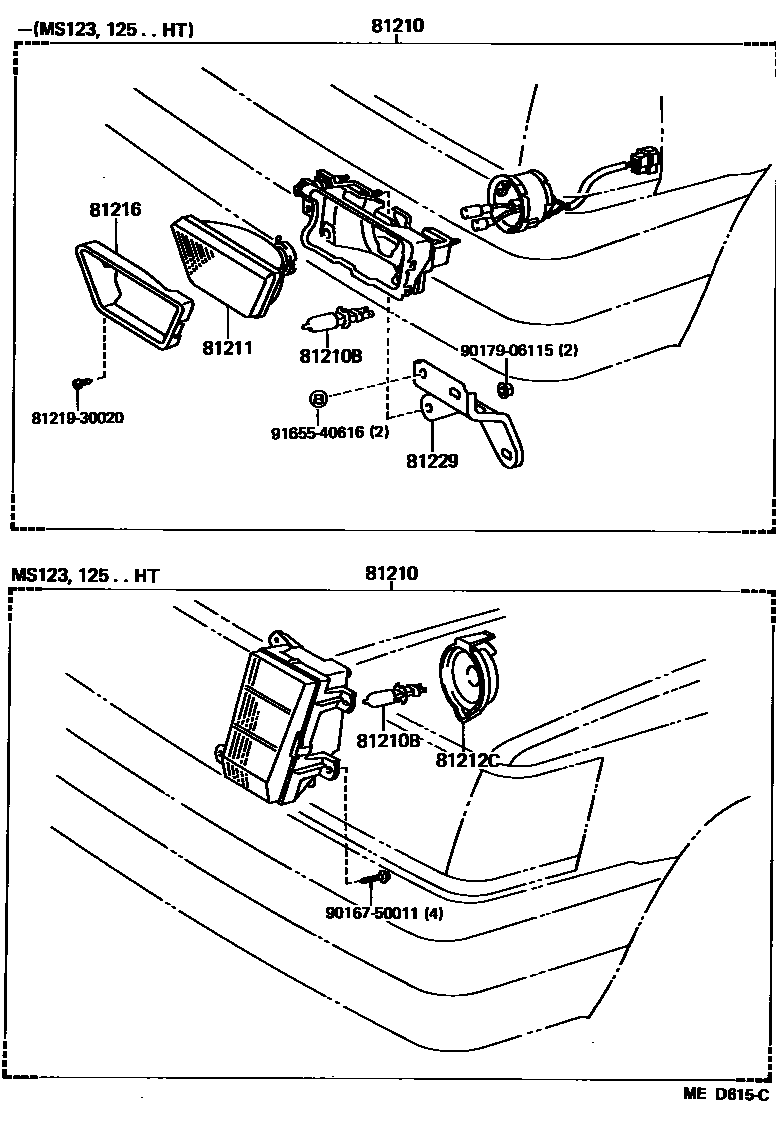

Parts diagram

81210LAMP ASSY, FOG

main81210-30031i198509-198708

RH

main81210-30061i198509-198708

RH

main81210-30070i198509-198708

RH

main81210-30080i198509-198708

RH

main81210-39105i198308-198509

RH

main81210-39125i198308-198509

RH

main81210-39135i198308-198509

RH

main81220-30021i198509-198708

LH

main81220-30051i198509-198708

LH

main81220-30060i198509-198708

LH

main81220-30070i198509-198708

LH

main81220-39055i198308-198509

LH

main81220-39065i198308-198509

LH

main81220-39075i198308-198509

LH

81210BBULB, FOG LAMP

main90981-13031×2i198308-198708

81211LENS, FOG LAMP

main81211-30020i198308-198509

RH

main81211-30031i198509-198708

RH

main81211-30061i198509-198708

RH

main81211-30070i198509-198708

RH

main81211-30080i198509-198708

RH

main81221-30010i198308-198509

LH

main81221-30021i198509-198708

LH

main81221-30051i198509-198708

LH

main81221-30060i198509-198708

LH

main81221-30070i198509-198708

LH

81212CCOVER, FOG LAMP

main81212-30030×2i198308-198509

81216RIM, FOG LAMP, NO.1

main81216-30020i198308-198509

RH

main81226-30010i198308-198509

LH

81229BRACKET, FOG LAMP

main52125-30020×2i198308-198509

main52125-30030×2i198308-198509

8121930020BOLT, FOG LAMP

main81219-30020

9016750011

main90167-50011

9017906115

main90179-06115

9165540616

main91655-40616

10 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CROWN

This section contains 11 genuine Toyota parts for the FOG LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, COVER, FOG LAMP, RIM, FOG LAMP, NO.1.
