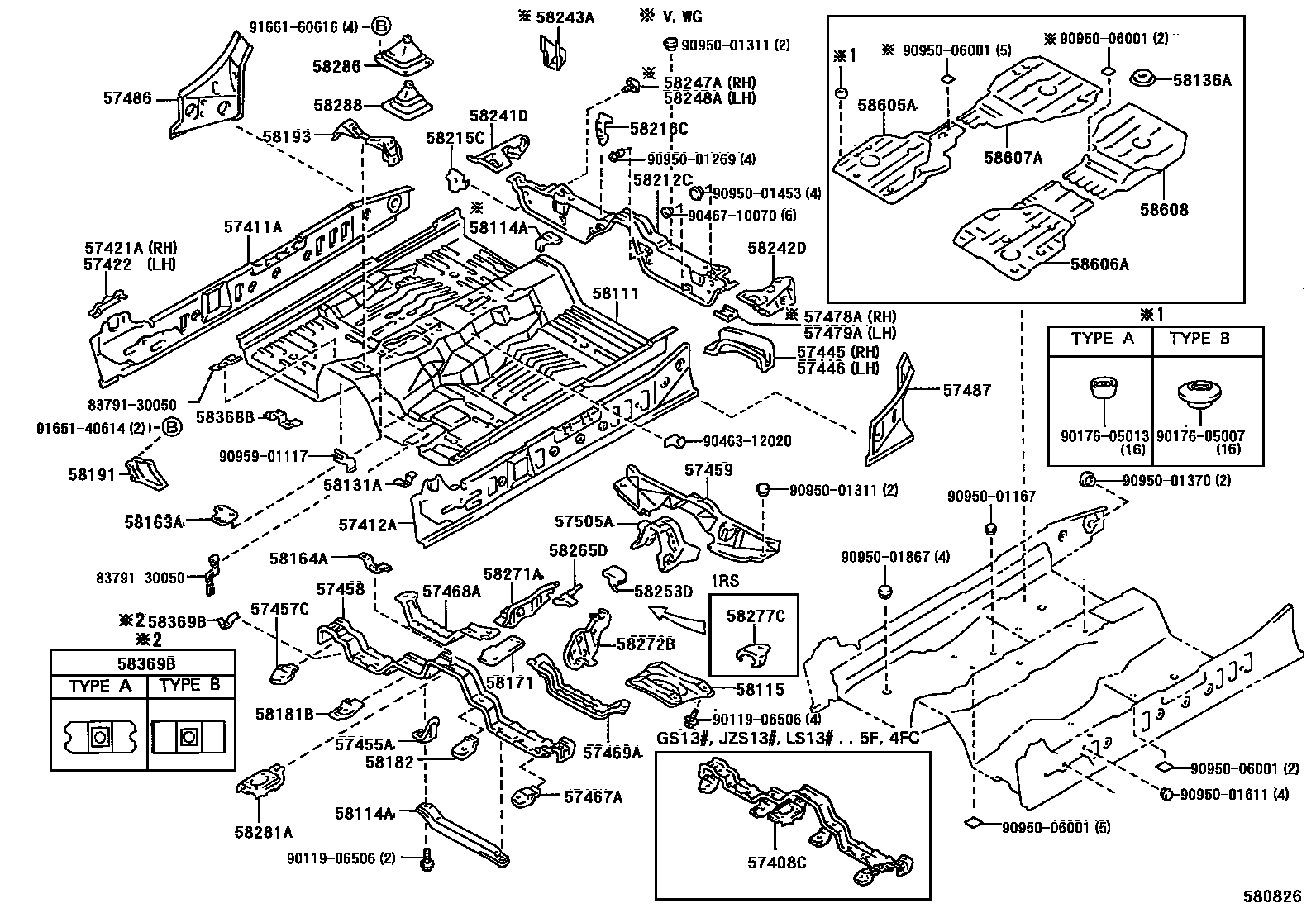

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57458-30900iGS13#,JZS13#,LS13#,YS130..4FC,5F199110

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-30080iGS13#,JZS13#,LS13#199110-199112

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-30080iGS13#,JZS13#,LS13#199110-199112

57421APLATE, FLOOR SIDE RAIL, RH

main57421-30031iGS13#,JZS13#,LS13#199110-199112

57422PLATE, FLOOR SIDE RAIL, LH

main57422-30031iGS13#,JZS13#,LS13#199110-199112

57445REINFORCEMENT, NO.5 BODY MOUNTING, RH

main57445-30010iGS13#,JZS13#,LS13#199110-199112

57446REINFORCEMENT, NO.5 BODY MOUNTING, LH

main57446-30010iGS13#,JZS13#,LS13#199110-199112

57455ABRACKET, FRONT FLOOR CROSSMEMBER

main57455-30010iGS13#,JZS13#,LS13#199110-199112

57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH

main57457-30040iGS13#,JZS13#,LS13#199110-199112

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57458-30040iGS13#,JZS13#,LS13#199110-199112

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-30050iGS131,LS131199110-199512

main57459-30060iGS130,JZS130,LS130199110-199112

main57459-30070iJZS131,133,135199110-199512

main57459-91702iGS136,LS136199110

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-30040iGS13#,JZS13#,LS13#199110-199112

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-30040iGS13#,JZS13#,LS13#199110-199112

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-30050iGS13#,JZS13#,LS13#199110-199112

57478AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH

main57478-91702iGS136,LS136199110

57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH

main57479-91703iGS136,LS136199110

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-30011iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-30011iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-30010iGS131,JZS131,133,135,LS131199110-199512

main57505-30020iGS130,136,JZS130,LS130,136,YS130199112

58111PAN, FRONT FLOOR

main58111-30261iGS13#,JZS13#,LS13#,YS130..4FC,5F199110

main58111-30271iGS130,136,JZS13#,YS130..4H,4HC199112

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-30040iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199211

main58114-91702×4iJZS130,LS130..WG199110

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-30010iGS131,JZS131,133,135,LS131199110-199512

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-14030×5iGS13#,JZS13#,LS13#199110-199112

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-30010×4iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

58163ARETAINER, CONSOLE BOX MOUNTING, NO.1

main58163-30030iGS130,YS130..(4H,4HC)..(LPEFI,TWLPG)199112-199512

58164ARETAINER, CONSOLE BOX MOUNTING

main58164-30020iGS13#,JZS13#,LS13#199110-199112

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-30050iJZS131,133,135..4HC;GS131,JZS131,LS131..4FC..SALEX199110-199512

main58107-30070iGS136..4H;GS130,JZS130,LS130,YS130..4FC,4H,4HC199112-199704

main58107-30080iJZS131,133,135..4FC..(ROY,ROYG)199110-199204

main58107-30081iJZS131,133,135..4FC..(ROY,ROYG)199204-199512

main58107-31010iGS130,JZS130,LS130..4FC199704

main58171-30050iGS130..5F;GS136,LS136..4FC,5F199110

58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH

main58181-30040iGS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F199110-199112

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-30030iGS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F199110-199112

58191FOOTREST, FRONT FLOOR

main58191-30020iGS13#,JZS13#,LS13#199110-199112

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58103-31010iGS13#,JZS130,LS130199704

main58193-30020iGS13#,JZS13#,LS13#199110-199112

58212CPAN, CENTER FLOOR, FRONT

main58212-30031iJZS131,133,135..ROY,ROYG;GS130,136,JZS130,LS130,136..V,WG199110

main58212-30060iJZS131..SALEX;GS130,131,LS130,131,YS130..SED199112-199512

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-30020×2iGS13#,JZS13#,LS13#,YS130199112

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-30010×2iGS13#,JZS13#,LS13#,YS130199112

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58105-30011iGS130,131,JZS13#,LS130,131199110-199112

main58241-30031iGS136,LS136199110

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58106-30021iGS130,131,JZS13#,LS130,131,YS130199112

main58242-30041iGS136,LS136199110

58243ABRACKET, REAR SEAT HINGE FRONT

main58243-91702×4iJZS130,LS130..WG199110

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-91705iGS130,136,LS136..V,WG199110

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-91705iGS130,136,LS136..V,WG199110

58253DBRACKET, PARKING BRAKE CABLE

main58253-30050iGS130,136..4H199110-199112

58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2

main58265-30030iGS130,136,JZS130,LS130,136,YS130199112

58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-30100iGS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F199110-199112

main58271-30110iGS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)199110

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58272-30100iGS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F199110-199112

main58272-30110iGS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)199110

58277CBRACKET, PARKING BRAKE CABLE GUIDE, NO.4

main58277-30020iGS131,JZS131,133,135,LS131199110-199512

58281ACOVER, TRANSMISSION AUXILIARY

main58281-30051iGS13#,JZS13#,LS13#,YS130..4FC,5F199110

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-30020iGS130,136,LS136..5F199110

58288SEAL, SHIFT LEVER BOOT

main58288-30011iGS130,136,LS136..5F199110

58368BBRACKET, FUEL TUBE, NO.2

main58368-30040iGS13#,JZS13#,LS13#199110-199112

58369BBRACKET, FUEL TUBE, NO.3

main58369-30040iGS13#,JZS13#,LS13#199110-199112

main58369-32010iGS13#,JZS13#,LS13#199110-199112

58605APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH

main58605-30021iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main58631-30020iGS130,LS130..DLX,SDX,STD199110-199112

58606APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH

main58606-30020iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main58632-30010iGS130,LS130..DLX,SDX,STD199110-199112

58607APANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

main58607-30020iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main58633-30020iGS130,LS130..DLX,SDX,STD199110-199112

58608PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

main58608-30030iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main58634-30010iGS130,LS130..DLX,SDX,STD199110-199112

8379130050

main83791-30050

9011906506

main90119-06506

9017605007

main90176-05007

9017605013

main90176-05013

9046312020

main90463-12020

9046710070

main90467-10070

9095001167

main90950-01167

9095001269

main90950-01269

9095001311

main90950-01311

9095001370

main90950-01370

9095001453

main90950-01453

9095001611

main90950-01611

9095001867

main90950-01867

9095006001

main90950-06001

9095901117

main90959-01117

9165140614

main91651-40614

9166160616

main91661-60616

70 parts on this diagram · 5 diagrams in section
