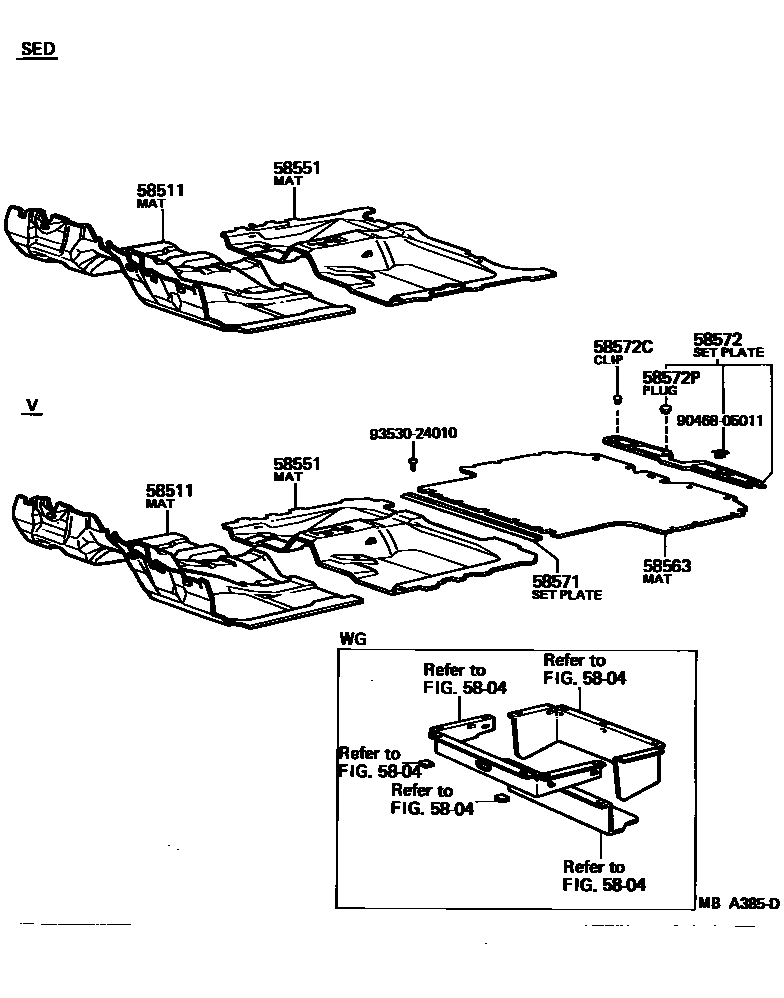

Toyota CROWN — FLOOR MAT

5804MAT & CARPET

→ Go to FIG 58-04

58511MAT, FLOOR, FRONT

main58510-30770i197909-198307

main58510-30790i197909-198307

COLD SPEC

main58510-30820i197909-198108

W/SEPARATE SEAT,COLD SPEC

main58510-30840i197909-198307

main58510-30850i197909-198307

W/SEPARATE SEAT

main58510-30880i197909-198307

COLD SPEC

main58510-30890i198108-198307

W/SEPARATE SEAT,COLD SPEC

main58510-91712i197909-198307

main58510-91713i197909-198307

58551MAT, FLOOR, REAR

main58540-30490i197909-198305

main58540-30491i198305-198307

main58540-30500i197909-198305

W/SEPARATE SEAT

main58540-30501i198305-198307

W/SEPARATE SEAT

main58540-30510i197909-198305

main58540-30511i198305-198307

main58540-91745i197909-198307

main58540-91746i197909-198307

58563MAT, REAR FLOOR

main58581-91701-04i197909-198108

BLUE,BLUE,TRIM8#

main58581-91701-05i197909-198108

GREIGE,BEIGE,TRIM4#

main58581-91703-04i198108-198307

BLUE,BLUE,TRIM8#

main58581-91703-05i198108-198307

BEIGE,BEIGE,TRIM4#

58571SET PLATE, REAR FLOOR MAT, FRONT

main58573-91703i197909-198307

58572SET PLATE, REAR FLOOR MAT, REAR

main58574-91702-04i197909-198108

BLUE,BLUE,TRIM8#

main58574-91702-05i197909-198108

GREIGE,BEIGE,TRIM4#

main58574-91702-15i198108-198307

BEIGE,BEIGE,TRIM4#

58572CCLIP, REAR FLOOR MAT SET

main90467-08114-24×4i197909-198108

BLUE,BLUE,TRIM8#

main90467-08114-45×4i198108-198307

BEIGE,BEIGE,TRIM4#

58572PPLUG, HOLE(FOR SET PLATE)

main90950-01289-04i197909-198108

BLUE,BLUE,TRIM8#

main90950-01289-05i198108-198307

BEIGE,BEIGE,TRIM4#

9046805011

main90468-05011

9353024010

main93530-24010

10 parts on this diagram · 1 diagram in section

FLOOR MAT for Toyota CROWN

This section contains 10 genuine Toyota parts for the FLOOR MAT system of the Toyota CROWN. Key components include: MAT & CARPET, MAT, FLOOR, FRONT, MAT, FLOOR, REAR, MAT, REAR FLOOR, SET PLATE, REAR FLOOR MAT, FRONT.
