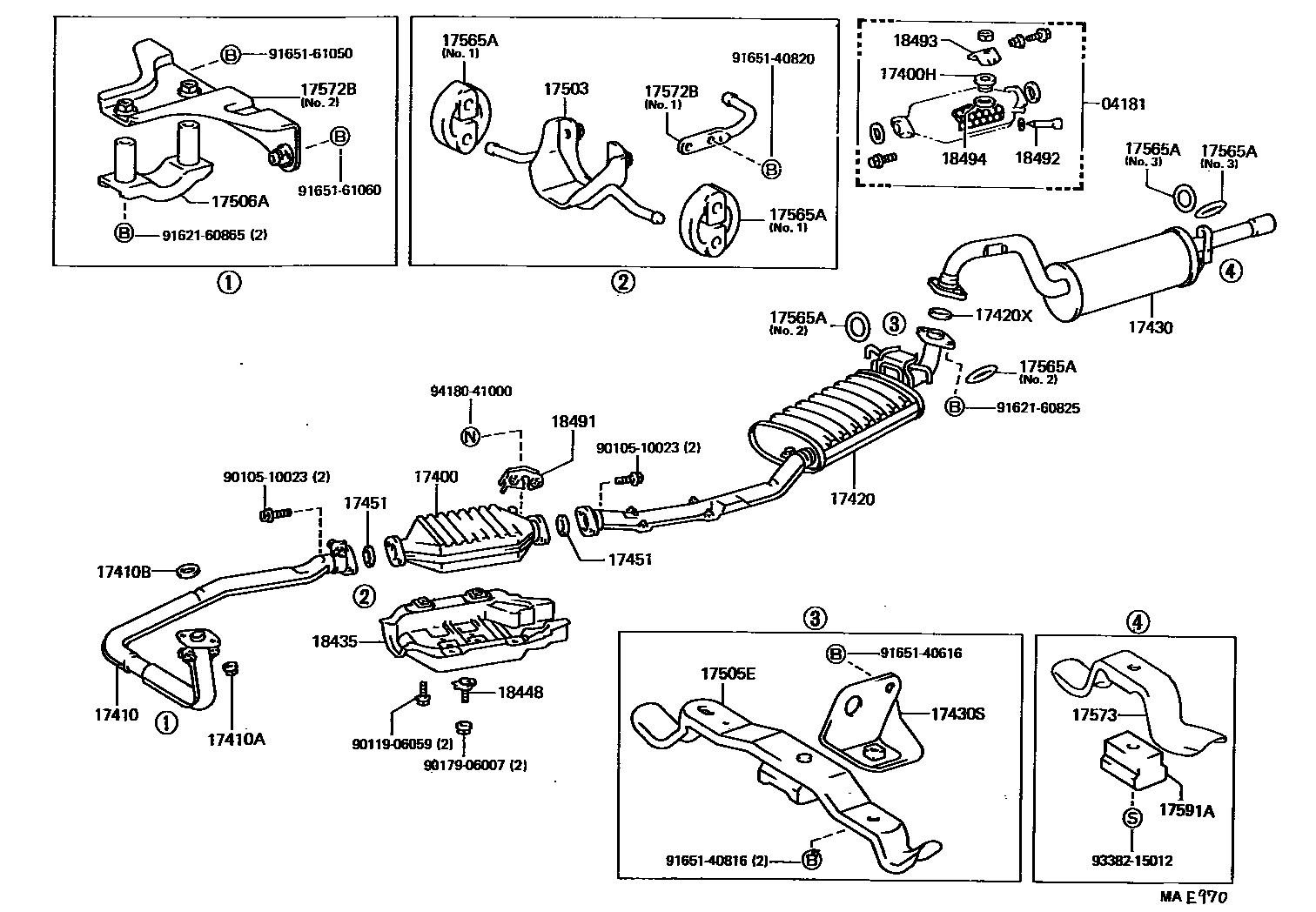

Toyota CROWN — EXHAUST PIPE
04181PELLET KIT
17400CONVERTER ASSY, W/CATALYST
17400HPLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
main90917-06012i1GE,1GFE..GS131;1GE,1GFE,1GGP,1GGZE,1JZGE,MP,3YP..GS130,JZS130,MS130,YS130198809-199012
17430PIPE ASSY, EXHAUST, TAIL
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17505INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505ESUPPORT SUB-ASSY, CATALYTIC CONVERTER
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-63060×3i1GE,1GFE,2LT#..GS131,LS131; 1GGZE,1GGE,1JZGE,7MGE..GS131,JZS131,MS135,137198809-199110
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
NO.1
main17572-54100×2i1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131198709-199110
NO.2
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
main17573-41040i1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,3YP#..GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED198709-199110
17591ASTOPPER, EXHAUST PIPE SUPPORT
main17591-36011i1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,3YP#..GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED198802-199110
18435PROTECTOR, CATALYTIC CONVERTER
main18407-42010i1GFE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,1UZFE..GS130,131,JZS13#,MS135,137,UZS131198801-199110
18448BRACKET, CONVERTER PROTECTOR, CENTER
main18448-43010×2i1GFE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,1UZFE..GS130,131,JZS13#,MS135,137,UZS131198709-199110
18491FLANGE, THERMOSENSOR INLET
main18491-63010i1GFE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,1UZFE..GS130,131,JZS13#,MS135,137,UZS131198709-199110
18492GUIDE, CATALYTIC CONVERTER SENSOR
18493PLATE, CATALYZER INLET PLUG LOCK
18494GASKET, CATALYZER INLET
9010510023
main90105-10023
9011906059
main90119-06059
9017906007
main90179-06007
9162160825
main91621-60825
9162160865
main91621-60865
9165140616
main91651-40616
9165140816
main91651-40816
9165140820
main91651-40820
9165161050
main91651-61050
9165161060
main91651-61060
9338215012
main93382-15012
9418041000
main94180-41000
37 parts on this diagram · 14 diagrams in section
EXHAUST PIPE for Toyota CROWN
This section contains 73 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CROWN. Key components include: PELLET KIT, CABLE SUB-ASSY, EXHAUST PIPE GAS CONTROL, CLAMP SUB-ASSY, EXHAUST PIPE GAS CONTROL CABLE, CONVERTER ASSY, W/CATALYST, PLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET).
