Toyota CROWN — EXHAUST GAS RECIRCULATION SYSTEM

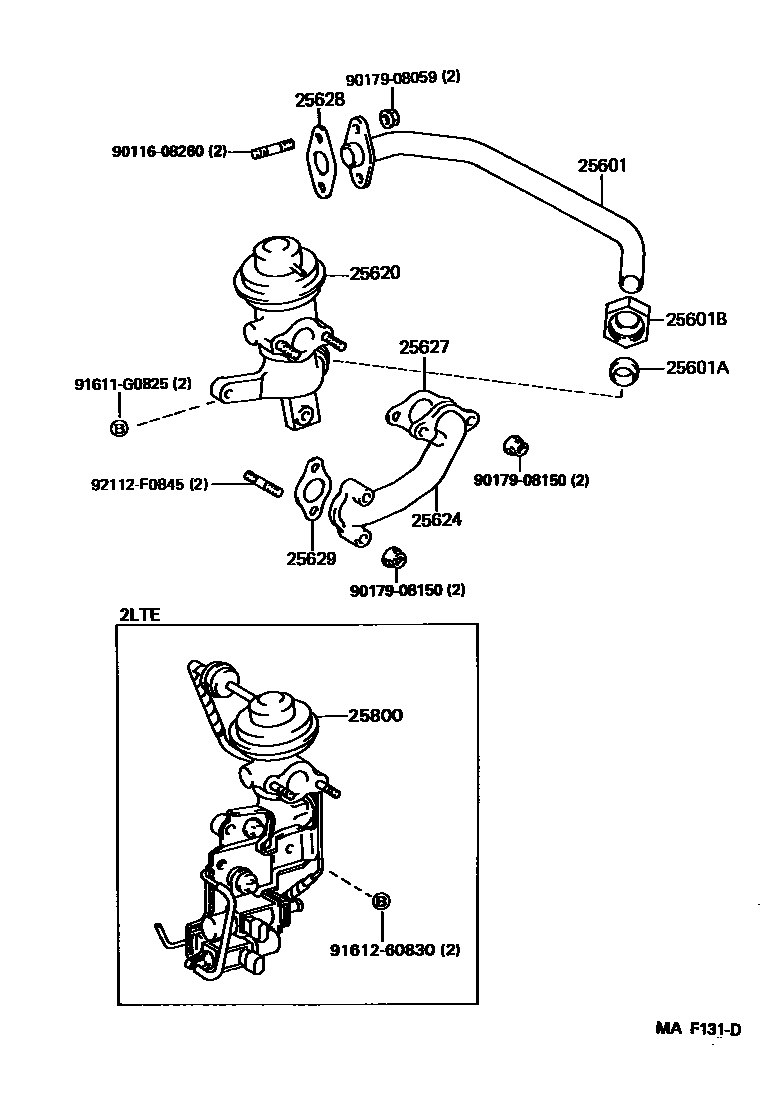

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54070i199110

main25611-73040i199112-199512

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i199112-199512

main90410-25001i199110

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073×2i199112-199512

main90402-33001i199110

25620VALVE ASSY, EGR

main25620-54090i199110-199308

main25620-73120i199112-199512

25624ADAPTER, EGR VALVE

main25607-72011i199308-199512

main25607-73020i199112-199308

main25624-54040i199110

25627GASKET, EGR VALVE

main25627-54011i199110

main25627-73010i199112-199512

25628GASKET, EGR INLET

main25628-54012i199110

25629GASKET, EGR VALVE ADAPTER

main25629-54011i199110

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54150i199308-199512

main25800-54170i199512

9011608260

main90116-08260

9017908059

main90179-08059

9017908150

main90179-08150

91611G0825

main91611-G0825

9161260830

main91612-60830

92112F0845

main92112-F0845

15 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CROWN

This section contains 21 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CROWN. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
