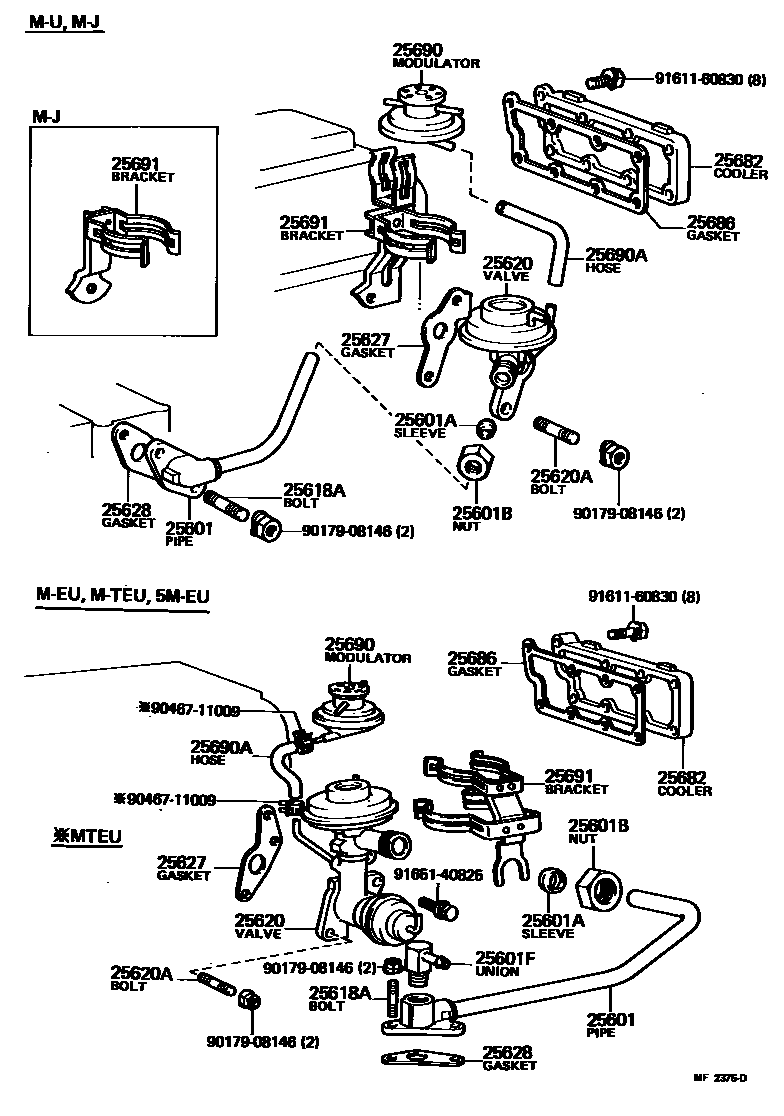

Toyota CROWN — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
25618ABOLT, STUD(FOR EGR INLET)
25620VALVE ASSY, EGR
25620ABOLT, STUD(FOR EGR VALVE)
L=34,S=16&11
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25682COOLER, EGR, NO.2
25686GASKET, EGR COOLER, NO.2
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9017908146
main90179-08146
9046711009
main90467-11009
9161160830
main91611-60830
9165140825
main91651-40825
18 parts on this diagram · 3 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota CROWN
This section contains 25 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CROWN. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), BOLT, STUD(FOR EGR INLET).
