Toyota CROWN — ENGINE OIL PUMP

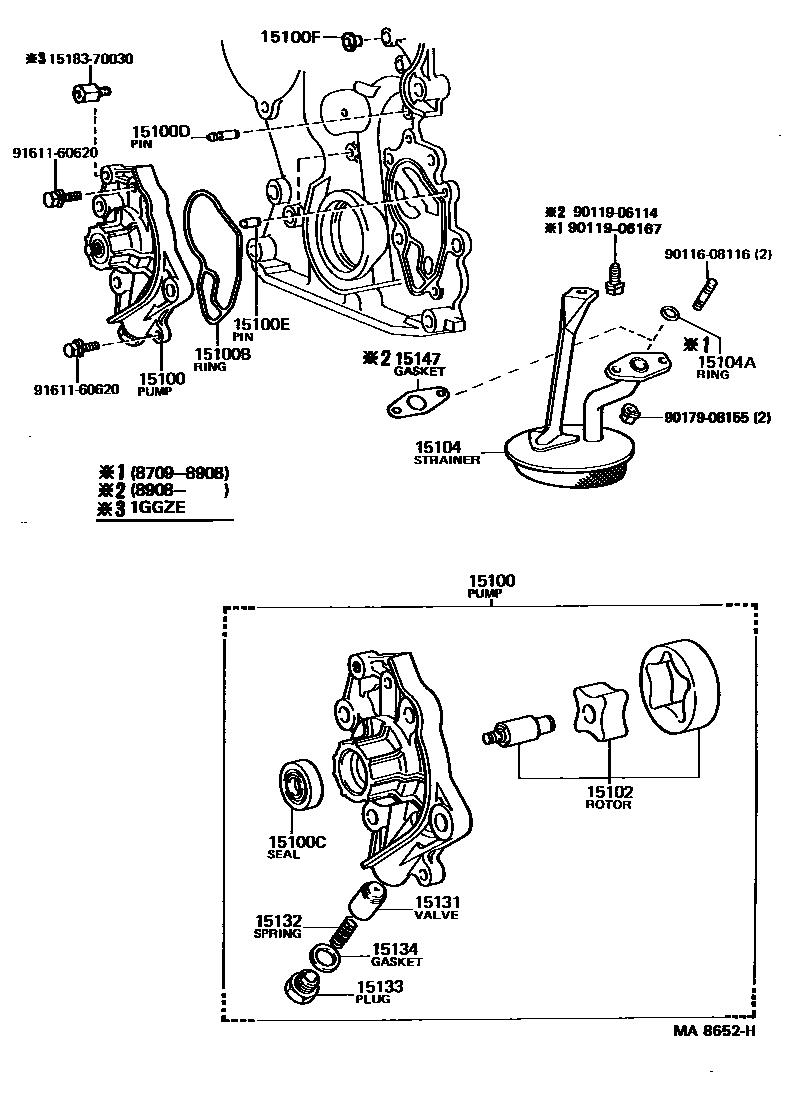

Parts diagram

15100PUMP ASSY, OIL

main15100-42050i198904-199110

main15100-43061i198709-198904

main15100-43070i198709-198908

main15100-46020i199008-199108

main15100-46040i199108-199110

main15100-50020i198908-199110

main15100-70011i198709-198908

main15100-70020i198709-199110

main15100-70030i198809-199110

main15100-70040i198908-199110

main15100-71010i198709-199110

main15100-88300i198709-199110

15100BRING, O(FOR OIL PUMP)

main15188-70010i198709-199110

main96721-24025i198908-199110

15100CSEAL(FOR OIL PUMP)

main15165-70010i198709-199110

main15165-70040i198908-199110

main90029-21005i198809-199110

main90311-43004i198908-199110

15100DPIN(FOR OIL PUMP SET)

main15182-70010i198709-199110

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×3i198709-199110

15100FBUSH (FOR OIL PUMP)

main90029-38300i198709-198908

main90029-38302i198908-198910

15102ROTOR SET, OIL PUMP

main15102-70011i198709-199110

main15102-70020i198709-199110

main15102-71010i198709-199110

main15102-88300i198709-199110

15104STRAINER SUB-ASSY, OIL

main15104-46020i199008-199110

main15104-50050i198908-199110

main15104-54033i198709-199110

main15104-70020i198808-198810

main15104-70060i198908-199110

15104ARING, O(FOR OIL STRAINER)

main96732-19020i198709-198808

15131VALVE, OIL PUMP RELIEF

main15131-24010i198709-199110

main15131-46020i199008-199108

main15131-46040i199108-199110

main15131-54010i198908-199110

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i198709-199110

main15132-46010i198709-199110

main15132-46020i199008-199110

main15132-54010i198908-199110

main15132-62010i198908-199110

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i199008-199110

main15133-20010i198709-199110

main15133-24010i198709-199110

main15133-54010i198908-199110

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i199108-199110

main15134-20010i198709-199110

main15134-46020i199008-199108

main15134-70030i198809-199110

15147GASKET, OIL STRAINER

main15147-46010i199008-199110

main15147-50010i198908-199110

main15147-70020i198809-198812

main15147-70021i199009-199110

1518370030BOLT, UNION(FOR OIL PUMP)

main15183-70030

9011608116

main90116-08116

9011906114

main90119-06114

9011906167

main90119-06167

9017908155

main90179-08155

9161160620

main91611-60620

20 parts on this diagram · 8 diagrams in section

ENGINE OIL PUMP for Toyota CROWN

This section contains 67 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota CROWN. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP).
