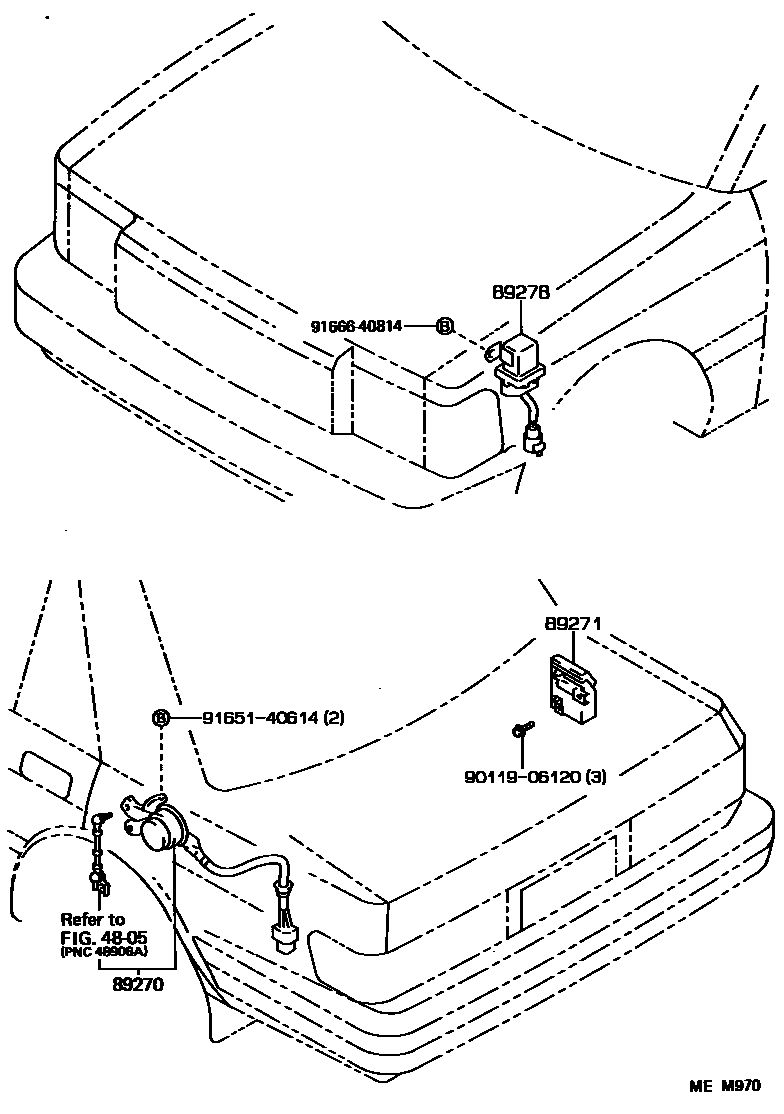

Toyota CROWN — ELECTRONIC HEIGHT CONTROL

4805

89270SENSOR ASSY, HEIGHT CONTROL

main89270-30030iGS131..ROY..SPC;JZS131,MS135..ROY198709-199110

89271COMPUTER, HEIGHT CONTROL

main89271-30040iGS131..ROY..SPC;JZS131,MS135..ROY198709-199110

89278RELAY, HEIGHT CONTROL

main89278-30020iMS135..ROY;GS131..ROY..SPC198709-199004

main89278-30021iGS131..ROY..SPC;JZS131,MS135..ROY199004-199110

9011906120

main90119-06120

9165140614

main91651-40614

9166640814

main91666-40814

7 parts on this diagram · 1 diagram in section
