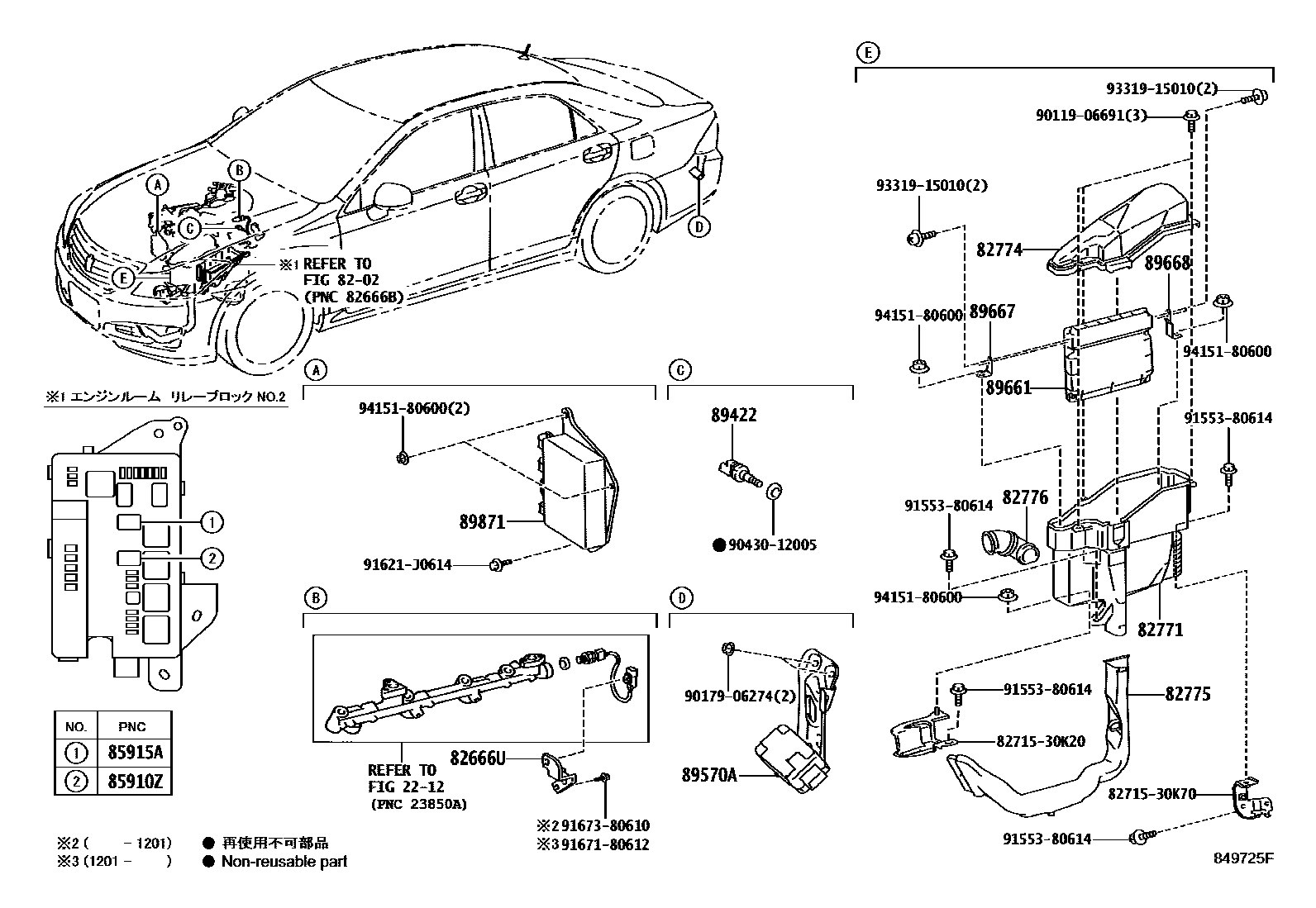

Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM
2212
8202WIRING & CLAMP
82666UHOLDER, CONNECTOR
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ZRELAY, INJECTION (FOR EFI)
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
8271530K20BRACKET,WIRING HARNESS CLAMP
main82715-30K20
8271530K70BRACKET,WIRING HARNESS CLAMP
main82715-30K70
9011906691
main90119-06691
9017906274
main90179-06274
9043012005
main90430-12005
9155380614
main91553-80614
91621J0614
main91621-J0614
9167180612
main91671-80612
9167380610
main91673-80610
9331915010
main93319-15010
9415180600
main94151-80600
26 parts on this diagram · 2 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN
This section contains 32 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: RELAY, FUEL RELIEF VALVE, RELAY ASSY, FUEL PUMP, WIRING & CLAMP, HOLDER, CONNECTOR.
