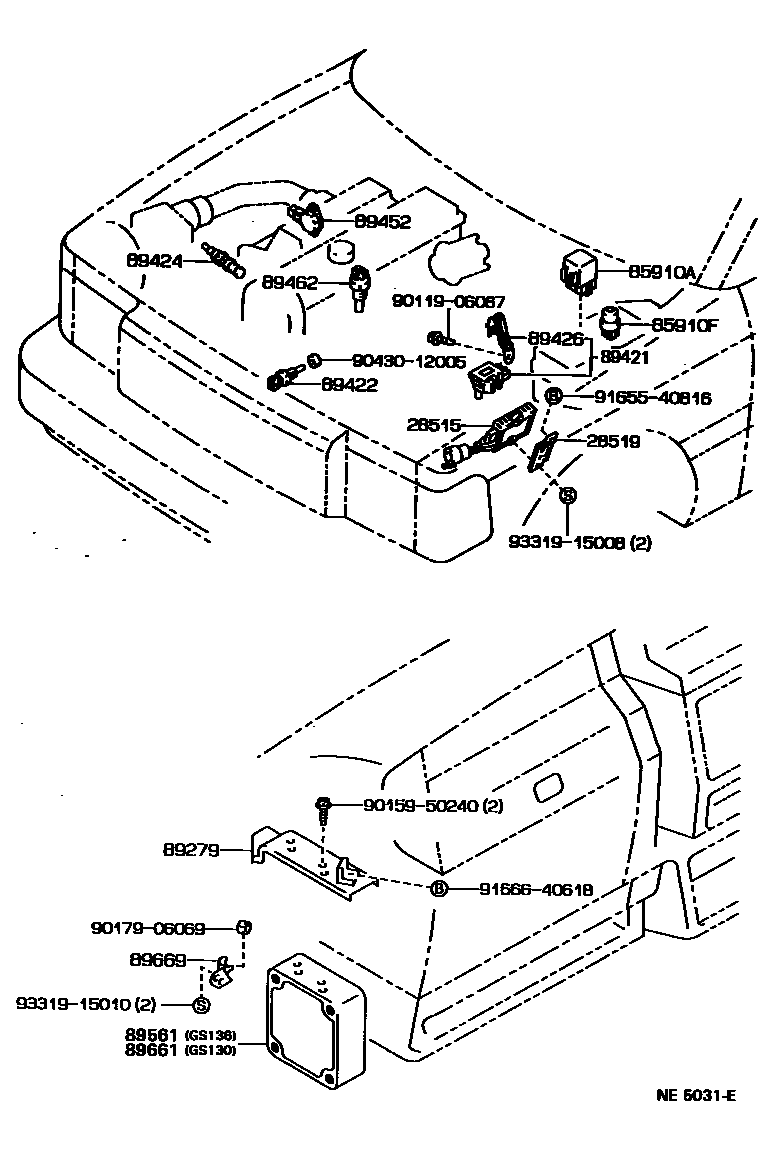

Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89426BRACKET, VACUUM SENSOR
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89561COMPUTER, FUEL INJECTION
89661COMPUTER, ENGINE CONTROL
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9011906067
main90119-06067
9015950240
main90159-50240
9017906069
main90179-06069
9043012005
main90430-12005
9165540816
main91655-40816
9166640618
main91666-40618
9331915008
main93319-15008
9331915010
main93319-15010
22 parts on this diagram · 7 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN
This section contains 25 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: RELAY ASSY, FUEL PUMP, RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI).
