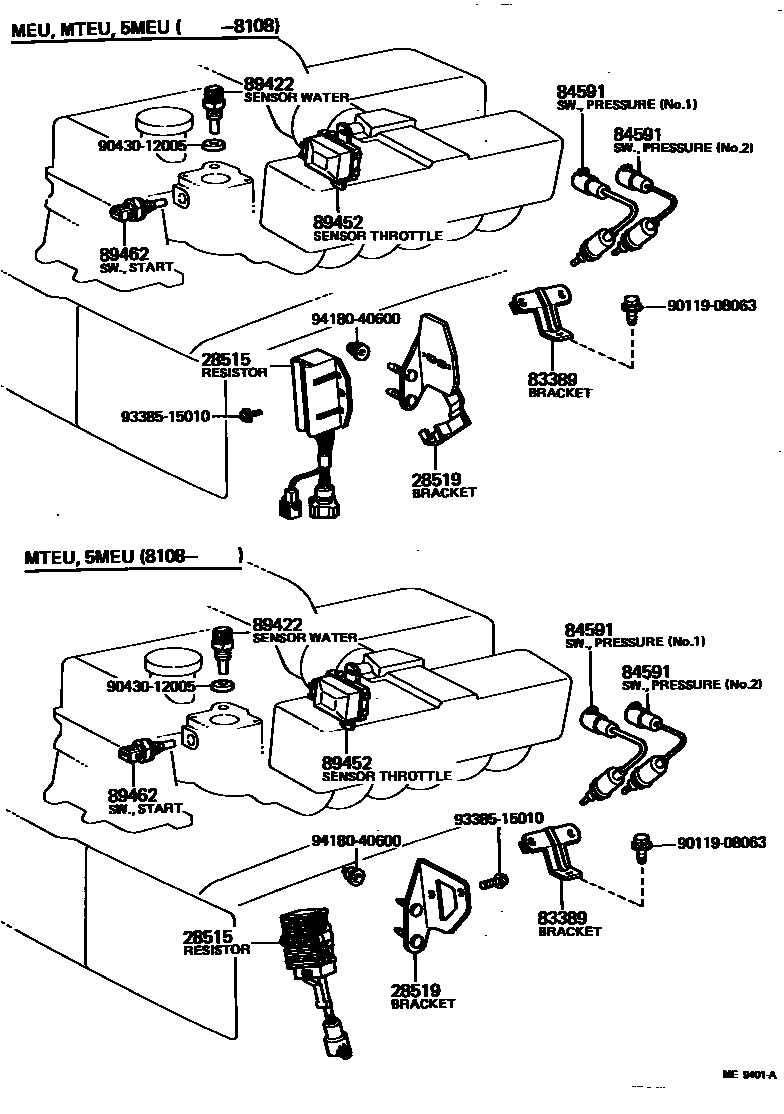

Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-41010i197909-198108

main28515-70010i198108-198307

28519BRACKET, SOLENOID RESISTOR

main28519-30020i198108-198307

main28519-41020i197909-198108

main28519-43030i198108-198307

83389BRACKET, PRESSURE SWITCH

main83389-30010i198010-198307

84591SWITCH, PRESSURE

main83381-30010i198010-198307

NO.1

main83381-30020i198010-198108

NO.2

main83381-30021i198108-198307

NO.2

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020i197909-198307

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22010i197909-198307

main89452-30040i198108-198307

89462SWITCH, START INJECTOR TIME

main89462-30011i197909-198307

main89462-40010i198108-198307

9011908063

main90119-08063

9043012005

main90430-12005

9338515010

main93385-15010

9418040600

main94180-40600

11 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN

This section contains 24 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, BRACKET, PRESSURE SWITCH, SWITCH, VACUUM, BRACKET, VACUUM SWITCH.
