Toyota CROWN — ELECTRONIC CONTROLLED TRANSMISSION

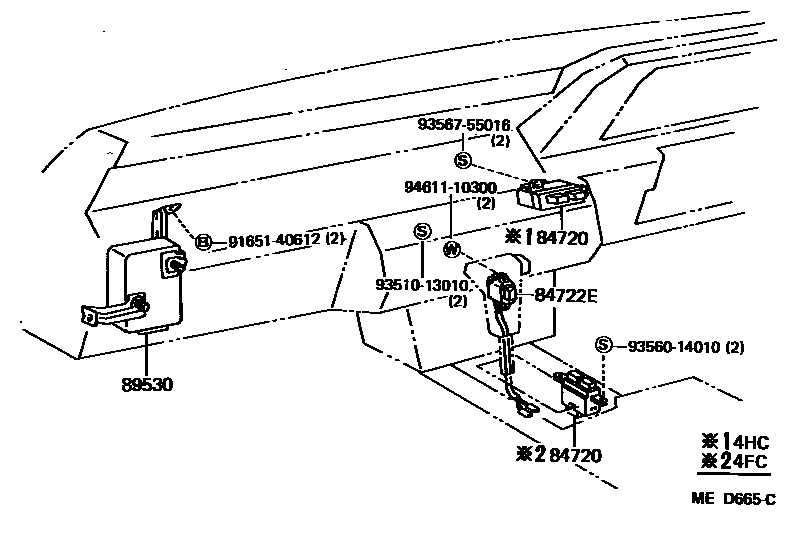

Parts diagram

84720SWITCH ASSY, PATTERN SELECT

main84720-30050i198308-198708

main84720-30070i198308-198708

84722ESWITCH, TRANSMISSION CONTROL

main84722-14070-02i198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main84722-14070-04i198308-198708

BLUE,BLUE,TRIM8#

main84722-14070-05i198308-198509

BEIGE,BEIGE,TRIM4#

main84722-14070-12i198509-198708

MAROON,MAROON,TRIM3#

main84722-14070-16i198509-198708

BROWN,BROWN,TRIM4#

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-30110i198308-198405

main89530-30111i198405-198408

main89530-30112i198408-198509

main89530-30130i198308-198405

main89530-30131i198405-198408

main89530-30132i198408-198509

main89530-30160i198408-198708

DENSO

main89530-30170i198408-198708

AISIN

main89530-30250i198509-198708

main89530-30270i198509-198708

9165140612

main91651-40612

9351013010

main93510-13010

9356014010

main93560-14010

9356755016

main93567-55016

9461110300

main94611-10300

8 parts on this diagram · 2 diagrams in section

ELECTRONIC CONTROLLED TRANSMISSION for Toyota CROWN

This section contains 28 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CROWN. Key components include: WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL, SOLENOID ASSY, TRANSMISSION, RING, O (FOR TRANSMISSION SOLENOID).
