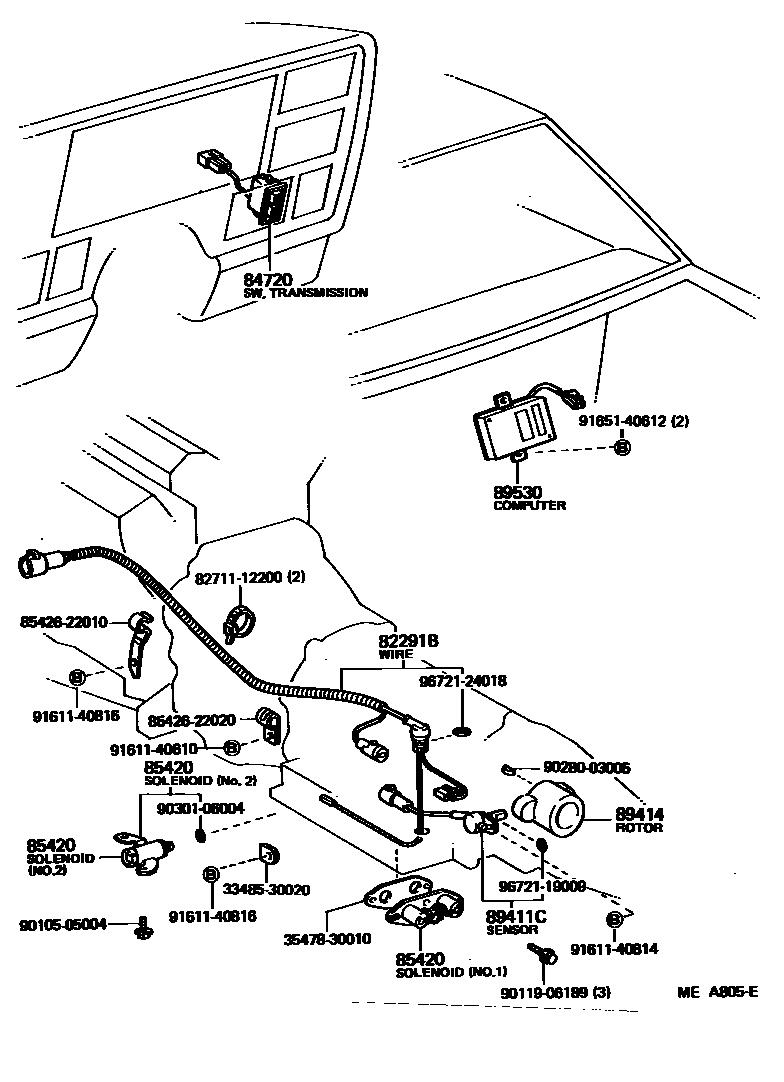

Toyota CROWN — ELECTRONIC CONTROLLED TRANSMISSION
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
84720SWITCH ASSY, PATTERN SELECT
TOKAIRIKA
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
89414ROTOR, SENSOR
89530COMPUTER ASSY, TRANSMISSION CONTROL
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
3547830010GASKET, ACCUMULATOR COVER
main35478-30010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8542622010CLAMP, OVER DRIVE SOLENOID
main85426-22010
8542622020CLAMP, OVER DRIVE SOLENOID
main85426-22020
9010505004
main90105-05004
9011906189
main90119-06189
9028003005
main90280-03005
9030106004
main90301-06004
9161140610
main91611-40610
9161140814
main91611-40814
9161140816
main91611-40816
9165140612
main91651-40612
9672119009
main96721-19009
9672124018
main96721-24018
21 parts on this diagram · 1 diagram in section
ELECTRONIC CONTROLLED TRANSMISSION for Toyota CROWN
This section contains 21 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CROWN. Key components include: WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SOLENOID ASSY, TRANSMISSION, SENSOR, SPEED, ROTOR, SENSOR.
