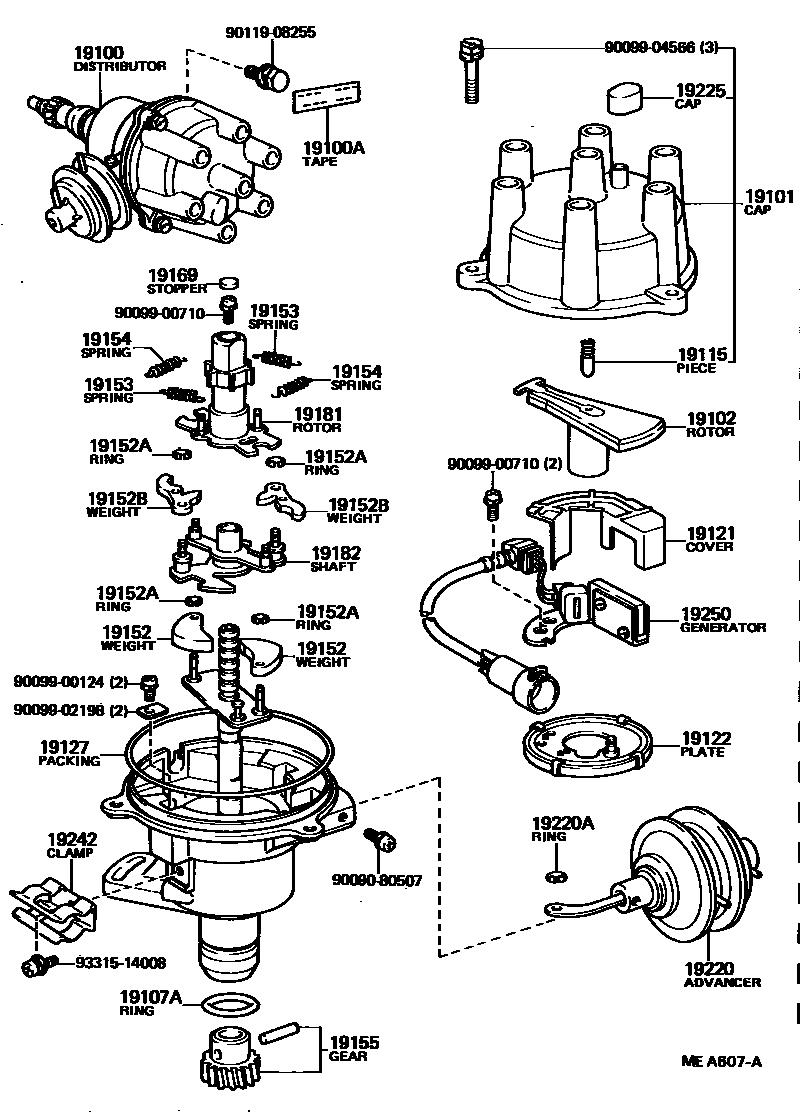

Toyota CROWN — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19100DISTRIBUTOR ASSY

main19100-41200iMU..MS110..CBR197909-198307

main19100-41210iMJ..MS117197909-198208

main19100-41220iMU..MS110..LPG197912-198307

main19100-41230iMEU..MS110197909-198108

main19100-41250iMTEU..MS110198010-198307

main19100-43010i5MEU..MS112197909-198307

main19100-43110i5MGEU..MS112198108-198307

main19100-44190i5RU..RS110197909-198108

main19100-44230i5RU..RS110198108-198307

main19100-70030i1GE#..GS11#198108-198307

19100ATAPE, SEALING

main90919-24004i5RU..RS110197909-198307

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i5RU..RS110197909-198108

main19101-27050i5RU..RS110198108-198208

main19101-27051i5RU..RS110198208-198307

main19101-41010iMJ..MS117197909-198208

main19101-41140iMEU,5MEU,MU..MS110,112..CBR,EFI197909-198307

main19101-41250iMTEU..MS110198010-198307

main19101-43060i5MGEU..MS112198108-198307

sub19101-70011

main19101-45191iMU..MS110..LPG197912-198307

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-15021i5RU..RS110198108-198307

sub19102-38210

main19102-31030i5RU..RS110197909-198108

main19102-41220iMU..MS110..LPG197912-198307

sub19102-45191

main19102-41250iMTEU..MS110198010-198307

main19102-43110i5MGEU..MS112198108-198307

main19102-45060iMEU,5MEU,MU..MS110,112..CBR,EFI197909-198307

main19102-61030iMJ..MS117197909-198208

main19102-70010i1GE#..GS11#198108-198307

sub19102-43060

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i1GE#..GS11#197909-198307

sub90099-14088

main90099-14020i5RU..RS110197909-198307

sub90099-14090

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i5RU..RS110197909-198307

19121COVER, DUST PROOF

main19121-27020iMEU,5MEU,MTEU,MU..MS110,112197909-198307

main19121-30030iMJ..MS117197909-198208

main19121-38040i5RU..RS110197909-198007

main19121-38210i5RU..RS110198007-198307

GENERATOR

main19121-44170i5RU..RS110198007-198307

HOUSING

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-39041iMJ..MS117197909-198208

main19122-45070i5RU..RS110197909-198108

main19122-88262i1GE#..GS11#198010-198307

19127PACKING, DUST PROOF

main19127-15021i5RU..RS110198108-198307

main19127-41141iMEU,5MEU,MU..MS110,112..CBR,EFI197909-198307

main19127-45190iMU..MS110..LPG197912-198307

main19127-52020i5MGEU..MS112198108-198307

sub19127-61240

main19127-88251i5RU..RS110197909-198108

19152WEIGHT, GOVERNOR

main19152-32010×2iMJ..MS117197909-198208

sub19152-87104

main19152-44170×2i5RU..RS110198007-198307

main19152-45060×2iMEU,5MEU,MTEU,MU..MS110,112197909-198307

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07104×2iMEU,5MEU,MU..MS110,112197909-197910

main90099-07109×4i1GE#..GS11#197910-198307

19152BWEIGHT, GOVERNOR, NO.2

main19152-43060×2i1GE#..GS11#198108-198307

19153SPRING, GOVERNOR, A

main19153-23020iMJ..MS117197909-198208

main19153-41200iMU..MS110..CBR197909-198307

main19153-41220iMU..MS110..LPG197912-198307

main19153-41230iMEU..MS110197909-198108

main19153-41250iMTEU..MS110198010-198307

main19153-43010i5MEU..MS112197909-198307

main19153-44150i5RU..RS110197909-198108

main19153-44230i5RU..RS110198108-198307

main19153-70030×2i1GE#..GS11#198108-198307

19154SPRING, GOVERNOR, B

main19153-44150i5RU..RS110197909-198108

main19153-44230i5RU..RS110198108-198307

main19153-70031×2i1GE#..GS11#198108-198307

main19154-41120iMJ..MS117197909-198208

main19154-41200iMU..MS110..CBR197909-198307

main19154-41220iMU..MS110..LPG197912-198307

main19154-41230iMEU..MS110197909-198108

main19154-41250iMTEU..MS110198010-198307

main19154-43010i5MEU..MS112197909-198307

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-33011i5RU..RS110197909-198307

main19195-41010iMJ..MS117197909-198208

main19195-41130iMEU,5MEU,MU..MS110,112..CBR,EFI197909-198307

main19195-43060i5MGEU..MS112198108-198307

main19195-45190iMTEU,MU..MS110..LPG,TBO197912-198307

main19195-70010i1GE#..GS11#198108-198307

19169STOPPER, CAM GREASE

main19169-32010i5RU..RS110197909-198307

sub19169-63011

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-41160iMU..MS110..CBR197909-198307

main19181-41220iMU..MS110..LPG197912-198307

main19181-41250iMTEU..MS110198010-198307

main19181-43010i5MEU..MS112197909-198307

main19181-44230i5RU..RS110198108-198307

main19181-61100iMEU..MS110197909-198108

main19181-70030i1GE#..GS11#198108-198307

main19181-88251i5RU..RS110197909-198108

19182SHAFT, DISTRIBUTOR, DRIVING

main19182-70030i1GE#..GS11#198108-198307

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-41202iMU..MS110..CBR197909-198307

main19220-41210iMJ..MS117197909-198208

main19220-41220iMU..MS110..LPG197912-198307

main19220-41230iMEU..MS110197909-198208

main19220-41250iMTEU..MS110198010-198307

main19220-43010i5MEU..MS112197909-198307

main19220-44190i5RU..RS110197909-198108

main19220-44230i5RU..RS110198108-198307

main19220-70030i1GE#..GS11#198108-198307

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07104iMJ..MS117197909-198208

main90099-07109i5RU..RS110198010-198307

19225CAP, RUBBER

main19225-25070i5RU..RS110197909-198108

main19225-41140iMTEU,MU..MS110..LPG,TBO197912-198307

19242CLAMP, CORD

main19242-26231i5RU..RS110197909-198108

main19242-45190iMU..MS110..LPG197912-198307

main19242-61102iMTEU..MS110198010-198307

main19242-70031i1GE#..GS11#198108-198307

main19242-88272i5RU..RS110198108-198307

main90929-01013i5MGEU..MS112198108-198307

19250GENERATOR ASSY, SIGNAL

main19250-26260i5RU..RS110197909-198108

main19250-41250iMTEU..MS110198010-198307

main19250-44230i5RU..RS110198108-198307

main19250-45150iMEU,5MEU,MU..MS110,112..CBR,EFI197909-198307

main19250-45190iMU..MS110..LPG197912-198307

main19250-70031i1GE#..GS11#198108-198307

sub19250-70040

9009080507

main90090-80507

9009900124

main90099-00124

9009900710

main90099-00710

9009902198

main90099-02198

9009904566

main90099-04566

9011908255

main90119-08255

9331514008

main93315-14008

30 parts on this diagram · 8 diagrams in section
