Toyota CROWN — CRANKSHAFT & PISTON

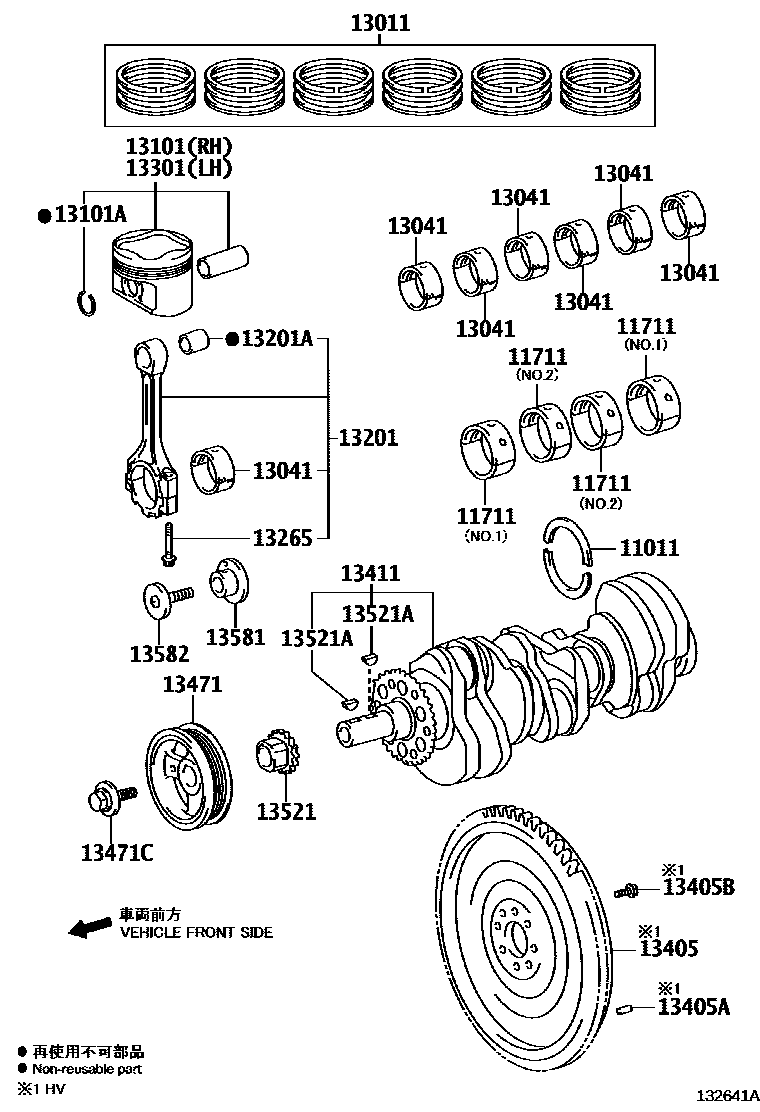

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-31060i200802-201002

11711BEARING, CRANKSHAFT

main11071-31031-01×2i201002-201212

main11071-31031-02×2i201002-201212

main11071-31031-03×2i200802-201002

main11071-31031-04×2i200802-201002

main11071-31031-05×2i201002-201212

main11071-31040-01×2i200802-201002

main11071-31040-02×2i201002-201212

main11071-31040-03×2i201002-201212

main11071-31040-04×2i201002-201212

main11071-31040-05×2i201002-201212

main11701-31061-01×2i200802-201002

main11701-31061-02×2i200802-201002

main11701-31061-03×2i201002-201212

main11701-31061-04×2i200802-201002

main11701-31061-05×2i201002-201212

main11701-31070-01×2i201002-201212

main11701-31070-02×2i201002-201212

main11701-31070-03×2i200802-201002

main11701-31070-04×2i200802-201002

main11701-31070-05×2i201002-201212

13011RING SET, PISTON

main13011-31120i200802-200909

main13011-31121i200909-201002

main13011-31122i201206-201209

main13011-31140i201002-201201

main13011-31141i201201-201212

main13011-31170i201002-201212

main13011-31220i201209-201212

13041BEARING, CONNECTING ROD

main13041-31051-01×6i200802-201002

main13041-31051-02×6i200802-201002

main13041-31051-03×6i200802-201002

main13041-31051-04×6i200802-201002

main13041-31060-01×6i200802-201002

main13041-31060-02×6i200802-201002

main13041-31060-03×6i200802-201002

main13041-31060-04×6i201002-201212

main13041-31080-01×6i200802-201002

main13041-31080-02×6i201002-201212

main13041-31080-03×6i200802-201002

main13041-31080-04×6i200802-201002

13101PISTON SUB-ASSY, W/PIN

main13101-31040-A0×3i201002-201212

main13101-31040-B0×3i201002-201212

main13101-31040-C0×3i201002-201212

main13101-31050-A0×3i200802-201002

main13101-31050-B0×3i200802-201002

main13101-31050-C0×3i201002-201212

main13101-31060-A0×3i200802-201002

main13101-31060-B0×3i201002-201110

main13101-31060-C0×3i200802-201002

main13101-31061-A0×3i201110-201212

main13101-31061-B0×3i201110-201212

main13101-31061-C0×3i201110-201212

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×12i200802-201002

13201ROD SUB-ASSY, CONNECTING

main13201-39066×6i200802-201002

main13201-39066-A0×6i201005-201212

main13201-39066-B0×6i201005-201212

main13201-39066-C0×6i201005-201212

main13201-39095×6i200802-201002

main13201-39095-A0×6i201005-201212

main13201-39095-B0×6i201005-201212

main13201-39095-C0×6i201005-201212

main13201-39166×6i200802-201002

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144×6i200802-201002

13265BOLT, CONNECTING ROD

main13265-28010×12i200802-201002

main13265-31020×12i201002-201212

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31010×3i200802-201002

main13301-31010-A0×3i201002-201212

main13301-31010-B0×3i201002-201212

main13301-31010-C0×3i201002-201212

main13301-31020×3i200802-201002

main13301-31020-A0×3i201002-201212

main13301-31020-B0×3i201002-201212

main13301-31020-C0×3i201002-201212

main13301-31030×3i200802-201002

main13301-31030-A0×3i201002-201110

main13301-31030-B0×3i201002-201110

main13301-31030-C0×3i201002-201110

main13301-31031-A0×3i201110-201212

main13301-31031-B0×3i201110-201212

main13301-31031-C0×3i201110-201212

13405FLYWHEEL SUB-ASSY

main13405-31100i200805-201002

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200805-201002

13405BBOLT, FLYWHEEL SETTING

main90105-10048×8i200805-201002

13411CRANKSHAFT

main13401-31020i201002-201212

main13401-31030i200802-201002

main13401-31050i201002-201212

13471PULLEY, CRANKSHAFT

main13470-31021i200802-201002

main13470-31030i200802-201002

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i200802-201002

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31041i201002-201212

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i200802-201002

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i200802-201002

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i200802-201002

20 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota CROWN

This section contains 20 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota CROWN. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
