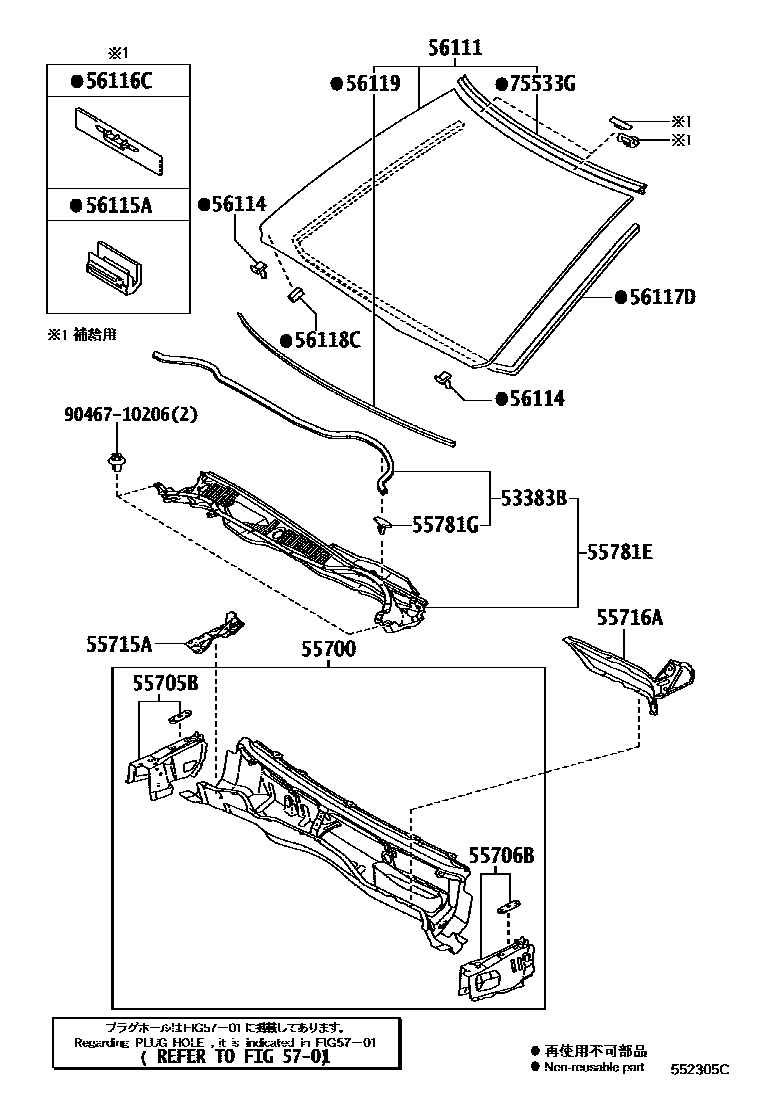

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119SEAL, WINDSHIELD GLASS
5701HOLE PLUG
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
18 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CROWN
This section contains 18 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN. Key components include: SEAL, HOOD TO COWL TOP, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
