Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

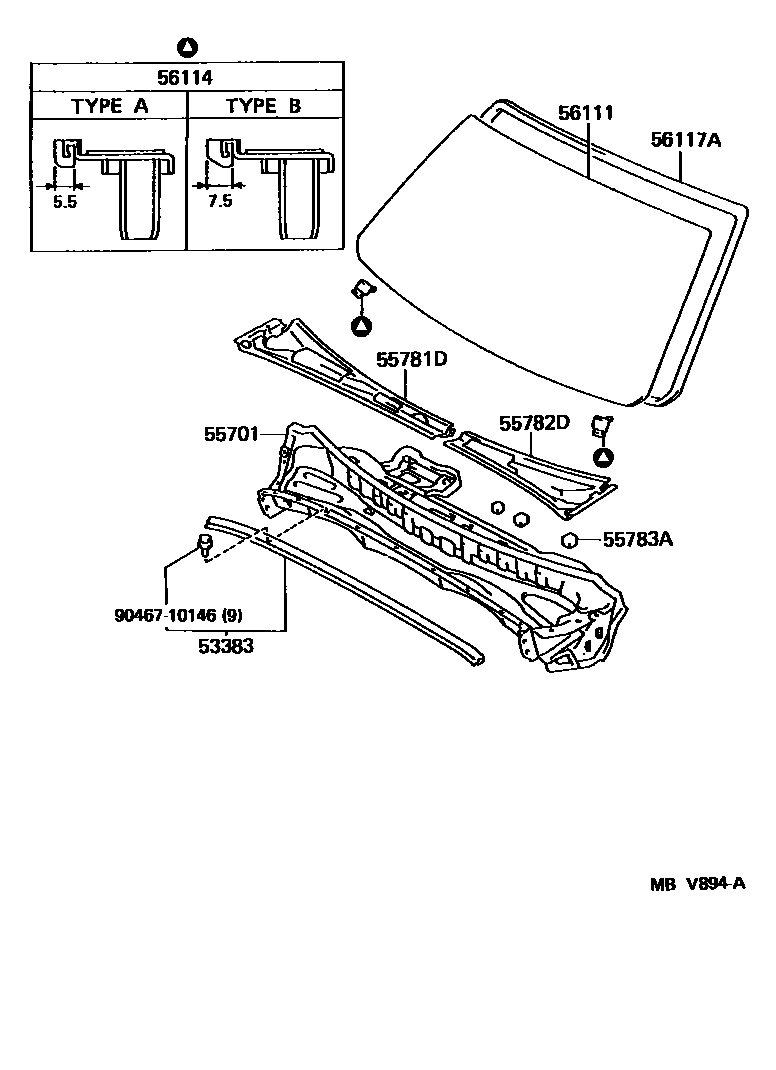

Parts diagram

53383SEAL, HOOD TO COWL TOP

main53383-30110i199110-199112

55701PANEL SUB-ASSY, COWL

main55700-30341i199110-199308

main55700-30342i199308-199704

main55700-30480i199512-199704

main55700-30481i199110-199704

main55700-30530i199512-199704

main55700-30660i199110-199512

main55700-30670i199110-199308

main55700-30671i199308-199512

main55700-30700i199309-199512

main55700-30710i199308-199309

main55700-30880i199704

main55700-3A020i199704

main55700-3A050i199704

main55700-3A060i199704

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30081i199110-199112

main55781-30101i199112

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30041i199112

main55782-30061i199112

55783APAD, COWL TOP SILENCER

main55783-30020×6i199110-199112

56111GLASS, WINDSHIELD

main56111-30870i199110-199308

main56111-30880i199110-199509

main56111-30881i199509-199512

main56111-31010i199110-199308

main56111-31020i199110-199904

main56111-31030i199110-199512

main56111-31040i199110-199512

main56111-31050i199110-199308

main56111-31060i199110-199509

main56111-31061i199509-199512

main56111-31070i199110-199509

main56111-31071i199509-199512

main56111-31080i199110-199509

main56111-31081i199509-199904

main56111-31090i199512-199904

main56111-31100i199512-199904

main56111-31120i199512-199904

main56111-31130i199512-199904

main56111-3A010i199110-199509

main56111-3A011i199509-199512

main56111-3A020i199110-199509

main56111-3A021i199509-199512

main56111-3A030i199110-199509

main56111-3A031i199509-199512

main56111-3A040i199110-199112

main56111-3A050i199110-199512

main56111-3A060i199110-199512

main56111-3A070i199110-199512

main56111-3A080i199112-199512

main56111-3A090i199308-199512

main56111-3A100i199110-199512

main56111-3A150i199110-199509

main56111-3A151i199509-199512

main56111-3A160i199110-199509

main56111-3A161i199509-199512

56114RETAINER, WINDSHIELD GLASS

main56114-30070×2i199110-199112

main56114-30080×2i199110-199112

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30200i199110-199112

9046710146

main90467-10146

9 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CROWN

This section contains 9 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, LOUVER, COWL TOP VENTILATOR, RH, LOUVER, COWL TOP VENTILATOR, LH, PAD, COWL TOP SILENCER.
