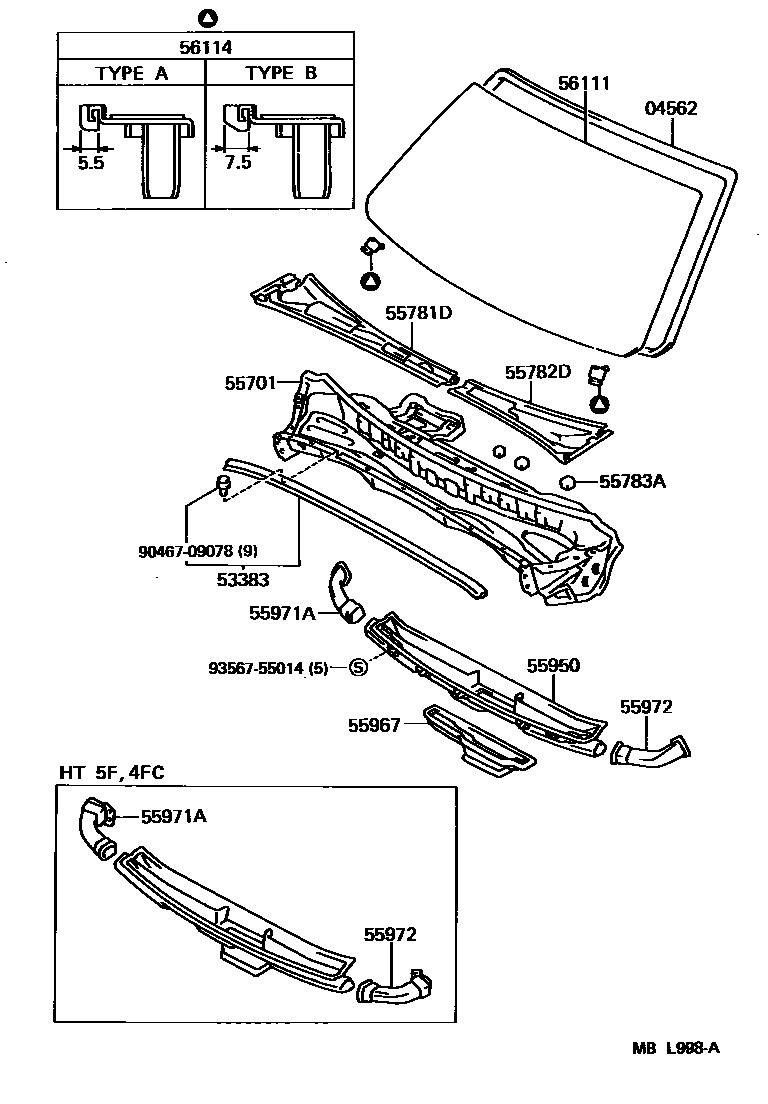

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
main55700-30480iMS137,UZS131,YS130..4H,4HC,5F;GS130,131,JZS13#,MS135..ROY,SAL,SALEX,SSL198908-199110
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783APAD, COWL TOP SILENCER
55950NOZZLE ASSY, DEFROSTER
main55951-30100iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110
55967NOZZLE, DEFROSTER, LOWER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
main55971-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
main55972-30050iGS131,JZS131,MS135,137,UZS131..4HC;GS130,136,JZS130,LS13#,MS130,YS130..SED,V,WG;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F)198709-199110
56111GLASS, WINDSHIELD
main56111-30600iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX); GS130,MS130..SDX..(LPG,TWLPG)198709-199110
main56111-30610iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX)198709-199110
56114RETAINER, WINDSHIELD GLASS
9046709078
main90467-09078
9356755014
main93567-55014
14 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CROWN
This section contains 14 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, LOUVER, COWL TOP VENTILATOR, RH, LOUVER, COWL TOP VENTILATOR, LH.
