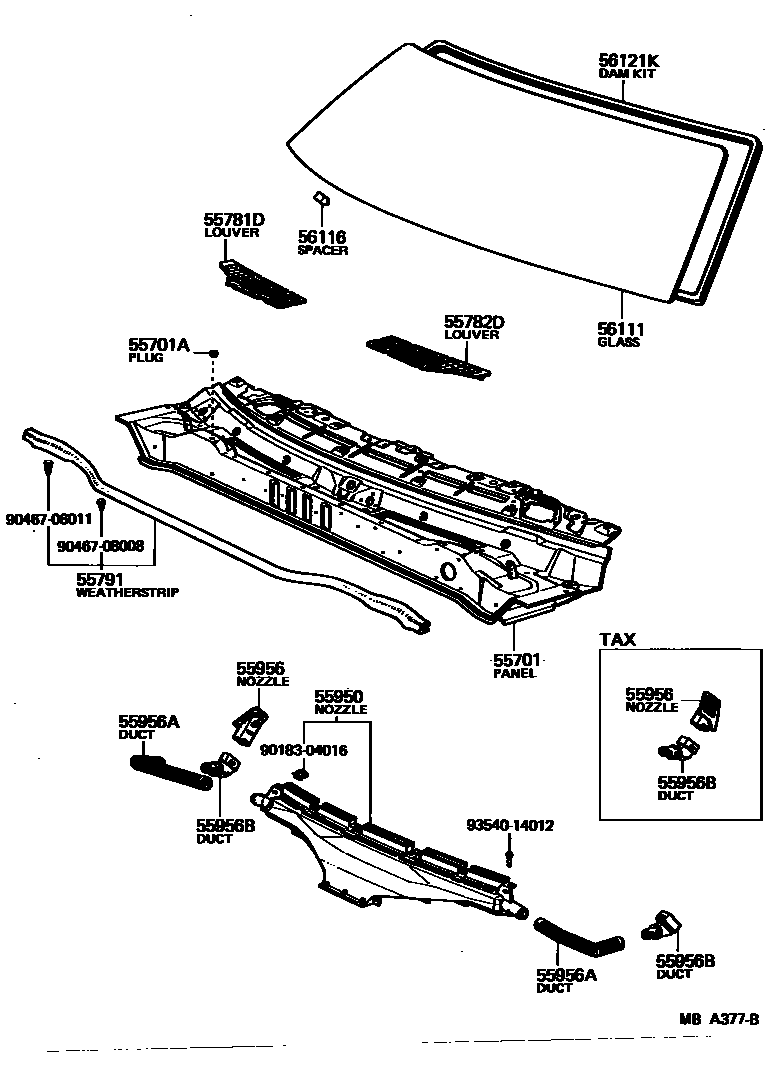

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS
55701PANEL SUB-ASSY, COWL
55701APLUG, HOLE(FOR COWL PANEL)
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55791WEATHERSTRIP, HOOD TO COWL TOP
55950NOZZLE ASSY, DEFROSTER
55956NOZZLE, SIDE DEFROSTER
RH,BLACK,BLACK,TRIM1#,4#
RH,DARK WINE,RED/MAROON,TRIM3#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
RH,GREIGE,BEIGE,TRIM4#
RH,BEIGE,BEIGE,TRIM4#
LH,BLACK,BLACK,TRIM1#,4#
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
main55972-30010iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD; LS110,RS110..TAX197909-198307
RH
LH
56111GLASS, WINDSHIELD
*TEM,T=5.0
*TL,T=5.3
*TL,T=5.3,SUN SHADE
*TL,T=5.3
*TL,T=5.3,SUN SHADE
ECLAIR,*TL,T=5.3,BRONZE
56116SPACER, WINDSHIELD GLASS
56121KDAM KIT, WINDSHIELD GLASS
9018304016
main90183-04016
9046706011
main90467-06011
9046708008
main90467-08008
9354014012
main93540-14012
16 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CROWN
This section contains 16 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN. Key components include: PANEL SUB-ASSY, COWL, PLUG, HOLE(FOR COWL PANEL), LOUVER, COWL TOP VENTILATOR, RH, LOUVER, COWL TOP VENTILATOR, LH, WEATHERSTRIP, HOOD TO COWL TOP.
