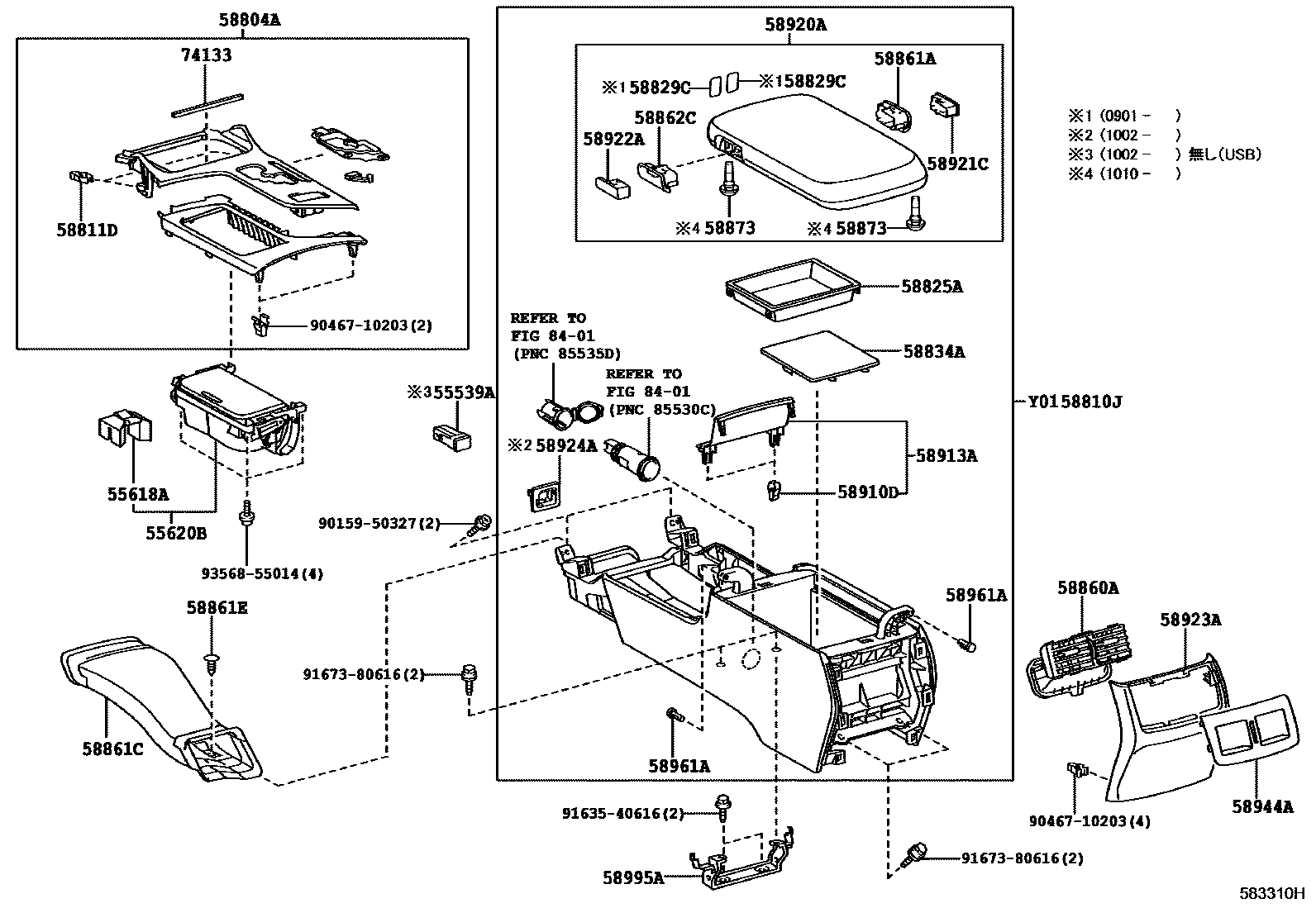

Toyota CROWN — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

55618AHOLDER, CONSOLE BOX CUP

main55618-30040iGRS20#,GWS204200802-201002

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-30170-E0iGRS200,201,202,203..ROY,ROYG200802-201002

DK.BROWN,TRIM0#,1#

main55620-30180-C0iGRS200,201,204..ATH200802-201002

BLACK,TRIM1#,4#

main55620-30190-B0iGWS204200805-201002

GRAY,TRIM0#,1#,4#

main55620-30240-C0iGRS200,201..ATH201002-201111

BLACK,TRIM1#,4#

main55620-30240-E0iGRS200,201,202,203..ROY..CBU201002-201111

DK. BROWN,TRIM0#,1#

main55620-30240-E1iGRS200,201,202,203..ROY..CBU201111-201212

BROWN,TRIM01

main55620-30220-E0iGRS200,201,202,203..ROY200904-201002

main55620-30230-C0iGRS200,201,204..ATH200904-201002

main55620-30240-B0iGWS204201002-201212

main55620-30240-C1supersedes 55620-30240-C0iGRS200,201..ATH201111-201212

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-30560-C0iGRS200,201..ATH201002-201111

BLACK,TRIM1#,4#

main58804-30560-E0iGRS200,201,202,203..ROY..CBU201111-201212

DK. BROWN,TRIM01,1#

main58804-30560-E1iGRS200,201,202,203..ROY..CBU201111-201212

BROWN,TRIM01

main58804-30610-E0iGRS200,201,202,203..ROY,ROYG200802-201002

DK.BROWN,TRIM0#,1#

main58804-30620-C0iGRS200,201,204..ATH200802-201002

BLACK,TRIM1#,4#

main58804-30630-B0iGWS204200805-201002

GRAY,TRIM0#,1#,4#

main58804-30560-B0iGWS204201002-201212

main58804-30560-C1supersedes 58804-30560-C0iGRS200,201..ATH201111-201212

main58804-30720-E0iGRS200,201,202,203..ROY200904-201002

main58804-30730-C0iGRS200,201,204..ATH200904-201002

58810JBOX ASSY, CONSOLE

main58810-30B50-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

sub58810-30B20

main58810-30B50-B1iGRS20#,GWS204200802-201002

GRAY,TRIM1#

sub58810-30B20

main58810-30B50-E1iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.BROWN,TRIM4#

sub58810-30B20

main58810-30C60-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201101

SHELL,TRIM0#

main58810-30C60-B1iGRS20#,GWS204..CBU201002-201101

GRAY,TRIM1#

main58810-30C60-C0iGWS204201002-201101

BLACK/DK.BROWN,TRIM4#

main58810-30C60-D0iGRS200,201,204..ATH201002-201101

RED/DK.BROWN,TRIM4#

main58810-30C61-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201102-201212

SHELL,TRIM0#

main58810-30C61-B1iGRS20#,GWS204..CBU201102-201212

GRAY,TRIM1#

main58810-30C61-C0iGWS204201102-201212

BLACK,TRIM4#

main58810-30C61-D0iGRS200,201,204..ATH201102-201212

RED,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-13082-A0×2iGRS20#,GWS204200802-201002

MELLOW WHITE

58825APOCKET, CONSOLE BOX

main58825-30150iGRS20#,GWS204200802-201002

58829CSTOPPER, CONSOLE BOX POCKET

main58829-30060-A0×2iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200901-201002

SHELL,TRIM0#

main58829-30060-B0×2iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main58829-30060-E0×2iGRS200,201,204,GWS204..ATH,HBD200901-201002

DK. BROWN,TRIM4#

58834ACOVER, CONSOLE, LOWER

main58834-30090iGRS20#,GWS204200802-201002

58860AREGISTER ASSY, CONSOLE BOX

main58860-30050iGRS20#,GWS204200802-201002

58861ASUPPORT, CONSOLE BOX, NO.1

main58865-30120-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main58865-30120-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main58865-30120-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.BROWN,TRIM4#

58861CDUCT, CONSOLE BOX, NO.1

main58861-30110iGRS20#,GWS204200802-201002

58861ECLIP, CONSOLE BOX DUCT

main90467-08186-C0iGRS20#,GWS204..CBU201002-201212

BLACK

58862CSUPPORT, CONSOLE BOX, NO.2

main58866-30060-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main58866-30060-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main58866-30060-E0iGRS200,201,204,GWS204..ATH,HBD201002-201212

DK.BROWN,TRIM4#

58873CUSHION, CONSOLE BOX, NO.3

main58873-30040×2iGRS20#,GWS204..CBU201010-201212

58910DCLIP(FOR CONSOLE BOX)

main90467-13082-A0×2iGRS20#,GWS204200802-201002

MELLOW WHITE

58913APANEL, BOX, NO.3

main58913-30060-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main58913-30060-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main58913-30060-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK.BROWN,TRIM4#

58920AARMREST ASSY, REAR CONSOLE

main58920-30220-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-200812

SHELL,TRIM0#

main58920-30220-B1iGRS20#,GWS204200802-200812

GRAY,TRIM1#

main58920-30220-E1iGRS200,201,204,GWS204..ATH,HBD200802-200812

DK.BROWN,TRIM4#

main58920-30221-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200901-201002

SHELL,TRIM0#

main58920-30221-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201101

SHELL,TRIM0#

main58920-30221-B1iGRS20#,GWS204200901-201002

GRAY,TRIM1#

main58920-30221-B2iGRS20#,GWS204..CBU201002-201101

GRAY,TRIM1#

main58920-30221-C2iGWS204201002-201101

BLACK/DK.BROWN,TRIM4#

main58920-30221-D0iGRS200,201,204..ATH201002-201101

RED/DK.BROWN,TRIM4#

main58920-30221-E1iGRS200,201,204,GWS204..ATH,HBD200901-201002

DK. BROWN,TRIM4#

main58920-30222-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201102-201212

SHELL,TRIM0#

main58920-30222-B2iGRS20#,GWS204..CBU201102-201212

GRAY,TRIM1#

main58920-30222-C2iGWS204201102-201212

BLACK,TRIM4#

main58920-30222-D0iGRS200,201,204..ATH201102-201212

RED,TRIM4#

58921CPLATE, BOX, UPPER NO.1

main58921-30060iGRS20#,GWS204200802-201002

58922APLATE, BOX, UPPER NO.2

main58922-30040iGRS20#,GWS204200802-201002

58923APANEL, CONSOLE REAR END

main58923-30160-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main58923-30160-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main58923-30160-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

58924APANEL, CONSOLE REAR END, NO.2

main58924-22010iGRS20#,GWS204..CBU201002-201008

main58924-30160iGRS20#,GWS204..CBU201008-201212

58944ACOVER, CONSOLE, REAR

main58944-30060iGRS20#,GWS204200802-201002

main58944-30090-C0iGRS200,201..ATH201002-201111

BLACK,TRIM1#,4#

main58944-30090-C1iGRS200,201..ATH201111-201212

BLACK,TRIM40

main58944-30090-E0iGRS200,201,202,203..ROY..CBU201002-201111

DK. BROWN,TRIM0#,1#

main58944-30090-E1iGRS200,201,202,203..ROY..CBU201111-201212

BROWN,TRIM01

main58944-30090-B0iGWS204201002-201212

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-30110×2iGRS20#,GWS204200802-201002

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30200iGRS20#,GWS204200802-201002

74133SEAL, FRONT ASH RECEPTACLE

main74133-30140iGRS20#,GWS204200802-201002

8401

9015950327

main90159-50327

9046710203

main90467-10203

9163540616

main91635-40616

9167380616

main91673-80616

9356855014

main93568-55014

32 parts on this diagram · 1 diagram in section
