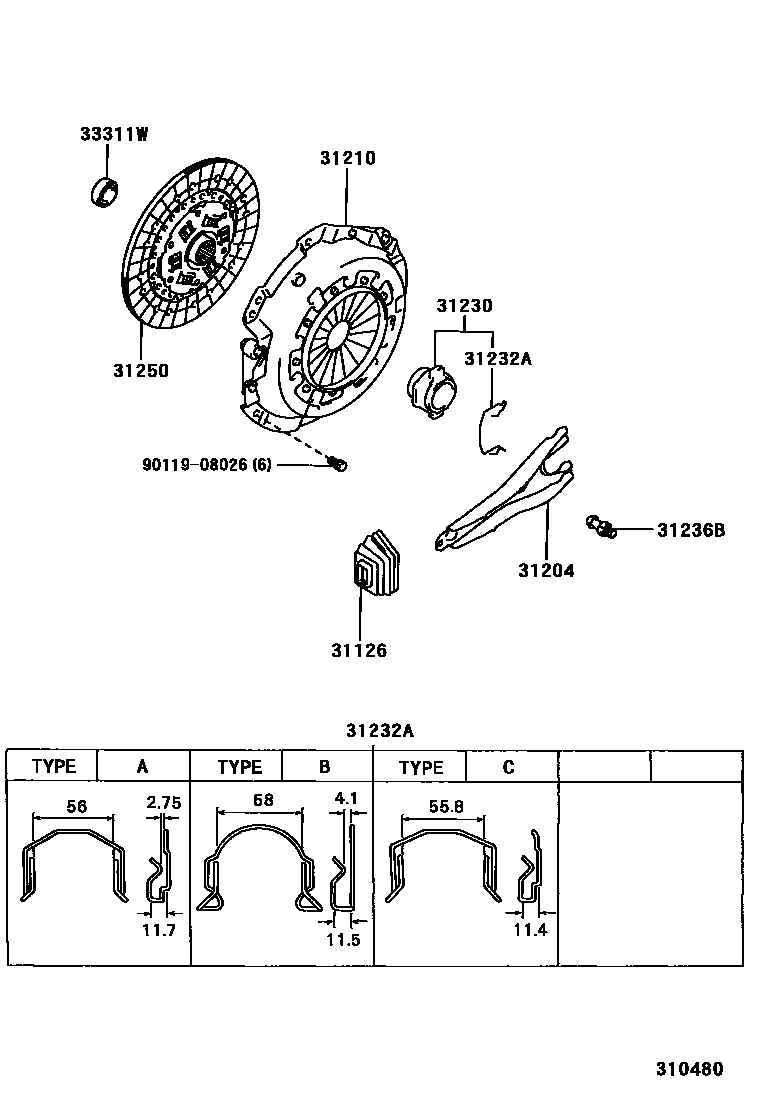

Toyota CROWN — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYS130..4H199112-199512

main31126-20070iGS130,136,LS136..MTM199110

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYS130..4H199112-199512

main31204-35050iGS130,136,LS136..MTM199110

31210COVER ASSY, CLUTCH

main31210-22100iGS130,136..MTM..HTWC199110

sub31210-22101

main31210-26050iYS130..4H199112-199210

sub31210-30231

main31210-30220iGS130..4H..TWLPG199112-199512

sub31210-30221

main31210-30250iLS136..5F199110-199208

main31210-30251iLS136..5F199208-199409

sub31210-35340

main31210-30270iYS130..4H199210-199512

sub31210-43010

31230BEARING ASSY, CLUTCH RELEASE

main31230-30150iYS130..4H199112-199512

main31230-35070iLS136..5F199110-199409

sub31230-35071

main31230-35090iGS130,136..MTM199110

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35010iYS130..4H199112-199512

main31232-35020iGS130,136,LS136..MTM199110

main31232-35030iLS136..5F199110-199409

main31232-35040iGS130,136..MTM199110

31236BSUPPORT, RELEASE FORK

main31236-30060iGS130,136,LS136,YS130..MTM199110

31250DISC ASSY, CLUTCH

main31250-20210iYS130..4H199210-199311

main31250-20211iYS130..4H199311-199512

sub31250-20212

main31250-22231iGS130,136..MTM199110-199605

main31250-22360iGS136..DLX199605-199807

main31250-30381iYS130..4H199112-199210

sub31250-20260

main31250-35190iLS136..5F199110-199409

sub31250-35221

main31250-35370iGS136..DLX199807-199811

main31250-35371iGS136..DLX199811

sub31250-35372

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLS136,YS130..MTM199110-199512

sub90363-12024

main90363-12003iGS130,136..MTM199110

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
