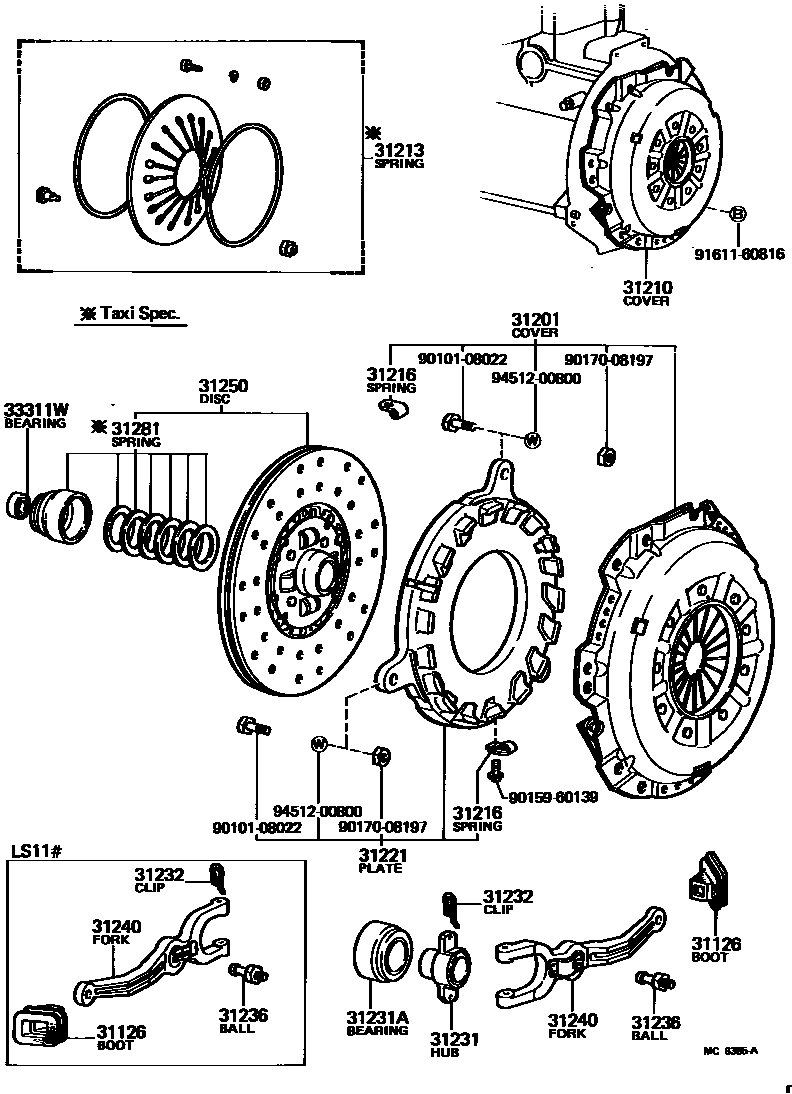

Toyota CROWN — CLUTCH & RELEASE FORK

0001 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iLS11#..4F,5F198010-198108

main31126-20060iRS110198010-198307

main31126-20070iGS11#,LS11#,MS110,117..MTM198108-198307

main31126-22040iMS11#..4F,5F197909-198108

main31126-30070iRS110197909-198010

31201COVER SUB-ASSY, CLUTCH

main31201-29085iGS11#..MTM198108-198307

sub31201-26010

main31201-29115iLS111..TD198208-198307

sub31201-24010

main31201-39046iMS110,117..MTM..(CBR,EFI)197909-198003

main31201-39047iMS110,117..MTM..(CBR,EFI)198003-198307

main31201-39067iLS11#,RS110..MTM197909-197912

main31201-39068iLS11#,RS110..MTM197912-198108

main31201-39106iMS112..5F197909-198003

main31201-39107iMS112..5F198003-198108

main31201-39126iRS110198109-198307

sub31201-30111

main31201-39135iLS110,117..MTM198108-198307

31210COVER ASSY, CLUTCH

main31210-24010iLS111..TD198208-198307

sub31210-24011

main31210-30086iRS110197909-197911

main31210-30087iRS110197911-198109

sub31210-30088

main31210-30151iLS11#..MTM197909-197911

main31210-30152iLS11#..MTM197911-198108

main31210-30153iLS110,117..MTM198108-198307

sub31210-30154

main31210-30161iRS110198109-198307

main31210-30171iMS110,117..MTM..(CBR,EFI)197909-198003

main31210-30172iMS110,117..MTM..(CBR,EFI)198003-198307

sub31210-20270

main31210-30181iMS112..5F197909-198003

main31210-30182iMS112..5F198003-198108

main31210-36029iGS11#..MTM198108-198307

sub31210-36200

31213SPRING, CLUTCH DIAPHRAGM

main31213-39046iLS11#,RS110..MTM197909-197911

TAXI SPEC

main31213-39047iLS11#,RS110..MTM197911-198109

TAXI SPEC

main31213-39055iRS110198109-198307

TAXI SPEC

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31221PLATE, CLUTCH PRESSURE

main31221-39015iMS110..4H..LPG197912-198108

main31221-39018iRS110197909-198307

main31221-39056iGS11#..MTM198108-198307

sub31221-36025

main31221-39105iLS110,117..MTM197909-198307

sub31221-30090

main31221-39115iLS111,MS11#..MTM..(CBR,EFI,TD)197909-198307

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLS11#..MTM198108-198307

main31231-22021iMS11#..4F,5F197909-198007

main31231-22022iMS11#..4F,5F198007-198011

main31231-22023iMS11#..4F,5F198011-198108

main31231-22040iGS110,MS110,117..4H198010-198109

main31231-30071iMS110,117..4H197909-198010

main31231-30080iRS110198108-198307

main31231-36070iGS11#,MS110,117..MTM198109-198307

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iLS11#,MS11#,RS110..MTM197909-198002

main90363-40008iLS11#,MS11#,RS110..MTM198002-198010

main90363-40015iLS11#,MS11#,RS110..MTM198010-198012

main90363-40022iGS11#,LS11#,MS11#,RS110..MTM198012-198307

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iMS11#,RS110..MTM198010-198108

main31232-30010×2iMS110,117..4H197909-198010

main31232-30020×2iLS11#..4F,5F198010-198108

31236BALL, RELEASE FORK

main31236-20020iMS11#..MTM197909-198107

main31236-30040iRS110197909-198010

main31236-30050iLS11#..4F,5F198010-198108

main31236-30060iMS11#..MTM198107-198108

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRS110198010-198307

sub31204-20072

main31204-20080iMS110,117..4H198010-198307

main31204-20090iLS110..4H198010-198108

main31204-22030iMS11#..4F,5F197909-198108

main31204-30031iMS110,117..4H197909-198010

main31204-30062iLS11#..MTM197909-198010

main31204-30070iRS110197909-198010

31250DISC ASSY, CLUTCH

main31250-22101iGS11#..MTM198108-198307

sub31250-22102

main31250-30200iMS110,117..MTM..(CBR,EFI)197909-198307

sub31250-30330

main31250-30210iMS112..5F197909-198105

main31250-30211iMS112..5F198105-198108

sub31250-30212

main31250-30231iLS11#..MTM..(BTP,CTE,DLX,SDX,STD)197909-198003

main31250-30232iLS11#..MTM..(BTP,CTE,DLX,SDX,STD)198003-198008

main31250-30233iLS11#..MTM..(BTP,CTE,DLX,SDX,STD)198008-198105

main31250-30234iLS11#..MTM..(BTP,CTE,DLX,SDX,STD)198105-198111

main31250-30235iLS110,117..MTM..(CTE,DLX,SDX,STD)198111-198307

main31250-30250iMS110..4H..LPG197912-198002

main31250-30251iMS110..4H..LPG198002-198207

main31250-30252iMS110..4H..LPG198207-198208

sub31250-20130

main31250-30270iLS111..TD198208-198307

sub31250-60151

main31250-30280iMS110..4H..LPG198208-198307

sub31250-20130

main31280-29015iRS110197909-198002

main31280-29025iRS110198005-198111

main31280-39056iLS110..TAX197909-198003

main31280-39057iLS110..TAX198003-198008

main31280-39058iLS110..TAX198008-198105

main31280-39075iRS110198002-198005

main31280-39085iLS110..TAX198105-198307

sub31250-30167

main31280-39095iRS110198111-198307

sub31250-25122

31281SPRING, CLUTCH DISC PUSH

main31281-39045iRS110;LS110..TAX197909-198307

TAXI SPEC

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRS110198006-198307

6201 2NK

sub90363-12024

main90363-12003iGS11#..MTM198108-198307

main97143-06201iLS11#,MS11#..MTM198006-198011

6201 VV C3

9010108022

main90101-08022

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

19 parts on this diagram · 3 diagrams in section
