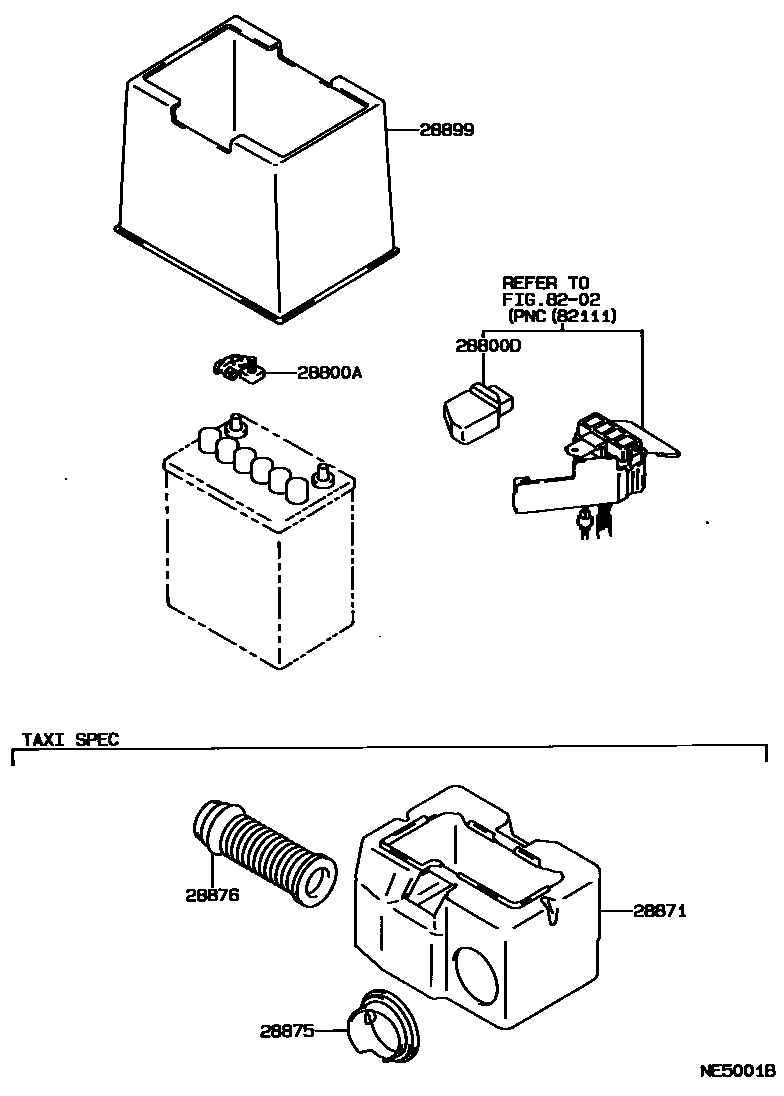

Toyota CROWN — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05041i198709-199110

main90982-05042i198709-199110

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i198709-199004

main82821-30140i198902-199110

main82821-30220i198908-199110

28871INSULATOR, BATTERY, NO.1

main28871-73010i198709-199110

28875DUCT, BATTERY INSULATOR, NO.1

main28875-73010i198709-199110

28876DUCT, BATTERY INSULATOR, NO.2

main28876-73010i198709-199110

28899INSULATOR, BATTERY

main28899-42040i198709-198908

main28899-70010i198908-199110

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CROWN

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CROWN. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), INSULATOR, BATTERY, NO.1, DUCT, BATTERY INSULATOR, NO.1, DUCT, BATTERY INSULATOR, NO.2.
