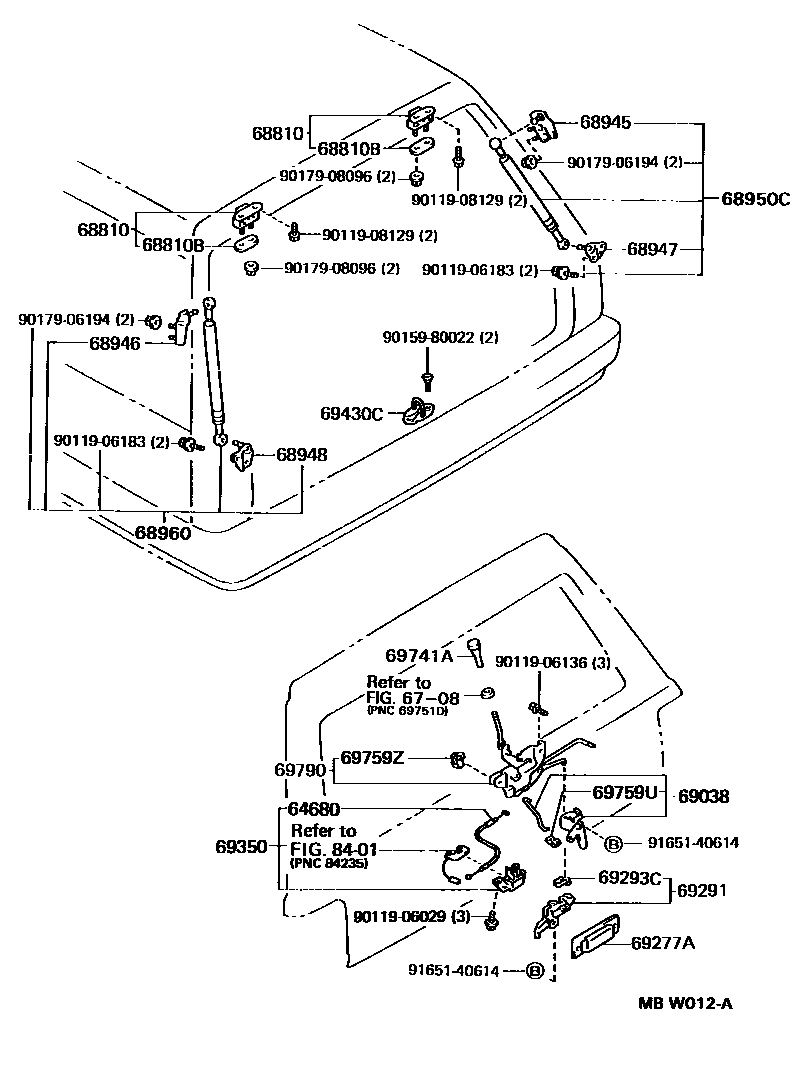

Toyota CROWN — BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
6708BACK DOOR PANEL & GLASS
68810HINGE ASSY, BACK DOOR, UPPER
68810BPAD, BACK DOOR HINGE
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69038PROTECTOR SUB-ASSY, BACK DOOR CHILD
69277ABEZEL, BACK DOOR INSIDE HANDLE
GRAY,TRIM1#
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69291HANDLE ASSY, BACK DOOR INSIDE
GRAY,TRIM1#
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69293CSNAP, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69741AKNOB, BACK DOOR LOCK CONTROL
GRAY,TRIM1#
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69759USNAP, BACK DOOR LOCK CONTROL LINK
69759ZSNAP, DOOR LOCK CONTROL LINK
69790CONTROL ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9011906029
main90119-06029
9011906136
main90119-06136
9011906183
main90119-06183
9011908129
main90119-08129
9015980022
main90159-80022
9017906194
main90179-06194
9017908096
main90179-08096
9165140614
main91651-40614
29 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota CROWN
This section contains 29 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CROWN. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, BACK DOOR PANEL & GLASS, HINGE ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, BRACKET, BACK DOOR DAMPER STAY, UPPER RH.
