Toyota CROWN — BACK DOOR LOCK & HANDLE

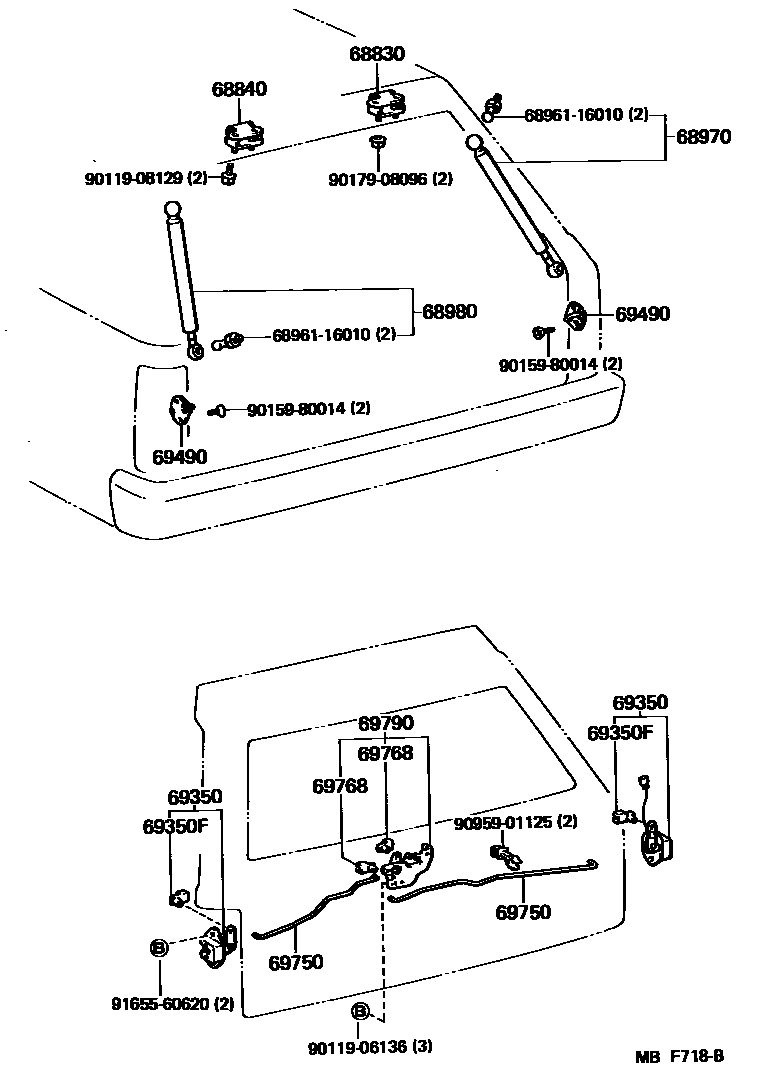

Parts diagram
68830HINGE ASSY, BACK DOOR, RH
main68810-91705i198308-198708
68840HINGE ASSY, BACK DOOR, LH
main68810-91705i198308-198708
68970STAY ASSY, BACK DOOR, RH
main68950-39075i198308-198708
W/*RW
main68950-39085i198308-198708
main68950-39095i198308-198708
68980STAY ASSY, BACK DOOR
main68960-39035i198308-198708
W/*RW
main68960-39045i198308-198708
main68960-39055i198308-198708
69350LOCK ASSY, BACK DOOR
main69350-91705i198308-198708
RH
main69360-91701i198308-198708
LH
69350FSNAP, DOOR LOCK CONTROL ROD
main69759-24050i198308-198708
RH
main69759-24060i198308-198708
LH
69490STRIKER ASSY, BACK DOOR LOCK
main69430-91702×2i198308-198708
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
main69764-91704i198308-198708
RH
main69765-91701i198308-198708
LH
69768SNAP, BACK DOOR LOCK CONTROL LINK
main69759-24060×3i198308-198708
69790CONTROL ASSY, BACK DOOR LOCK
main69790-91708i198308-198708
main69790-91709i198308-198708
6896116010BOLT, BACK DOOR STAY
main68961-16010
9011906136
main90119-06136
9011908129
main90119-08129
9015980014
main90159-80014
9017908096
main90179-08096
9095901125
main90959-01125
9165560620
main91655-60620

17 parts on this diagram · 2 diagrams in section

BACK DOOR LOCK & HANDLE for Toyota CROWN

This section contains 26 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CROWN. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, STAY ASSY, BACK DOOR, RH, STAY ASSY, BACK DOOR, PROTECTOR SUB-ASSY, BACK DOOR CHILD.
