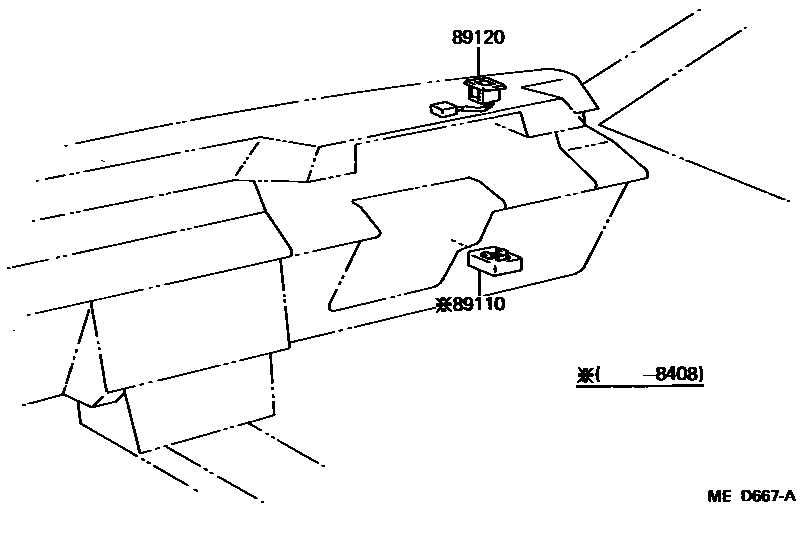

Toyota CROWN — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89110RELAY ASSY, CONLIGHT, A

main89110-30030iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198408

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-30020-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main89120-30020-04iGS120,LS120..WG..SAL198405-198408

BLUE,BLUE,TRIM8#

main89120-30020-05iGS120,LS120..WG..SAL198405-198408

BEIGE,BEIGE,TRIM4#

main89120-30030-02iGS120,121,LS120,MS12#..ROY,SAL198408-198509

DEEP MAROON,RED/MAROON,TRIM3#

main89120-30030-04iGS120,121,LS120,MS12#..ROY,SAL198408-198708

BLUE,BLUE,TRIM8#

main89120-30030-05iGS120,121,LS120,MS12#..ROY,SAL198408-198509

BEIGE,BEIGE,TRIM4#

main89120-30030-06iGS120,121,LS120,MS125..ROY,SAL198509-198708

BROWN,BROWN,TRIM4#

main89120-30030-12iGS120,121,LS120,MS125..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

2 parts on this diagram · 1 diagram in section
