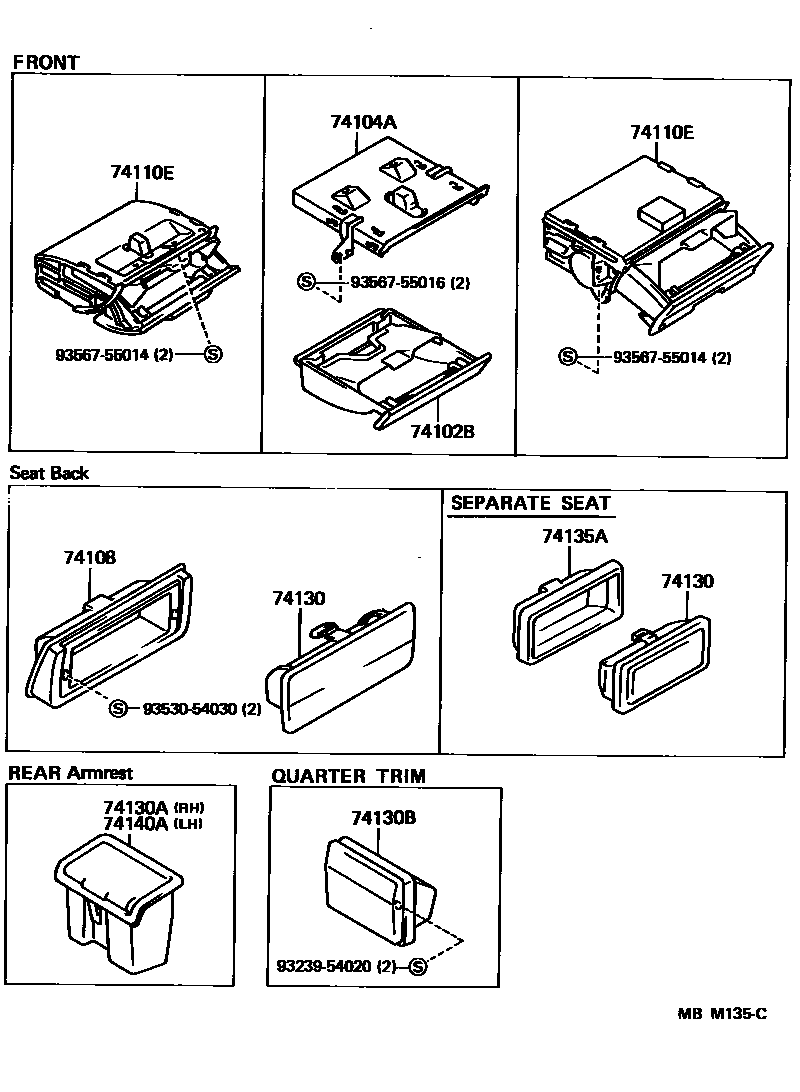

Toyota CROWN — ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
MAROON,TRIM3#
BLUE,TRIM8#
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE
main74108-20050-02iGS130..4H..DLX..HTWC;GS130,136,LS130,MS130,YS130..(4H,4HC)..DLX..(DSL,EFI,LPG); MS130..4H..SDX198709-198908
MAROON,TRIM3#
main74108-20050-14iGS130,136,LS130,136,MS130,YS130..(4H,4HC)..(DLX,STD); GS130,MS130..SED..4H..SDX198709-199110
BLUE,TRIM8#
74110ERECEPTACLE ASSY, FRONT ASH
main74110-30120-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE)198709-198908
MAROON,TRIM3#
main74110-30120-04iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
main74110-30120-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110
SABLE,TRIM4#
74130RECEPTACLE ASSY, REAR ASH
main74109-30090-02iGS130..4H..DLX..HTWC;GS130,136,LS130,MS130,YS130..(4H,4HC)..DLX..(DSL,EFI,LPG); MS130..4H..SDX198709-198908
main74109-30090-14iGS130,136,LS130,136,MS130,YS130..(4H,4HC)..(DLX,STD); GS130,MS130..SED..4H..SDX198709-199105
main74109-30091-D0iGS130,136,LS130,YS130..(4H,4HC)..DLX; GS130..4H..SDX..TWLPG; YS130..DLX199105-199110
main74109-30091-J1iGS130,136,LS130,136,YS130..(4H,4HC)..(DLX,STD); GS130..4H..SDX..TWLPG; YS130..DLX199105-199110
MAROON
BLUE
main74130-30210-02×2iGS130,YS130..DLX..(LPEFI,TWLPG); GS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..DLX198908-199110
main74130-30210-04×2iGS130,YS130..DLX..(LPEFI,TWLPG); GS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..(DLX,STD); YS130..5F198908-199110
74130ARECEPTACLE ASSY, REAR ASH, RH
main74130-30180-02iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74130-30180-04iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
main74130-30180-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX)198709-199110
SABLE,SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
74130BRECEPTACLE ASSY, REAR ASH
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
74135ARETAINER, REAR ASH RECEPTACLE, NO.1
main74135-30100-02×2iGS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..DLX;GS130,YS130..DLX..(LPEFI,TWLPG)198908-199110
MAROON,TRIM3#
main74135-30100-14iGS136,LS136..4FC,5F;GS130,YS130..DLX..(LPEFI,TWLPG);GS130,LS130..(4FC,5F)..(DLX,STD); YS130..5F198908-199110
BLUE,TRIM8#
74140ARECEPTACLE ASSY, REAR ASH, LH
main74140-30050-02iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74140-30050-04iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
main74140-30050-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX)198709-199110
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
9323954020
main93239-54020
9353054030
main93530-54030
9356755014
main93567-55014
9356755016
main93567-55016
13 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota CROWN
This section contains 13 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CROWN. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, REAR ASH RECEPTACLE, RECEPTACLE ASSY, FRONT ASH, RECEPTACLE ASSY, REAR ASH.
