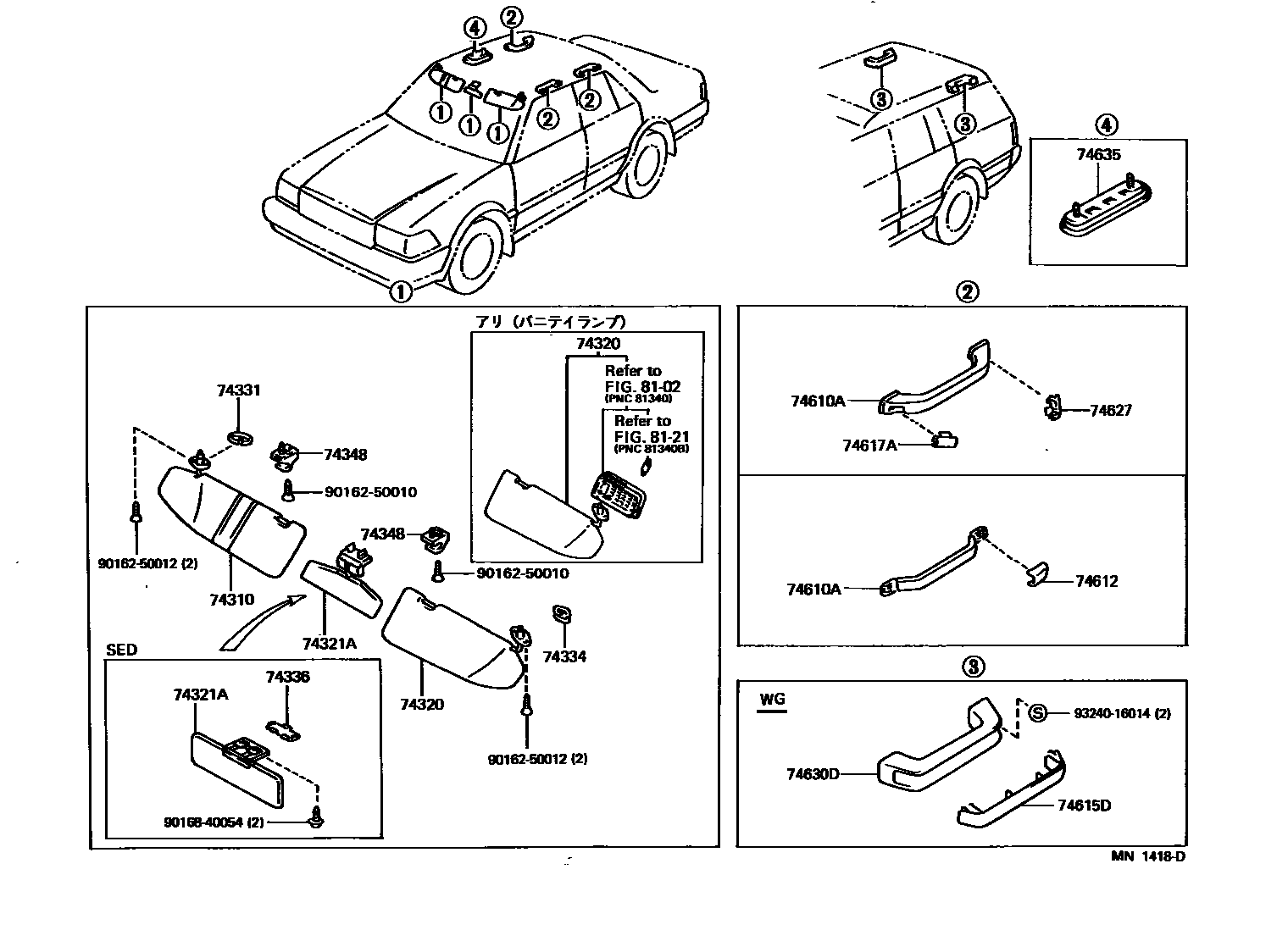

Toyota CROWN — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-30420-E0i199110-199506

QUARTZ,TRIM4#

main74310-30420-J0i199110-199506

DK.BLUE,TRIM8#

main74310-30421-E0i199506-199512

QUARTZ,TRIM4#

main74310-30421-J0i199506-199704

DK.BLUE,TRIM8#

main74310-30422-J0i199704-199708

DK. BLUE,TRIM8#

main74310-30423-J0i199708-199904

DK. BLUE,TRIM8#

main74310-30690-B1i199110-199308

SHADOW GRAY,TRIM1#

main74310-30690-E1i199110-199308

QUARTZ,TRIM4#

main74310-30690-J1i199110-199308

DK.BLUE,TRIM8#

main74310-30691-B1i199308-199506

SHADOW GRAY,TRIM1#

main74310-30691-E1i199308-199506

QUARTZ,TRIM4#

main74310-30691-J1i199308-199506

DK.BLUE,TRIM8#

main74310-30692-B1i199506-199512

SHADOW GRAY,TRIM1#

main74310-30692-E1i199506-199512

QUARTZ,TRIM4#

main74310-30692-J1i199506-199512

DK.BLUE,TRIM8#

main74310-30710-E0i199110-199506

QUARTZ,TRIM4#

main74310-30710-J0i199110-199112

DK.BLUE,TRIM8#

main74310-30711-E0i199506-199512

QUARTZ,TRIM4#

main74310-30711-J0i199506-199512

main74310-31010-E0i199110-199308

QUARTZ,TRIM4#

main74310-31010-J0i199110-199308

DK.BLUE,TRIM8#

main74310-31011-E1i199308-199506

QUARTZ,TRIM4#

main74310-31011-J0i199308-199506

DK.BLUE,TRIM8#

main74310-31012-B1i199512-199704

SHADOW GRAY,TRIM1#,4#

main74310-31012-E2i199506-199512

QUARTZ,TRIM4#

main74310-31012-J0i199506-199512

DK.BLUE,TRIM8#

main74310-31013-B1i199704-199708

SHADOW GRAY,TRIM1#

main74310-31013-E2i199704-199708

QUARTZ,TRIM4#

main74310-31014-B1i199708-199904

SHADOW GRAY,TRIM1#

main74310-31014-E2i199708-199904

QUARTZ,TRIM4#

main74310-31020-B1i199110-199308

SHADOW GRAY,TRIM4#

main74310-31020-E1i199110-199308

QUARTZ,TRIM4#

main74310-31020-J1i199110-199308

DK.BLUE,TRIM8#

main74310-31021-B1i199308-199506

SHADOW GRAY,TRIM1#

main74310-31021-E1i199308-199506

QUARTZ,TRIM4#

main74310-31021-J1i199308-199506

DK.BLUE,TRIM8#

main74310-31022-B1i199506-199704

SHADOW GRAY,TRIM1#

main74310-31022-E1i199506-199704

QUARTZ,TRIM4#

main74310-31022-J1i199506-199512

DK.BLUE,TRIM8#

main74310-31023-B1i199704-199708

SHADOW GRAY,TRIM1#

main74310-31023-E1i199704-199708

QUARTZ,TRIM4#

main74310-31024-B1i199708-199904

SHADOW GRAY,TRIM1#

main74310-31024-E1i199708-199904

QUARTZ,TRIM4#

74320VISOR ASSY, LH

main74320-30370-J0i199110

DK.BLUE,TRIM8#

main74320-30590-J1i199112-199308

DK.BLUE,TRIM8#

main74320-30591-J1i199308-199512

DK.BLUE,TRIM8#

main74320-30610-E0i199110-199512

QUARTZ,TRIM4#

main74320-30610-J0i199110-199112

DK.BLUE,TRIM8#

main74320-30630-B1i199110-199308

SHADOW GRAY,TRIM1#

main74320-30630-E1i199110-199308

QUARTZ,TRIM4#

main74320-30630-J1i199110-199308

DK.BLUE,TRIM8#

main74320-30631-B1i199308-199512

SHADOW GRAY,TRIM1#

main74320-30631-E1i199308-199512

QUARTZ,TRIM4#

main74320-30631-J1i199308-199512

DK.BLUE,TRIM8#

main74320-30640-E1i199110-199308

QUARTZ,TRIM4#

main74320-30640-J1i199110-199308

DK.BLUE,TRIM8#

main74320-30641-E1i199308-199512

QUARTZ,TRIM4#

main74320-30641-J1i199308-199512

DK.BLUE,TRIM8#

main74320-31010-E0i199110-199512

QUARTZ,TRIM4#

main74320-31010-J0i199110-199704

DK.BLUE,TRIM8#

main74320-31011-J0i199704-199708

DK. BLUE,TRIM8#

main74320-31012-J0i199708

DK. BLUE,TRIM8#

main74320-31020-B1i199110-199308

SHADOW GRAY,TRIM1#

main74320-31020-E1i199110-199308

QUARTZ,TRIM4#

main74320-31020-J1i199110-199308

DK.BLUE,TRIM8#

main74320-31021-B1i199308-199704

SHADOW GRAY,TRIM1#

main74320-31021-E1i199308-199704

QUARTZ,TRIM4#

main74320-31021-J1i199308-199512

DK.BLUE,TRIM8#

main74320-31022-B1i199704-199708

SHADOW GRAY,TRIM1#

main74320-31022-E1i199704-199708

QUARTZ,TRIM4#

main74320-31023-B1i199708

SHADOW GRAY,TRIM1#

main74320-31023-E1i199708

QUARTZ,TRIM4#

main74320-31030-E0i199110-199308

QUARTZ,TRIM4#

main74320-31030-J0i199110-199308

DK.BLUE,TRIM8#

main74320-31031-B0i199512-199704

SHADOW GRAY,TRIM1#

main74320-31031-E0i199308-199512

QUARTZ,TRIM4#

main74320-31031-E1i199512-199704

QUARTZ,TRIM4#

main74320-31031-J0i199308-199512

DK.BLUE,TRIM8#

main74320-31032-B0i199704-199708

SHADOW GRAY,TRIM1#

main74320-31032-E1i199704-199708

QUARTZ,TRIM4#

main74320-31033-B0i199708

SHADOW GRAY,TRIM1#

main74320-31033-E1i199708

QUARTZ,TRIM4#

74321AVISOR, FRONT

main74321-31010-B1i199110-199308

SHADOW GRAY,TRIM1#

main74321-31010-E2i199110-199308

QUARTZ,TRIM4#

main74321-31010-J2i199110-199308

DK.BLUE,TRIM8#

main74321-31011-B3×2i199308-199512

LT.GRAY,TRIM1#

main74321-31011-E3×2i199308-199512

QUARTZ,TRIM4#

main74321-31011-J3×2i199308-199512

LT.BLUE,TRIM8#

main74330-30020-B1i199110-199308

SHADOW GRAY,TRIM1#

main74330-30020-E3i199110-199308

QUARTZ,TRIM4#

main74330-30020-J3i199110-199308

DK.BLUE,TRIM8#

main74330-30021-B2i199308-199512

SHADOW GRAY,TRIM1#

main74330-30021-E4i199308-199512

QUARTZ,TRIM4#

main74330-30021-J4i199308-199512

DK.BLUE,TRIM8#

74331CASE, VISOR ARM, RH

main74331-30050-B0i199110

LI.GRAY,TRIM1#

main74331-30050-E0i199110

QUARTZ,TRIM4#

main74331-30050-J0i199110-199512

LI.BLUE,TRIM8#

74334CASE, VISOR ARM, LH

main74334-30080-B0i199110

LI.GRAY,TRIM1#

main74334-30080-E0i199110

QUARTZ,TRIM4#

main74334-30080-J0i199110-199512

LI.BLUE,TRIM8#

74336CLIP, VISOR ARM SET

main74336-24010-B0i199110-199512

LI.GRAY,TRIM1#

main74336-24010-E0i199110-199512

QUARTZ,TRIM4#

main74336-24010-W3i199110-199512

LI.BLUE,TRIM8#

74348HOLDER, VISOR

main74348-30010-B0×2i199110-199512

LI.GRAY,TRIM1#

main74348-30010-E0×2i199512-199904

QUARTZ,TRIM4#

main74348-30010-J1i199110-199512

LI.BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-30110-B0×3i199110-199512

LI.GRAY,TRIM1#

main74610-30110-E0×3i199110

QUARTZ,TRIM4#

main74610-30110-J0×3i199110-199512

LI.BLUE,TRIM8#

main74610-30140-E0×2i199110-199512

main74610-30140-J0×2i199110-199112

main74610-30150-E0×3i199110-199512

main74610-30150-J0i199110-199112

main74610-30170-B0×3i199110-199512

LI.GRAY,TRIM1#

main74610-30170-E0×3i199110-199512

QUARTZ,TRIM4#

main74610-30170-J0×3i199110-199512

LI.BLUE,TRIM8#

74612COVER, ASSIST GRIP

main74612-30110-B0×6i199110-199512

LI.GRAY,TRIM1#

main74612-30110-E0×6i199110

QUARTZ,TRIM4#

main74612-30110-J0×6i199110-199512

LI.BLUE,TRIM8#

main74612-30140-B0×6i199110-199512

LI.GRAY,TRIM1#

main74612-30140-E0×6i199110-199512

QUARTZ,TRIM4#

main74612-30140-J0×6i199110-199512

LI.BLUE,TRIM8#

74615DESCUTCHEON, DOOR ASSIST GRIP

main74615-22010-B0×2i199110

LI.GRAY,TRIM1#

main74615-22010-E0×2i199110-199512

QUARTZ,TRIM4#

main74615-22010-J0×2i199110-199512

LI.BLUE,TRIM8#

74617APLUG, ASSIST GRIP

main74617-30030-E0×3i199110-199512

QUARTZ,TRIM4#

main74617-30030-J0×3i199112-199512

74627PLUG, REAR ASSIST GRIP

main74627-30040-E0×3i199110-199512

QUARTZ,TRIM4#

main74627-30040-J0×3i199112-199512

74630DESCUTCHEON, DOOR ASSIST GRIP

main74630-22020-B0×2i199110

LI.GRAY,TRIM1#

main74630-22020-E0×2i199110-199512

QUARTZ,TRIM4#

main74630-22020-J0×2i199110-199512

LI.BLUE,TRIM8#

74635HOLDER, CARD

main74635-16020-B0i199308-199512

LI.GRAY,TRIM1#

main74635-16020-E0i199308-199512

QUARTZ,TRIM4#

main74635-16020-J0i199308-199512

LI.BLUE,TRIM8#

main74635-30010-B0i199110-199308

LI.GRAY,TRIM1#

main74635-30010-E0i199110-199308

QUARTZ,TRIM4#

main74635-30010-J0i199110-199308

LI.BLUE,TRIM8#

8102FOG LAMP

→ Go to FIG 81-02

8121INTERIOR LAMP

→ Go to FIG 81-21

9016250010

main90162-50010

9016250012

main90162-50012

9016840054

main90168-40054

9324016014

main93240-16014

20 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CROWN

This section contains 37 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CROWN. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
