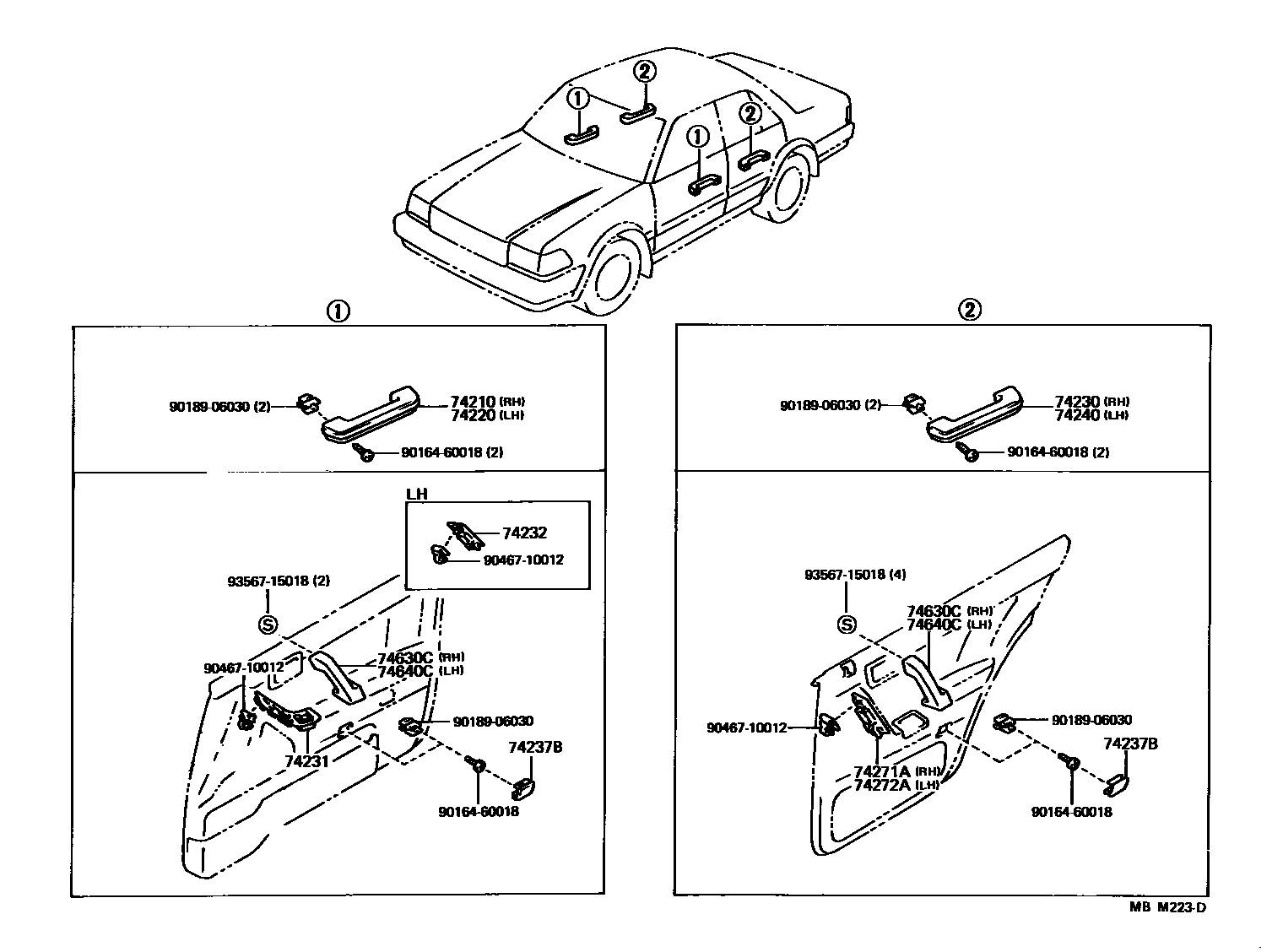

Toyota CROWN — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
MAROON,TRIM3#
DARK BLUE,TRIM8#
74220ARMREST ASSY, FRONT, LH
MAROON,TRIM3#
main74210-22061-24iGS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110
DARK BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74210-22061-22iGS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)198709-199110
MAROON,TRIM3#
DARK BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-30160-02iGS130..WG..SDX;GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74231-30160-02iGS130..WG..SDX;GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
main74231-30160-04iGS130..WG..SDX;GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
main74231-30160-04iGS130..WG..SDX;GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
main74231-30160-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110
SABLE,TRIM4#
main74231-30160-06iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110
main74231-30170-02iGS130,JZS130,LS130..WG..(ROY,SALEX);GS131,JZS131,MS135,137,UZS131..HT..4HC198709-199110
MAROON,TRIM3#
main74231-30170-02iGS130,JZS130,LS130..WG..(ROY,SALEX);GS131,JZS131,MS135,137,UZS131..HT..4HC198709-199110
main74231-30170-04iGS130,JZS130,LS130..WG..(ROY,SALEX);GS131,JZS131,MS135,137,UZS131..HT..4HC198709-199110
main74231-30170-04iGS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-199110
BLUE,TRIM8#
main74231-30170-06iGS130,JZS130,LS130..WG..(ROY,SALEX);GS131,JZS131,MS135,137,UZS131..HT..4HC198709-199110
SABLE,TRIM4#
main74231-30170-06iGS130,JZS130,LS130..WG..(ROY,SALEX);GS131,JZS131,MS135,137,UZS131..HT..4HC198709-199110
MAROON,TRIM3#
BLUE,TRIM8#
main74231-30190-06iGS131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-199110
SABLE,TRIM4#
main74231-30190-06iGS131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-199110
MAROON,TRIM3#
main74231-30200-04iGS131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-199110
BLUE,TRIM8#
main74231-30200-06iGS131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-199110
main74231-30200-06iGS131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-199110
SABLE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-30150-02iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74231-30150-04iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
main74231-30150-06iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SAL,SALEX)198709-199110
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
74237BCAP, DOOR ARMREST BASE
main74237-32010-02iGS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110
MAROON,TRIM3#
main74237-32010-04iGS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110
DARK BLUE,TRIM8#
main74237-32010-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL198709-199110
SABLE,TRIM4#
74240ARMREST ASSY, REAR, LH
main74210-22061-22iGS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)198709-199110
MAROON,TRIM3#
main74210-22061-24iGS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110
DARK BLUE,TRIM8#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-30110-02iGS131..SED..HTWC;GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74271-30110-04iGS131..SED..HTWC;GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-30110-02iGS131..SED..HTWC;GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
MAROON,TRIM3#
main74272-30110-04iGS131..SED..HTWC;GS130,JZS130,LS130,131,MS130..(SED,WG)..(ROY,SAL,SALEX,SDX)198709-199110
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
74630CGRIP ASSY, DOOR ASSIST, RH
MAROON,TRIM3#
main74630-30030-02iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)199008-199110
main74630-30030-02iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX,SDX)198908-199008
main74630-30030-04iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)199008-199110
main74630-30030-04iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)198709-199110
BLUE,TRIM8#
SABLE,TRIM4#
main74630-30030-06iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)199008-199110
main74630-30030-06iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX)198908-199008
MAROON,TRIM3#,FRONT
BLUE,TRIM8#,FRONT
SABLE,TRIM4#,FRONT
MAROON,TRIM3#,REAR
BLUE,TRIM8#,REAR
SABLE,TRIM4#,REAR
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-30020-02iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)199008-199110
MAROON,TRIM3#
main74640-30020-02iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX,SDX)198908-199008
BLUE,TRIM8#
main74640-30020-04iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)199008-199110
main74640-30020-04iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX,SDX)198908-199008
main74640-30020-06iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX)198709-199110
SABLE,TRIM4#
main74640-30020-06iGS131..SED;MS137..4HC..NOB;GS130,JZS131,LS130,131,MS135,UZS131..(SED,WG)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)199008-199110
main74640-30020-06iMS137..4HC..NOB;GS130,131,LS130,131,UZS131..(SED,WG)..(ROYG,SAL,SALEX)198908-199008
MAROON,TRIM3#,FRONT
BLUE,TRIM8#,FRONT
SABLE,TRIM4#,FRONT
MAROON,TRIM3#,REAR
BLUE,TRIM8#,REAR
SABLE,TRIM4#,REAR
9016460018
main90164-60018
9018906030
main90189-06030
9046710012
main90467-10012
9356715018
main93567-15018
15 parts on this diagram · 3 diagrams in section
ARMREST & VISOR for Toyota CROWN
This section contains 34 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CROWN. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
