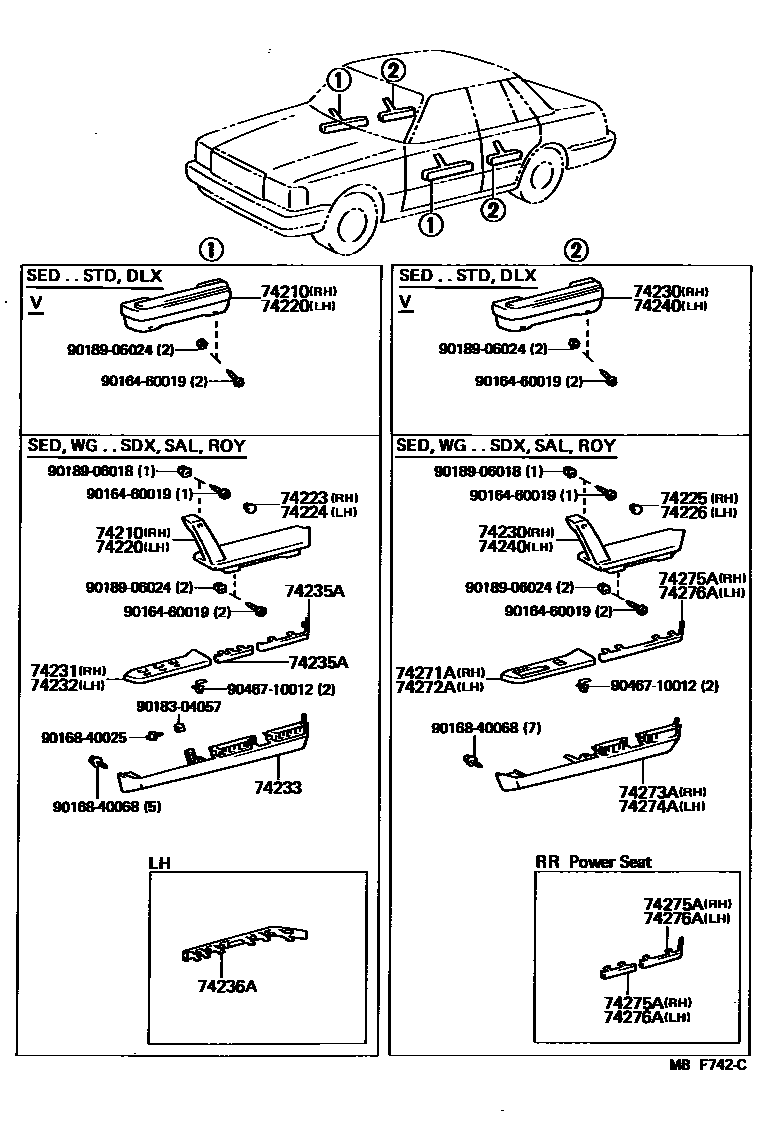

Toyota CROWN — ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-30080-14iGS126,LS126198308-198708

BLUE,BLUE,TRIM8#

main74210-30080-16iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main74210-30080-35iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30150-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74210-30150-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74210-30150-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30151-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74210-30151-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74210-30151-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74210-30160-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74210-30160-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74210-30160-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30161-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74210-30161-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74210-30161-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-30080-14iGS120,LS120,MS120,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main74210-30080-16iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main74210-30080-35iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30110-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74220-30110-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74220-30110-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30111-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74220-30111-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74220-30111-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74220-30120-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74220-30120-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74220-30120-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30121-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74220-30121-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74220-30121-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74266-30020-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74266-30021-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

74224CAP, DOOR ARMREST, LH

main74266-30020-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74266-30021-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74266-30020-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iGS120,LS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74266-30021-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74266-30020-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74266-30021-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-30080-14iGS126,LS126198308-198708

BLUE,BLUE,TRIM8#

main74210-30080-16iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main74210-30080-35iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30160-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74210-30160-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74210-30160-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30161-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74210-30161-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74210-30161-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main74250-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74250-30050-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74250-30050-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74250-30051-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74250-30051-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74250-30051-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74201-30040-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74201-30040-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74201-30040-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74201-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74201-30060-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74201-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74201-30070iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON

main74231-30111-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74231-30111-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74231-30111-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74231-30131-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74231-30131-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74231-30131-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74202-30040-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74202-30040-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74202-30040-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74202-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74202-30060-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74202-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74202-30070iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON

main74232-30111-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74232-30111-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74232-30111-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74232-30131-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74232-30131-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74232-30131-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

74233PANEL, FRONT ARMREST BASE, LOWER

main74233-30030-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30030-04iGS120,LS120,MS120..SDX198308-198708

RH,BLUE,BLUE,TRIM8#

main74233-30030-05iGS120,LS120,MS120..(SED,WG)..SAL198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30030-06iGS120,LS120..SED..SAL198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30030-12iGS120,LS120..(SED,WG)..SAL198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30040-02iGS121,MS123,125..SED198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30040-04iGS121,MS123,125..SED198308-198708

RH,BLUE,BLUE,TRIM8#

main74233-30040-05iGS121,MS123,125..SED198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30040-06iGS121,MS125..SED198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30040-12iGS121,MS125..SED198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30050-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30050-04iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198708

RH,BLUE,BLUE,TRIM8#

main74233-30050-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30050-06iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30050-12iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30060-02iGS121,MS123,125..HT..ROY198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30060-04iGS120,LS120..SSL198704-198708

IVENT,RH,BLUE,BLUE,TRIM8#

main74233-30060-05iGS121,MS123,125..HT..ROY198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30060-06iGS121,MS125..HT..ROY198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30060-12iGS120,LS120..SSL198609-198612

THE 40TH,RH,MAROON,MAROON,TRIM3#

main74234-30030-02iGS120,LS120,MS120..SED..SAL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30030-04iGS120,LS120,MS120..SDX198308-198708

LH,BLUE,BLUE,TRIM8#

main74234-30030-05iGS120,LS120..(4FC,4HC,5F)..SDX198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30030-06iGS120,LS120..SED..SAL198509-198708

LH,BROWN,BROWN,TRIM4#

main74234-30030-12iGS120,LS120..(SED,WG)..SAL198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30040-02iGS121,MS123,125..SED198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30040-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,LH,BLUE,BLUE,TRIM8#

main74234-30040-05iGS121,MS123,125..SED198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30040-06iGS121,MS125..SED198509-198708

LH,BROWN,BROWN,TRIM4#

main74234-30040-12iGS121,MS125..SED198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30050-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30050-04iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

LH,BLUE,BLUE,TRIM8#

main74234-30050-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30051-02iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30051-04iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

LH,BLUE,BLUE,TRIM8#

main74234-30051-06iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

LH,BROWN,BROWN,TRIM4#

main74234-30060-02iGS121,MS123,125..HT..ROY198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30060-04iGS121,MS123,125..HT..ROY198308-198509

LH,BLUE,BLUE,TRIM8#

main74234-30060-05iGS121,MS123,125..HT..ROY198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30061-02iGS120,LS120..SSL198704-198708

IVENT,LH,MAROON,MAROON,TRIM3#

main74234-30061-04iGS120,LS120..SSL198609-198612

THE 40TH,LH,BLUE,BLUE,TRIM8#

main74234-30061-06iGS120,LS120..SSL198704-198708

IVENT,LH,BROWN,BROWN,TRIM4#

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74223-30030-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

RR,DEEP MAROON,RED/MAROON,TRIM3#

main74223-30030-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

RR,BLUE,BLUE,TRIM8#

main74223-30030-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

RR,BEIGE,BEIGE,TRIM4#

main74223-30030-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

RR,BROWN,BROWN,TRIM4#

main74223-30030-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

RR,MAROON,MAROON,TRIM3#

main74223-30040-02iGS120,121,LS120,MS12#..HT198308-198509

FR,DEEP MAROON,RED/MAROON,TRIM3#

main74223-30040-04iGS120,121,LS120,MS12#..HT198308-198708

FR,BLUE,BLUE,TRIM8#

main74223-30040-05iGS120,121,LS120,MS12#..HT198308-198509

FR,BEIGE,BEIGE,TRIM4#

main74223-30040-06iGS120,121,LS120,MS125..HT198509-198708

FR,BROWN,BROWN,TRIM4#

main74223-30040-12iGS120,121,LS120,MS125..HT198509-198708

FR,MAROON,MAROON,TRIM3#

main74235-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

FR,DEEP MAROON,RED/MAROON,TRIM3#

main74235-30050-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

FR,BLUE,BLUE,TRIM8#

main74235-30050-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

FR,BEIGE,BEIGE,TRIM4#

main74235-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

FR,BROWN,BROWN,TRIM4#

main74235-30050-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

FR,MAROON,MAROON,TRIM3#

main74235-30070-02iGS120,121,LS120,MS12#..HT198308-198509

RR,DEEP MAROON,RED/MAROON,TRIM3#

main74235-30070-04iGS120,121,LS120,MS12#..HT198308-198708

RR,BLUE,BLUE,TRIM8#

main74235-30070-05iGS120,121,LS120,MS12#..HT198308-198509

RR,BEIGE,BEIGE,TRIM4#

main74235-30070-06iGS120,121,LS120,MS125..HT198509-198708

RR,BROWN,BROWN,TRIM4#

main74235-30070-12iGS120,121,LS120,MS125..HT198509-198708

RR,MAROON,MAROON,TRIM3#

main74236-30050-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74236-30050-04iGS120,LS120..WG198308-198708

BLUE,BLUE,TRIM8#

main74236-30050-05iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

main74236-30050-06iGS120,LS120..WG..(4FC,5F)..SDX198509-198708

BROWN,BROWN,TRIM4#

main74236-30050-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74236-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74236-30050-04iGS120,LS120,MS120..SDX198308-198708

BLUE,BLUE,TRIM8#

main74236-30050-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74236-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74236-30050-12iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74236-30070-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74236-30070-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main74236-30070-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74236-30070-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main74236-30070-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

74240ARMREST ASSY, REAR, LH

main74210-30080-14iGS126,LS126198308-198708

BLUE,BLUE,TRIM8#

main74210-30080-16iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main74210-30080-35iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30120-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74220-30120-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74220-30120-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30121-02iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main74220-30121-04iGS120,121,LS120,MS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74220-30121-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main74260-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74260-30050-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74260-30050-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74260-30051-02iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74260-30051-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74260-30051-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74203-30030-02iGS120,LS120,MS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74203-30030-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74203-30030-05iGS120,LS120,MS120..(SED,WG)..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74203-30040-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74203-30040-04iGS121,MS123,125..SED198308-198509

BLUE,BLUE,TRIM8#

main74203-30040-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main74203-30050-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74203-30050-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74203-30050-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74203-30060-02iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74203-30060-04iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,BLUE,BLUE,TRIM8#

main74203-30060-05iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,BEIGE,BEIGE,TRIM4#

main74203-30070iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON

main74271-30071-02iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74271-30071-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74271-30071-06iGS120,LS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main74271-30081-02iGS121,MS125..SED198509-198708

MAROON,MAROON,TRIM3#

main74271-30081-04iGS121,MS125..SED198509-198708

BLUE,BLUE,TRIM8#

main74271-30081-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main74271-30091-02iGS120,121,LS120..HT198509-198708

MAROON,MAROON,TRIM3#

main74271-30091-04iGS120,121,LS120..HT198509-198708

BLUE,BLUE,TRIM8#

main74271-30091-06iGS120,121,LS120..HT198509-198708

BROWN,BROWN,TRIM4#

main74271-30101-02iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,MAROON,MAROON,TRIM3#

main74271-30101-04iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,BLUE,BLUE,TRIM8#

main74271-30101-06iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,BROWN,BROWN,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74204-30030-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74204-30030-04iGS120,LS120,MS120..SDX198308-198509

BLUE,BLUE,TRIM8#

main74204-30030-05iGS120,LS120,MS120..(SED,WG)..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74204-30040-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74204-30040-04iGS121,MS123,125..SED198308-198509

BLUE,BLUE,TRIM8#

main74204-30040-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main74204-30050-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74204-30050-04iGS120,121,LS120,MS12#..HT198308-198509

BLUE,BLUE,TRIM8#

main74204-30050-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74204-30060-02iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74204-30060-04iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,BLUE,BLUE,TRIM8#

main74204-30060-05iGS121,MS123,125..HT..ROY198308-198509

W/RR POWER SEAT,BEIGE,BEIGE,TRIM4#

main74204-30070iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON

main74272-30071-02iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74272-30071-04iGS120,LS120,MS120..SDX198509-198708

BLUE,BLUE,TRIM8#

main74272-30071-06iGS120,LS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main74272-30081-02iGS121,MS125..SED198509-198708

MAROON,MAROON,TRIM3#

main74272-30081-04iGS121,MS125..SED198509-198708

BLUE,BLUE,TRIM8#

main74272-30081-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main74272-30091-02iGS120,121,LS120..HT198509-198708

MAROON,MAROON,TRIM3#

main74272-30091-04iGS120,121,LS120..HT198509-198708

BLUE,BLUE,TRIM8#

main74272-30091-06iGS120,121,LS120..HT198509-198708

BROWN,BROWN,TRIM4#

main74272-30101-02iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,MAROON,MAROON,TRIM3#

main74272-30101-04iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,BLUE,BLUE,TRIM8#

main74272-30101-06iGS121,MS125..HT..ROY198509-198708

W/RR POWER SEAT,BROWN,BROWN,TRIM4#

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-30020-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74273-30020-04iGS120,LS120,MS120..SDX198308-198708

BLUE,BLUE,TRIM8#

main74273-30020-05iGS120,LS120,MS120..(SED,WG)..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30020-06iGS120,LS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main74273-30020-12iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74273-30030-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74273-30030-04iMS120..4FC..SDX198610-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

main74273-30030-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30030-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main74273-30030-12iGS121,MS125..SED198509-198708

MAROON,MAROON,TRIM3#

main74273-30040-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74273-30040-04iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198708

BLUE,BLUE,TRIM8#

main74273-30040-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30040-06iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

main74273-30040-12iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

main74273-30050-02iGS121,MS123,125..HT..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74273-30050-04iGS121,MS123,125..HT..ROY198308-198708

BLUE,BLUE,TRIM8#

main74273-30050-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30050-06iGS121,MS125..HT..ROY198509-198708

BROWN,BROWN,TRIM4#

main74273-30050-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-30020-02iGS120,LS120,MS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30020-04iGS120,LS120,MS120..SDX198308-198708

BLUE,BLUE,TRIM8#

main74274-30020-05iGS120,LS120..(4FC,4HC,5F)..SDX198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30020-06iGS120,LS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main74274-30020-12iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74274-30030-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30030-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

main74274-30030-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30030-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main74274-30030-12iGS121,MS125..SED198509-198708

MAROON,MAROON,TRIM3#

main74274-30040-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30040-04iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198708

BLUE,BLUE,TRIM8#

main74274-30040-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30040-06iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

main74274-30040-12iGS120,121,LS120..HT..(SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

main74274-30050-02iGS121,MS123,125..HT..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30050-04iGS121,MS123,125..HT..ROY198308-198708

BLUE,BLUE,TRIM8#

main74274-30050-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30050-06iGS121,MS125..HT..ROY198509-198708

BROWN,BROWN,TRIM4#

main74274-30050-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74225-30010-02iGS121,MS123,125..SED..4HC198308-198509

FR,W/SEAT HEATER,DEEP MAROON,RED/MAROON,TRIM3#

main74225-30010-04iGS121,MS123,125..SED..4HC198308-198708

FR,W/SEAT HEATER,BLUE,BLUE,TRIM8#

main74225-30010-05iGS121,MS123,125..SED..4HC198308-198509

FR,W/SEAT HEATER,BEIGE,BEIGE,TRIM4#

main74225-30010-06iGS121,MS125..SED..4HC198509-198708

FR,W/SEAT HEATER,BROWN,BROWN,TRIM4#

main74225-30010-12iGS121,MS125..SED..4HC198509-198708

FR,W/SEAT HEATER,MAROON,MAROON,TRIM3#

main74275-30050-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main74275-30050-04iGS120,LS120,MS120..SDX198308-198708

BLUE,BLUE,TRIM8#

main74275-30050-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74275-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74275-30050-12iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74275-30060-02iGS121,MS123,125..SED..4HC198308-198509

RR,W/SEAT HEATER,DEEP MAROON,RED/MAROON,TRIM3#

main74275-30060-04iGS121,MS123,125..SED..4HC198308-198708

RR,W/SEAT HEATER,BLUE,BLUE,TRIM8#

main74275-30060-05iGS121,MS123,125..SED..4HC198308-198509

RR,W/SEAT HEATER,BEIGE,BEIGE,TRIM4#

main74275-30060-06iGS121,MS125..SED..4HC198509-198708

RR,W/SEAT HEATER,BROWN,BROWN,TRIM4#

main74275-30060-12iGS121,MS125..SED..4HC198509-198708

RR,W/SEAT HEATER,MAROON,MAROON,TRIM3#

main74275-30090-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74275-30090-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main74275-30090-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74275-30090-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main74275-30090-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74225-30010-02iGS121,MS123,125..SED..4HC198308-198509

FR,W/SEAT HEATER,DEEP MAROON,RED/MAROON,TRIM3#

main74225-30010-04iGS121,MS123,125..SED..4HC198308-198708

FR,W/SEAT HEATER,BLUE,BLUE,TRIM8#

main74225-30010-05iGS121,MS123,125..SED..4HC198308-198509

FR,W/SEAT HEATER,BEIGE,BEIGE,TRIM4#

main74225-30010-06iGS121,MS125..SED..4HC198509-198708

FR,W/SEAT HEATER,BROWN,BROWN,TRIM4#

main74225-30010-12iGS121,MS125..SED..4HC198509-198708

FR,W/SEAT HEATER,MAROON,MAROON,TRIM3#

main74276-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74276-30050-04iGS120,LS120,MS120..SDX198308-198708

BLUE,BLUE,TRIM8#

main74276-30050-05iGS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74276-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main74276-30050-12iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74276-30060-02iGS121,MS123,125..SED..4HC198308-198509

RR,W/SEAT HEATER,DEEP MAROON,RED/MAROON,TRIM3#

main74276-30060-04iGS121,MS123,125..SED..4HC198308-198708

RR,W/SEAT HEATER,BLUE,BLUE,TRIM8#

main74276-30060-05iGS121,MS123,125..SED..4HC198308-198509

RR,W/SEAT HEATER,BEIGE,BEIGE,TRIM4#

main74276-30060-06iGS121,MS125..SED..4HC198509-198708

RR,W/SEAT HEATER,BROWN,BROWN,TRIM4#

main74276-30060-12iGS121,MS125..SED..4HC198509-198708

RR,W/SEAT HEATER,MAROON,MAROON,TRIM3#

main74276-30090-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74276-30090-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main74276-30090-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main74276-30090-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main74276-30090-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

9016460019

main90164-60019

9016840025

main90168-40025

9016840068

main90168-40068

9018304057

main90183-04057

9018906018

main90189-06018

9018906024

main90189-06024

9046710012

main90467-10012

26 parts on this diagram · 3 diagrams in section
