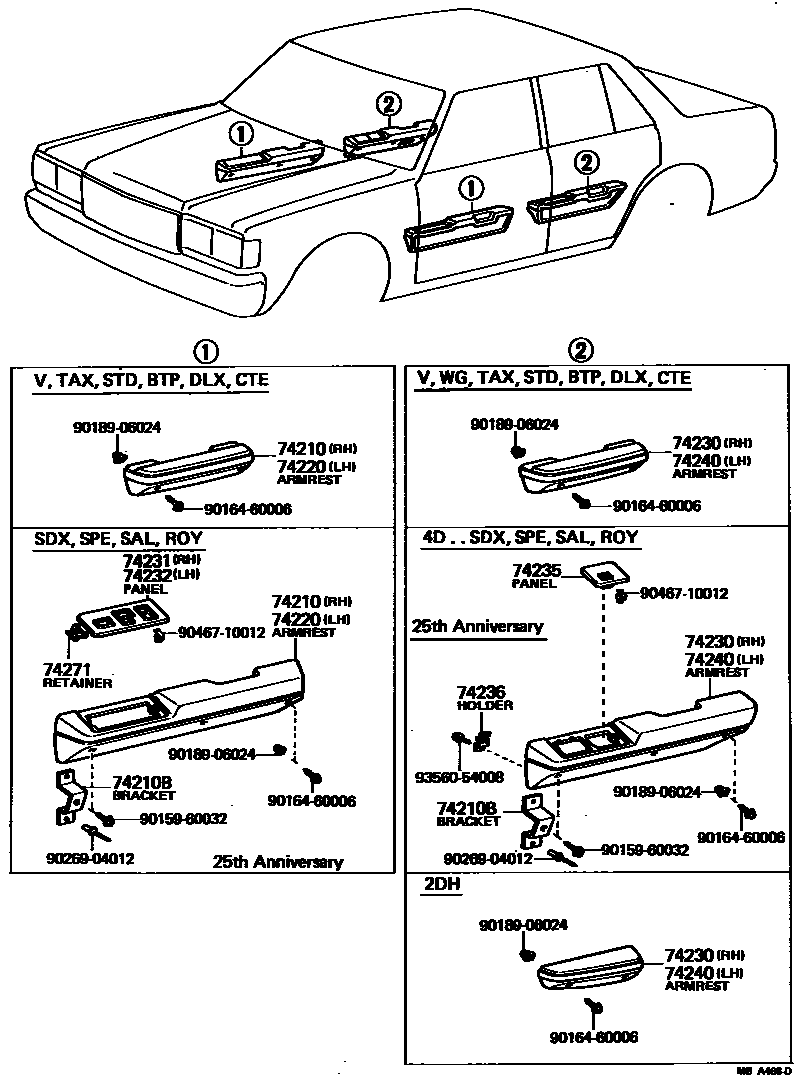

Toyota CROWN — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM8#
25TH ANNIVERSARY,DARK WINE,RED/MAROON,TRIM3#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
74210BBRACKET, ARMREST SET
25TH ANNIVERSARY
74220ARMREST ASSY, FRONT, LH
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
25TH ANNIVERSARY,DARK WINE,RED/MAROON,TRIM3#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
74230ARMREST ASSY, REAR, RH
DARK WINE,RED/MAROON,TRIM3#
main74210-30080-03iGS110..ATM..DLX;LS110..CTE,DLX,STD,TAX;GS110..(HT,WG)..(CTE,DLX,SDX);GS117,LS117,MS110,117,RS110..CBR,DSL,EFI,LPG198108-198307
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
main74210-30080-15iGS110..ATM..DLX;LS110..CTE,DLX,STD,TAX;GS110..(HT,WG)..(CTE,DLX,SDX);GS117,LS117,MS110,117,RS110..CBR,DSL,EFI,LPG198108-198307
BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
25TH ANNIVERSARY
74232PANEL, FRONT ARMREST BASE, UPPER LH
25TH ANNIVERSARY
74235PANEL, REAR ARMREST BASE, UPPER
RH
RH
RH
RH,W/LEATHER SEAT
RH
LH
LH
LH
LH,W/LEATHER SEAT
LH
74236HOLDER, REAR ASH RECEPTACLE
74240ARMREST ASSY, REAR, LH
DARK WINE,RED/MAROON,TRIM3#
main74210-30080-03iGS110..ATM..DLX;LS110..CTE,DLX,STD,TAX;GS110..(HT,WG)..(CTE,DLX,SDX);GS117,LS117,MS110,117,RS110..CBR,DSL,EFI,LPG198108-198307
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
main74210-30080-15iGS110..ATM..DLX;LS110..CTE,DLX,STD,TAX;GS110..(HT,WG)..(CTE,DLX,SDX);GS117,LS117,MS110,117,RS110..CBR,DSL,EFI,LPG198108-198307
BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
74271RETAINER, DOOR ARMREST
25TH ANNIVERSARY
9015960032
main90159-60032
9016460006
main90164-60006
9018906024
main90189-06024
9026904012
main90269-04012
9046710012
main90467-10012
9356054008
main93560-54008
16 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota CROWN
This section contains 33 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CROWN. Key components include: ARMREST ASSY, FRONT, RH, BRACKET, ARMREST SET, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
