Toyota CROWN — ANTENNA

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86101CORD SUB-ASSY, ANTENNA

main86101-30210i198308-198708

main86101-91707i198308-198708

NO.1

main86101-91709i198308-198708

NO.2

86300ANTENNA ASSY, W/HOLDER

main86300-30250i198308-198708

86300AANTENNA SET

main86300-39095i198308-198708

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30260i198509-198708

main86300-30270i198308-198708

main86300-30280i198308-198708

G SPEC

main86300-30290i198608-198708

W/*58

main86300-30300i198308-198509

W/MOON ROOF

main86300-30310i198308-198708

W/MOON ROOF

main86300-30320i198308-198408

G SPEC,W/MOON ROOF

main86300-30330i198608-198708

W/*58 & W/MOON ROOF

86372TUBE, ANTENNA VINYL

main86105-30010i198308-198708

86393ORNAMENT, ANTENNA

main86392-30010i198308-198708

86396NUT, ANTENNA

main86396-12020i198308-198708

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

8281791603PROTECTOR, WIRING HARNESS, NO.1

main82817-91603

8639422010

main86394-22010

9011906005

main90119-06005

9046304027

main90463-04027

9048026019

main90480-26019

9354015010

main93540-15010

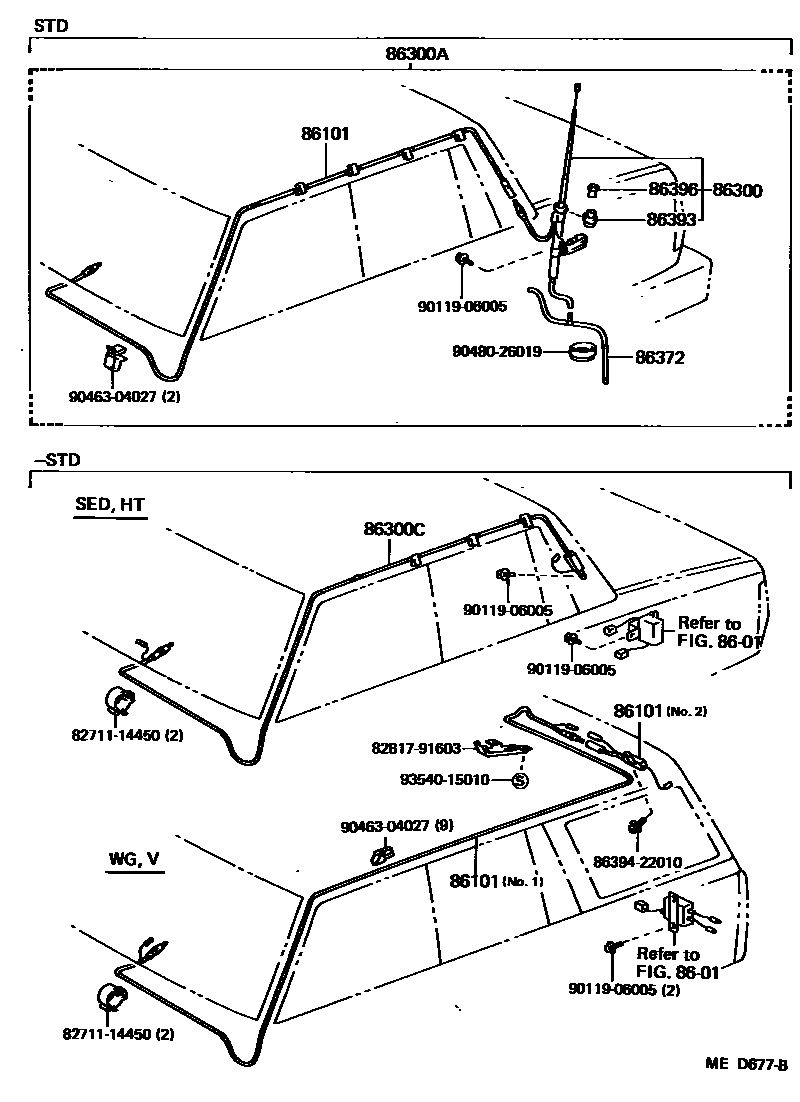

15 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CROWN

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota CROWN. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA SET, ANTENNA ASSY, AMPLIFIER, NO.2.
