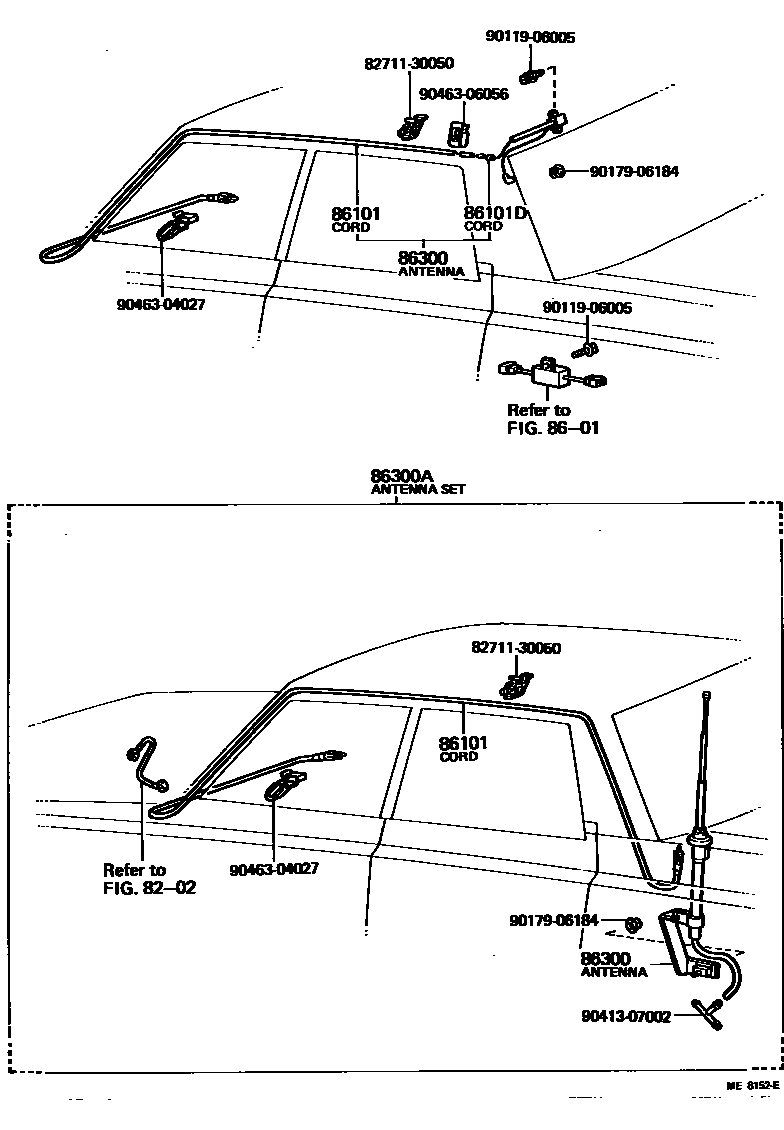

Toyota CROWN — ANTENNA
8202WIRING & CLAMP
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86101CORD SUB-ASSY, ANTENNA
W/POLE ANTENNA
W/SUN ROOF
W/SUN ROOF
W/RR WINDOW,DEFFOGGER,L=3680
W/POLE ANTENNA
W/O RR WINDOW DEFFOGER,L=3810
86101DCORD SUB-ASSY, ANTENNA, NO.3
NO.2,L=490
NO.1,L=210
86300ANTENNA ASSY, W/HOLDER
POLE ANTENNA
W/SUN ROOF
W/SUN ROOF
POLE ANTENNA
86300AANTENNA SET
W/POLE ANTENNA
W/POLE ANTENNA
8271130050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-30050
9011906005
main90119-06005
9017906184
main90179-06184
9041307002
main90413-07002
9046304027
main90463-04027
9046306056
main90463-06056
12 parts on this diagram · 2 diagrams in section
ANTENNA for Toyota CROWN
This section contains 19 genuine Toyota parts for the ANTENNA system of the Toyota CROWN. Key components include: WIRING & CLAMP, RADIO RECEIVER & AMPLIFIER & CONDENSER, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, ANTENNA ASSY, W/HOLDER.
