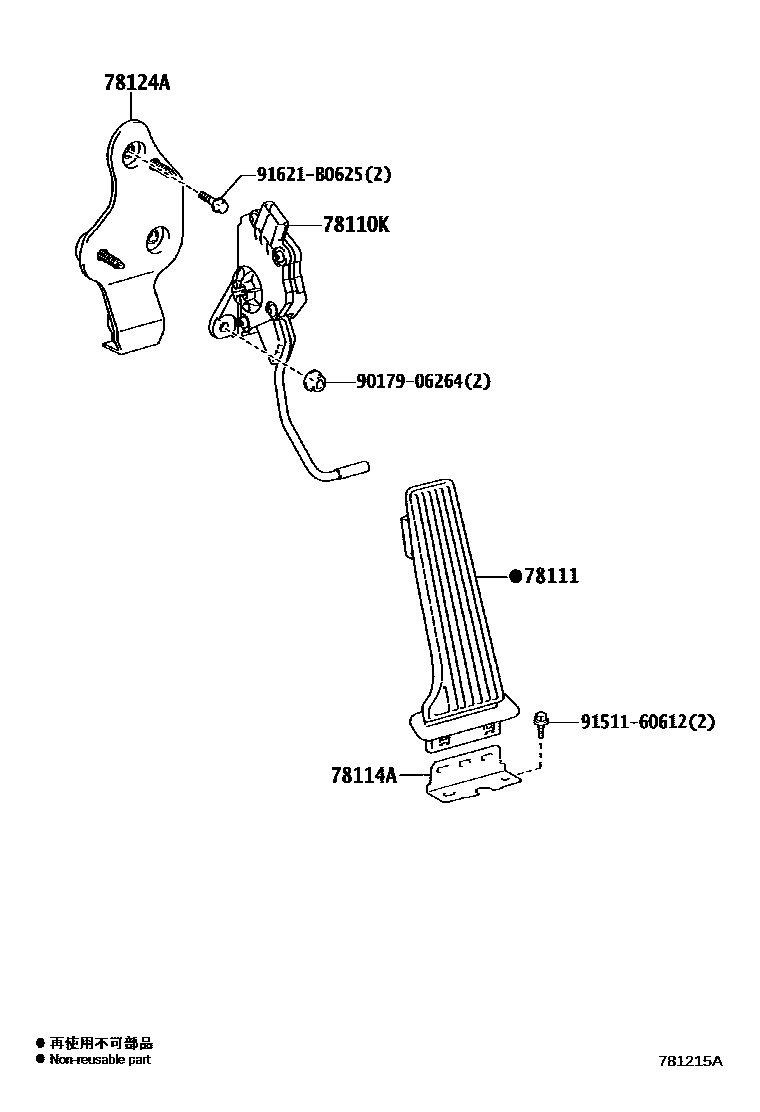

Toyota CROWN — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30130iGRS20#,GWS204200802-201002

sub78110-30131

78111PEDAL, ACCELERATOR

main78111-30130iGRS20#,GWS204200802-201002

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-30130iGRS20#,GWS204200802-201002

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30120iGRS20#,GWS204200802-201002

9017906264

main90179-06264

9151160612

main91511-60612

91621B0625

main91621-B0625

7 parts on this diagram · 1 diagram in section
