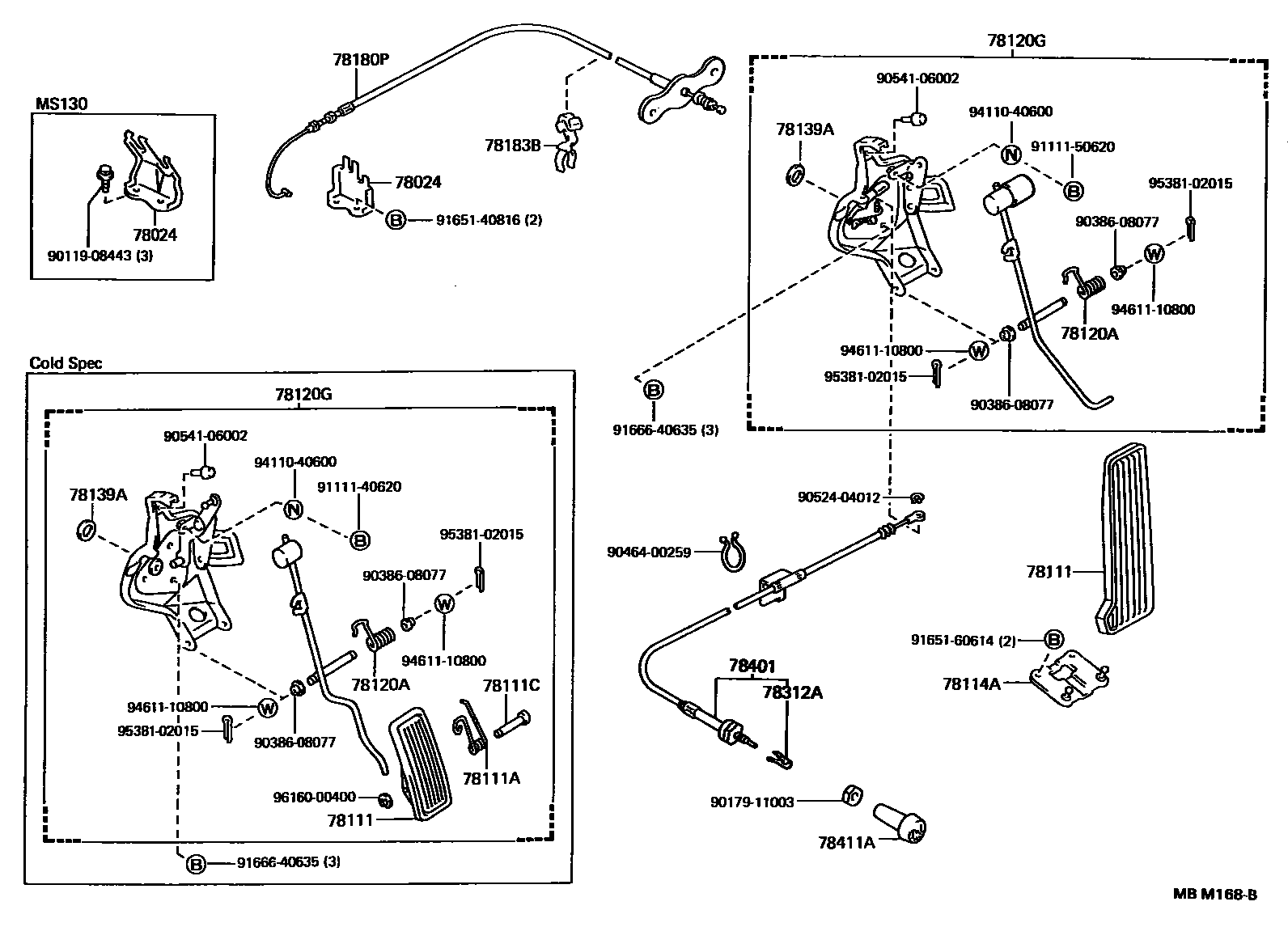

Toyota CROWN — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22080iGS130,YS130..LPEFI,LPG,TWLPG198709-199110

main78024-22150iGS130,131..SPC198809-199110

main78024-30010iMS130198709-198908

main78024-30020iGS13#..EFI198709-198908

main78024-30041iLS13#198709-198908

main78024-30100iGS13#..HTWC198809-199110

sub78024-30101

main78024-30110iMS135,137198709-199110

main78024-30120iGS130,131..SPC198709-198809

main78024-30140iLS13#..DSL,TD198908-199009

main78024-30141iLS13#..DSL,TD199009-199110

sub78024-30142

main78024-30150iLS130,131..TDE198908-199009

main78024-30151iLS130,131..TDE199009-199110

sub78024-26020

main78024-88300iGS131..TWC198709-198809

78111PEDAL, ACCELERATOR

main78111-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

sub78111-30081

main78111-30090iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18071iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05043iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18016iLS13#;GS130..4H..TWLPG;GS130,131,JZS13#,MS13#,UZS131..ATM198809-199110

main90508-18066iLS13#;GS130,131,MS13#..ATM198709-198809

main90508-23026×2iGS130,131..5F..(ROY,SAL,SALEX)198809-199110

main90508-23101×2iLS13#;GS130,131,MS13#..ATM198709-198809

main90508-28003iYS130198709-198809

main90508-29010iGS13#..MTM..(EFI,HTWC,TWC)198809-199110

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30510iYS130198709-198809

main78120-30511iYS130198809-199110

main78120-30520iYS130198709-198809

main78120-30521iYS130198809-198908

main78120-30531iGS13#..MTM..(HTWC,TWC)198809-199110

main78120-30540iGS130,131..ATM..(EFI,TWC);GS131,LS13#..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE)198709-198809

main78120-30541iLS13#..MTM;GS131..SSL..SPC;GS131..ATM..(HTWC,TWC);GS130,MS135,UZS131..ATM..(DLX,ROYG,SALEX,SDX)..(HTWC,TWC)198908-199110

main78120-30550iGS130,131..ATM..(EFI,TWC);GS131,LS13#..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE)198709-198809

main78120-30551iGS131..SSL..SPC;JZS13#,LS13#,UZS131;GS131..ATM..(EFI,HTWC,TWC);GS130,MS135..ATM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC,TWC)198809-199110

main78120-30560iGS13#..MTM198709-198809

main78120-30561iGS13#..MTM..EFI198809-198908

main78120-30580iMS130..ATM198709-198809

main78120-30581iMS130..ATM198809-198908

main78120-30590iMS130..4H198709-198809

main78120-30591iMS130..4H198809-198908

main78120-30600iGS131..ROY..SPC;GS130,MS135,137..SPC,TWC198709-198809

main78120-30601iGS131..ROY..SPC;GS130,MS135,137..ROY,ROYG198809-199110

main78120-30610iGS130,131..5F..(ROY,SAL,SALEX)198709-198809

main78120-30611iGS130,131..5F..(SAL,SALEX)..EFI198809-198908

main78120-30620iMS130198709-198809

main78120-30621iMS130198809-198908

main78120-30630iGS13#..MTM198709-198809

main78120-30631iGS13#..MTM..EFI198809-198908

main78120-30640iGS131..ROY..SPC;GS130,MS135,137..SPC,TWC198709-198809

main78120-30641iGS130,131,LS130..(ROY,SAL,SALEX)..(EFI,HTWC,TDE,TWC)198809-198908

main78120-30691iGS13#..MTM..(HTWC,TWC)198809-199110

main78120-30701iGS130,131..5F..(ROY,SAL,SALEX)..(HTWC,TWC)198809-199110

main78120-30710iGS130..TWLPG198908-199110

main78120-30720iGS130,YS130..LPEFI,TWLPG198908-199110

main78120-30730iJZS13#,LS13#..ATM198908-199110

main78120-30740iLS130,131..SALEX198908-199110

78139ASEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2

main78139-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-30730iGS130,131..HTWC198809-198908

main78180-30731iGS13#..HTWC198908-199110

main78180-30740iLS13#198709-198908

main78180-30750iYS130198807-198908

main78180-30751iYS130198908-199110

main78180-30770iMS130198709-198908

main78180-30780iGS13#..EFI198709-198908

main78180-30820iLS13#198908-199008

main78180-30821iLS130..SED199008-199110

main78180-30850iUZS131198908-199110

main78180-30870iYS130198709-198807

main78180-3A020iGS131..ROY..SPC198908-199110

main78180-3A030iMS135..ROY198908-199110

main78180-3A110iGS131..TWC198709-198908

main78180-3A111iGS131..TWC198908-199110

main78180-3A140iGS130..TWLPG198908-199110

sub78180-3A400

main78180-3A230iGS130,131..SPC198908-199110

main78180-3A250iMS135198908-199110

main78180-3A270iJZS13#199008-199110

main78180-3A290iJZS131..ROY199008-199110

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30070iGS13#,JZS13#,LS13#,MS135,YS130198908-199110

main78183-30090iGS130,131,LS13#,MS13#,YS130..DSL,LPG,SPC,TD,TDE,TWC198709-198804

main78183-30091iGS130,131,LS13#,MS13#,YS130..DSL,HTWC,LPG,SPC,TD,TDE,TWC198804-198908

78312ACLIP, CHOKE CONTROL

main78312-12010iGS130,MS130,YS130..LPEFI,LPG,TWLPG198709

78401CABLE SUB-ASSY, THROTTLE CONTROL

main78401-30100iGS130,MS130,YS130..LPEFI,LPG,TWLPG198709

sub78401-30130

sub78311-10041

sub90179-11004

78411AKNOB, THROTTLE CONTROL CABLE

main78411-30031iGS130,MS130,YS130..LPEFI,LPG,TWLPG198709

9011908443

main90119-08443

9017911003

main90179-11003

9038608077

main90386-08077

9046400259

main90464-00259

9052404012

main90524-04012

9054106002

main90541-06002

9111140620

main91111-40620

9111150620

main91111-50620

9165140816

main91651-40816

9165160614

main91651-60614

9166640635

main91666-40635

9411040600

main94110-40600

9461110800

main94611-10800

9538102015

main95381-02015

9616000400

main96160-00400

28 parts on this diagram · 7 diagrams in section
