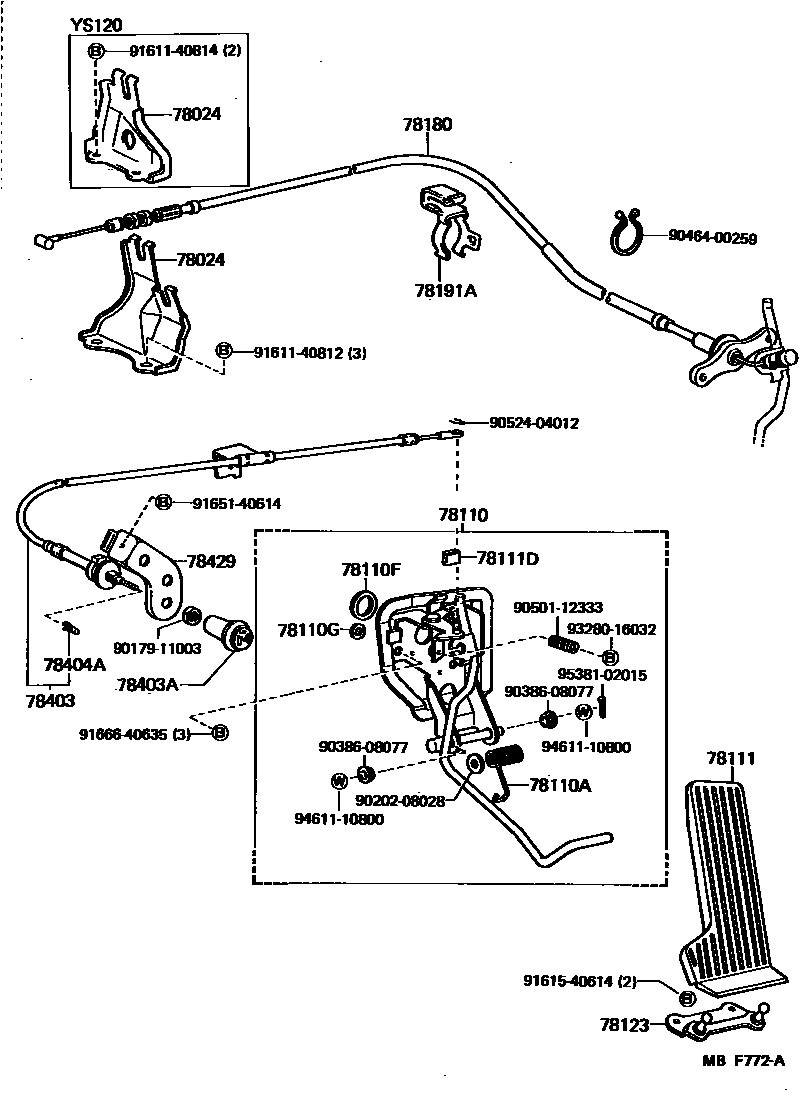

Toyota CROWN — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14010iGS121198308-198509

main78024-30010iMS120..LPG198308-198708

main78024-30020iGS120,126198308-198708

main78024-30030iMS123,125198308-198708

main78024-30040iLS12#198308-198401

main78024-30041iLS12#198401-198708

main78024-30070iGS121198509-198708

main78184-30070iMS120..TBO198308-198509

main78184-30110iYS120198308-198708

78110ROD ASSY, ACCELERATOR PEDAL

main78120-30340iGS120,121,LS120,MS12#..ROY,SAL198308-198708

W/AUTO DRIVE,COLD SPEC

main78120-30350iLS120..SAL..TD198308-198405

W/AUTO DRIVE

main78120-30360iMS120..4H198308-198501

main78120-30370iMS120..ATM..LPG198308-198501

main78120-30400iLS12#..MTM198308-198501

main78120-30410iGS12#..MTM198308-198501

main78120-30420iGS120,121,LS120,MS12#..ATM..(ROY,SAL)198308-198708

W/AUTO DRIVE

main78120-30430iLS120..SAL..TD198501-198509

W/AUTO DRIVE

main78120-30440iMS120198509-198708

COLD SPEC

main78120-30450iGS12#,LS12#,MS120..MTM198308-198406

COLD SPEC

main78120-30460iGS120,121,LS12#..ATM198412-198501

main78120-30470iYS120198308-198708

main78120-30490iYS120198308-198708

COLD SPEC

main78120-30500iGS120,121,LS12#..ATM198412-198501

COLD SPEC

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18016iGS120,121,LS120,MS12#..ATM..(ROY,SAL)198308-198708

W/AUTO DRIVE

main90508-23026iGS120,121,LS120,MS12#..ROY,SAL198308-198708

W/AUTO DRIVE,COLD SPEC

main90508-29010iGS12#..MTM198308-198708

W/AUTO DRIVE

main90508-29011iGS12#,LS12#,YS120..MTM198406-198608

COLD SPEC

78110FSEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)

main78129-30050iGS12#,LS12#,MS12#,YS120198308-198708

78110GSEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)

main78139-30050×3iGS12#,LS12#,MS12#,YS120198308-198708

78111PEDAL, ACCELERATOR

main78111-12100iGS12#,LS12#,MS12#,YS120198308-198708

COLD SPEC

main78111-30080iGS12#,LS12#,MS12#,YS120198308-198708

sub78111-30081

78111DSTOPPER (FOR ACCELERATOR PEDAL)

main78119-30050iGS12#,LS12#,MS12#,YS120198308-198708

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS12#,LS12#,MS12#,YS120198308-198708

78180WIRE ASSY, ACCELERATOR

main78180-30400iGS120,126198308-198708

main78180-30430iGS121198308-198708

main78180-30450iMS123,125198308-198708

main78180-30570iLS12#198308-198708

main78180-30590iYS120198308-198708

main78180-30600iMS120..LPG198308-198708

main78180-30610iMS120..TBO198308-198509

main78180-30690iGS120..4H..DLX198308-198509

TAXI SPEC

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78183-30070iGS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC198308-198708

main78183-30080iMS120..TBO198308-198509

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78401-30070iMS120,YS120..LPG198308-198708

78403AKNOB, THROTTLE CONTROL

main78411-30031iMS120,YS120..LPG198308-198708

78404ACLIP, THROTTLE FLEXIBLE WIRE

main78312-12010iMS120,YS120..LPG198308-198708

78429BRACKET, THROTTLE ROD

main78371-30060iMS120,YS120..LPG198308-198708

9017911003

main90179-11003

9020208028

main90202-08028

9038608077

main90386-08077

9046400259

main90464-00259

9050112333

main90501-12333

9052404012

main90524-04012

9161140812

main91611-40812

9161140814

main91611-40814

9161540614

main91615-40614

9165140614

main91651-40614

9166640635

main91666-40635

9328016032

main93280-16032

9461110800

main94611-10800

9538102015

main95381-02015

28 parts on this diagram · 6 diagrams in section
