Toyota CROWN — ABS & VSC

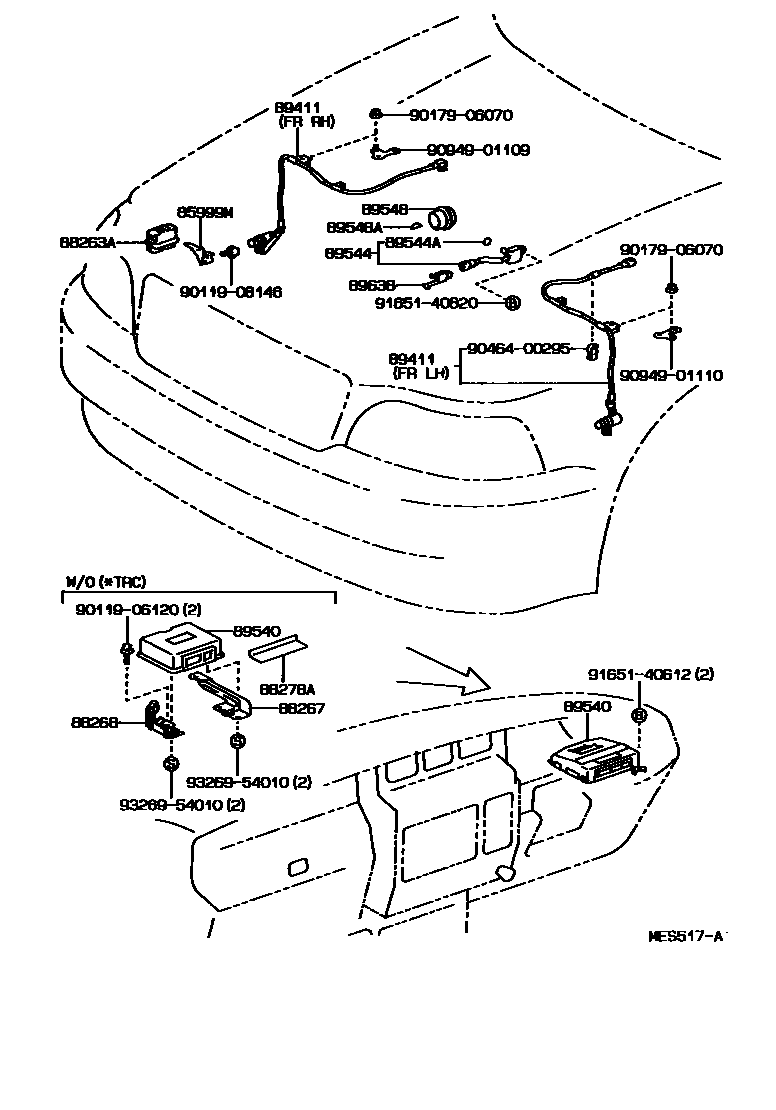

Parts diagram

85999MBRACKET, RELAY

main85999-30410i199110-199308

main85999-30450i199308

main85999-30460i199512

88263ARELAY, SKID CONTROL

main88263-12070i199110-199308

main88263-35070i199308

SKID

main88263-35090i199512

main89633-50030i199308

TRACTION

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-30150i199308-199512

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-30140i199308-199512

88278ACUSHION, SKID CONTROL COMPUTER

main88278-30150i199308-199512

89411SENSOR, SPEED

main89542-30140i199110-199512

FRONT RH

main89542-30141i199512

FRONT RH

main89542-30150i199110-199512

FRONT RH

main89543-30140i199512

FRONT LH

main89543-30150i199110-199512

FRONT LH

89540COMPUTER ASSY, SKID CONTROL

main89540-30140i199110-199308

main89541-30060i199308-199512

89544SENSOR, SKID CONTROL

main89544-30010i199110-199512

89544ARING, O (FOR SKID CONTROL SENSOR)

main90301-11008i199110-199512

89548ROTOR, SKID CONTROL SENSOR

main89548-14010i199110-199512

main89548-22010i199512

89548AKEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR)

main90280-03005i199110-199512

89638COVER, BRAKE CONTROL COMPUTER

main89638-30010i199110-199512

9011906120

main90119-06120

9011908146

main90119-08146

9017906070

main90179-06070

9046400295

main90464-00295

9094901109

main90949-01109

9094901110

main90949-01110

9165140612

main91651-40612

9165140820

main91651-40820

9326954010

main93269-54010

21 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota CROWN

This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota CROWN. Key components include: BRACKET, RELAY, RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, CUSHION, SKID CONTROL COMPUTER.
