Toyota CROWN — ABS & VSC

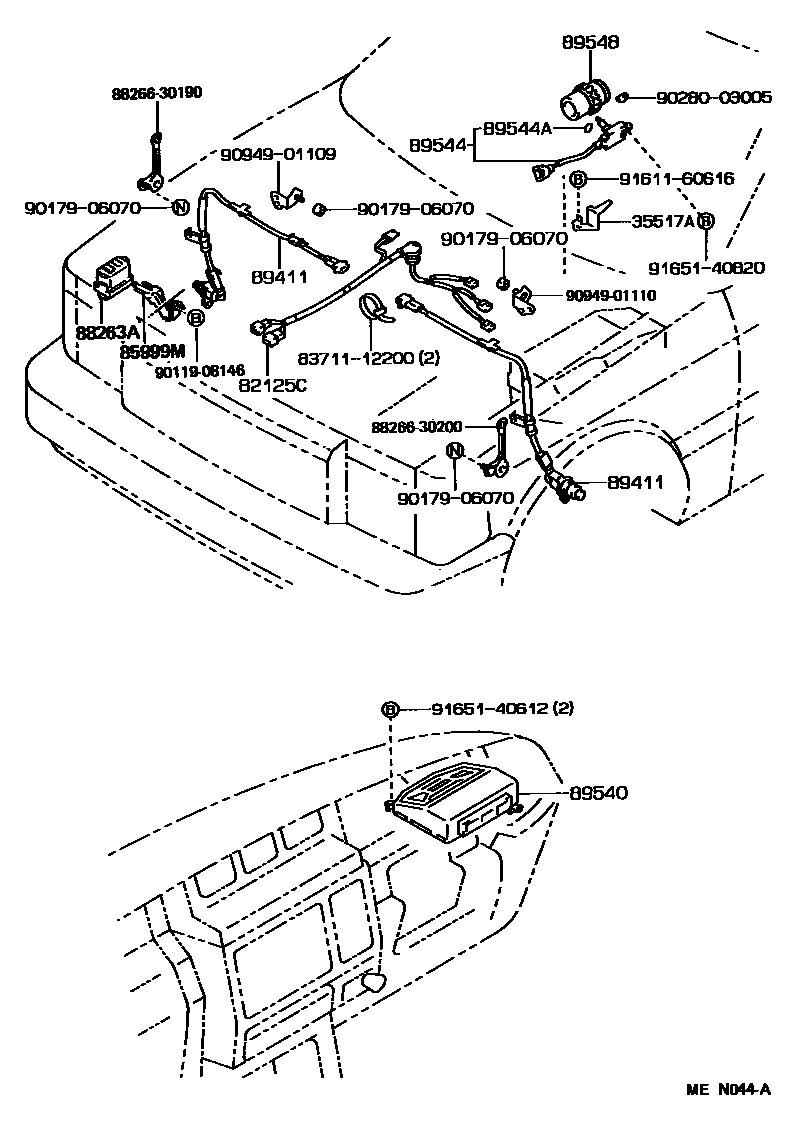

Parts diagram

35517APLATE, TRANSMISSION WIRE LOCK

main35517-30010i198709-199110

82125CWIRE, TRANSMISSION

main82125-30090i198709-199110

85999MBRACKET, RELAY

main85999-30330i198908-199110

88263ARELAY, SKID CONTROL

main88263-12070i198908-199110

main88263-30130i198709-198908

89411SENSOR, SPEED

main89542-30050i198709-198809

main89542-30070i198709-198809

main89542-30080i198809-198812

main89542-30100i198812-198908

main89542-30110i198809-198812

main89542-30130i198709-198809

main89542-30140i198908-199110

main89542-30150i198908-199110

main89543-30050i198709-198809

main89543-30070i198709-198809

main89543-30080i198809-198812

main89543-30100i198809-198812

main89543-30110i198809-198812

main89543-30130i198709-198809

main89543-30140i198908-199110

LH

main89543-30150i198908-199110

89540COMPUTER ASSY, SKID CONTROL

main89540-30130i198709-198908

main89540-30140i198908-199110

89544SENSOR, SKID CONTROL

main89544-30010i198709-199110

main89544-30020i198908-199110

89544ARING, O (FOR SKID CONTROL SENSOR)

main90301-11008i198709-199110

89548ROTOR, SKID CONTROL SENSOR

main89548-14010i198709-199110

8371112200

main83711-12200

8826630190CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-30190

8826630200CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-30200

9011908146

main90119-08146

9017906070

main90179-06070

9028003005

main90280-03005

9094901109

main90949-01109

9094901110

main90949-01110

9161160616

main91611-60616

9165140612

main91651-40612

9165140820

main91651-40820

20 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CROWN

This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota CROWN. Key components include: PLATE, TRANSMISSION WIRE LOCK, WIRE, TRANSMISSION, BRACKET, RELAY, RELAY, SKID CONTROL, SENSOR, SPEED.
