Toyota CROWN — ABS & VSC

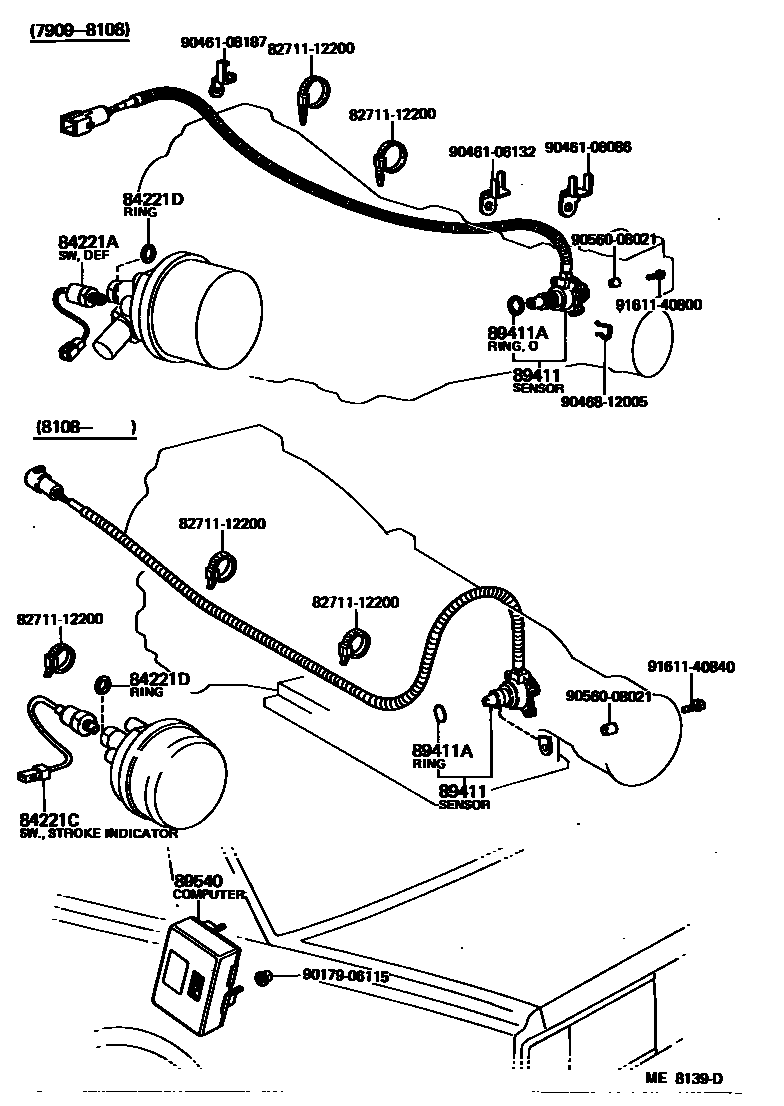

Parts diagram

84221ASWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC)

main84220-12050i197909-198108

84221CSWITCH, STOROKE INDICATOR (FOR ESC)

main84221-24010i198108-198307

84221DRING, O (FOR ESC STROKE INDICATOR SWITCH)

main96710-01010i197909-198108

89411SENSOR, SPEED

main89411-24010i198108-198307

main89411-30060i197909-198010

main89411-30061i198010-198108

main89411-30070i197909-198108

89411ARING, O (FOR SPEED SENSOR)

main90301-18018i198108-198307

89540COMPUTER ASSY, SKID CONTROL

main89540-30050i197909-198108

main89540-30060i197909-198108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906115

main90179-06115

9046106086

main90461-06086

9046106132

main90461-06132

9046108187

main90461-08187

9046812005

main90468-12005

9056008021

main90560-08021

9161140800

main91611-40800

9161140840

main91611-40840

15 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CROWN

This section contains 15 genuine Toyota parts for the ABS & VSC system of the Toyota CROWN. Key components include: SWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC), SWITCH, STOROKE INDICATOR (FOR ESC), RING, O (FOR ESC STROKE INDICATOR SWITCH), SENSOR, SPEED, RING, O (FOR SPEED SENSOR).
