Toyota CROWN — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30480iGRS182200411-200504

main85110-30481iGRS182200505-200509

sub85110-30482

main85110-30510iGRS182200509-200608

main85110-30511iGRS182200609-200802

85160LINK ASSY, WINDSHIELD WIPER

main85150-30540iGRS182200411-200509

main85150-30620iGRS182200509-200608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRS182200411-200509

85211BARM, FRONT WIPER, RH

main85211-30620iGRS182200411-200509

main85211-30690iGRS182200509-200802

85212ABLADE, FR WIPER, RH

main85212-30370iGRS182200411-200509

85214ARUBBER, WIPER, RH

main85214-50100iGRS182200411-200509

85214BRUBBER, WIPER, LH

main85214-46010iGRS182200411-200508

main85214-46011iGRS182200509-200802

85221BARM, FRONT WIPER, LH

main85221-30520iGRS182200411-200509

85222ABLADE, FR WIPER, LH

main85222-46010iGRS182200411-200508

main85222-46011iGRS182200509-200802

9011906941

main90119-06941

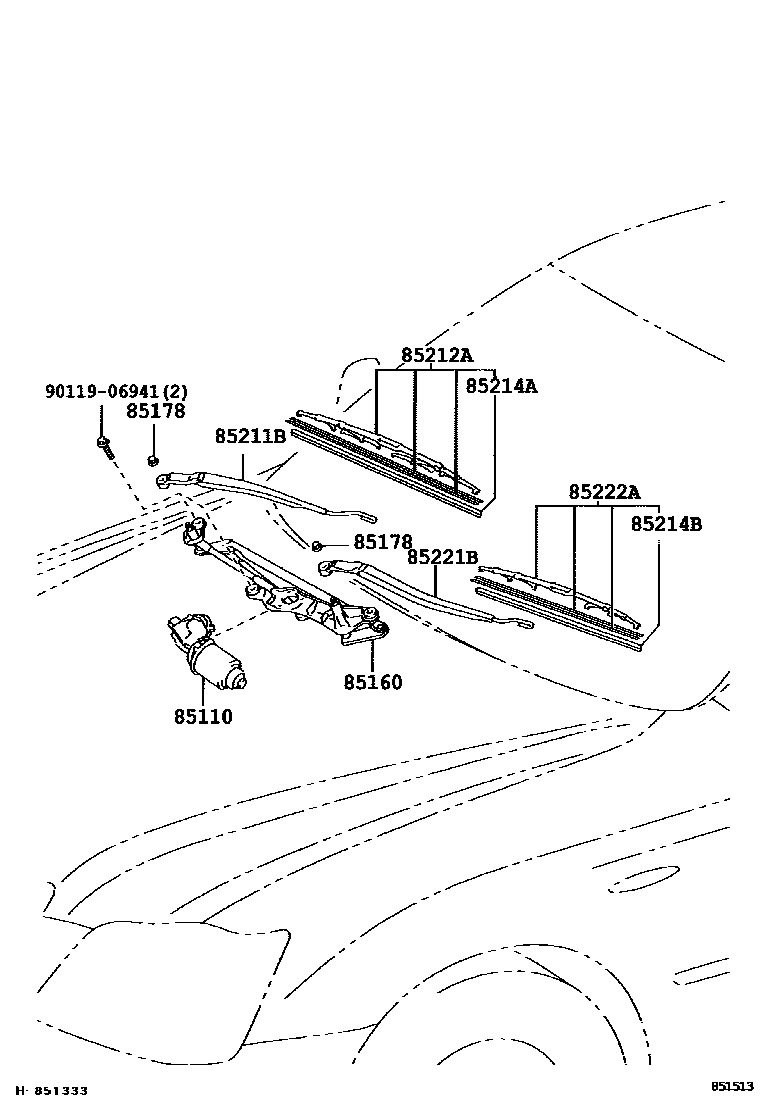

10 parts on this diagram · 2 diagrams in section
