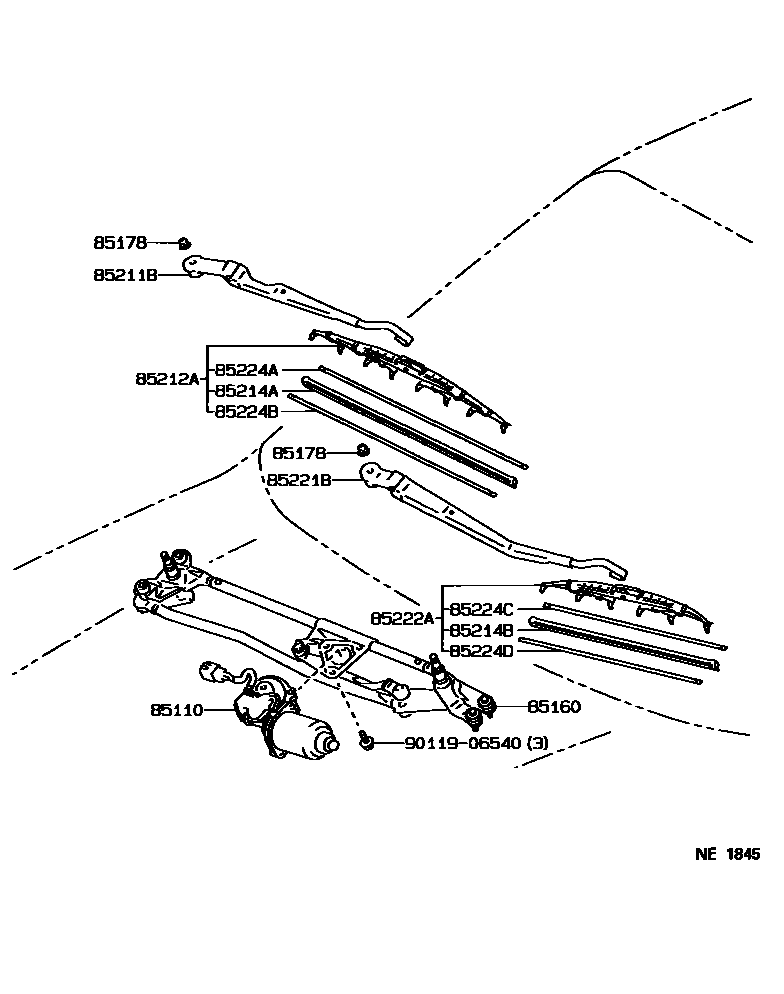

Toyota CROWN — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30380iGS151,JZS155..RHD199512-199909

main85110-30400iJZS155..LHD199512-200108

85160LINK ASSY, WINDSHIELD WIPER

main85150-30400iGS151,JZS155..RHD199512

sub85150-30450

main85150-30440iJZS155..LHD199512

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08051×2iGS151,JZS155199512

85211BARM, FRONT WIPER, RH

main85211-30480iGS151,JZS155..RHD199512

main85211-30490iJZS155..LHD199512

85212ABLADE, FR WIPER, RH

main85212-30241iGS151,JZS155..RHD199512

main85212-30310iJZS155..LHD199512

sub85212-16120

85214ARUBBER, WIPER, RH

main85214-20330iJZS155..LHD199512

main85214-30250iGS151,JZS155..RHD199512

85214BRUBBER, WIPER, LH

main85214-20320iGS151,JZS155..RHD199512

main85214-30260iJZS155..LHD199512

85221BARM, FRONT WIPER, LH

main85221-30370iGS151,JZS155..RHD199512

main85221-30380iJZS155..LHD199512

85222ABLADE, FR WIPER, LH

main85222-30470iGS151,JZS155..RHD199512

sub85222-60100

main85222-30500iJZS155..LHD199512

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iGS151,JZS155..RHD199512

main85224-60050iJZS155..LHD199512

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iGS151,JZS155..RHD199512

main85224-60050iJZS155..LHD199512

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30380iJZS155..LHD199512

main85224-60050iGS151,JZS155..RHD199512

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30380iJZS155..LHD199512

main85224-60050iGS151,JZS155..RHD199512

9011906540

main90119-06540

14 parts on this diagram · 1 diagram in section
