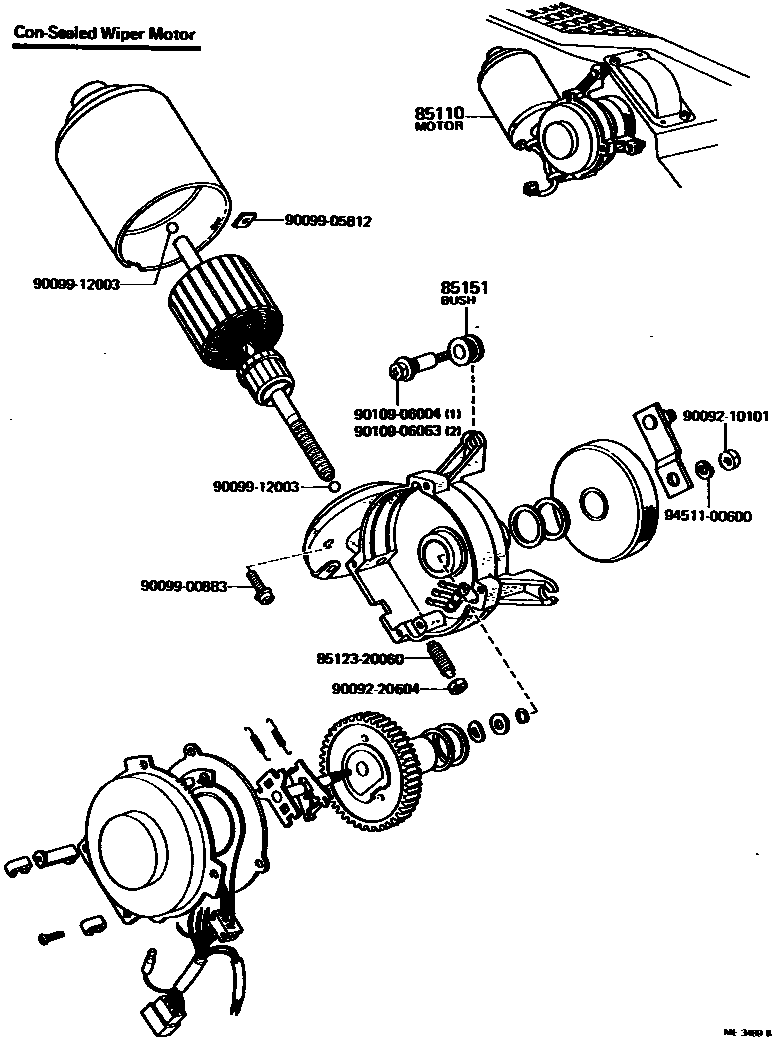

Toyota CROWN — WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30080iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

main85110-30090iMS85..RHD..ROY197511-197908

main85110-30100iMS8#,95,RS80..LHD197410-197908

main85110-30120iMS8#,95,RS80..LHD197410-197908

HEAVY DUTY MOTOR

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-20040×3iMS8#,95,RS80197410-197908

sub85151-22070

8512320060SUPPORTER, WINDSHIELD WIPER MOTOR SHAFT

main85123-20060

9009210101

main90092-10101

9009220604

main90092-20604

9009900883

main90099-00883

9009905812

main90099-05812

9009912003

main90099-12003

9010906004

main90109-06004

9010906063

main90109-06063

9451100600

main94511-00600

11 parts on this diagram · 3 diagrams in section
