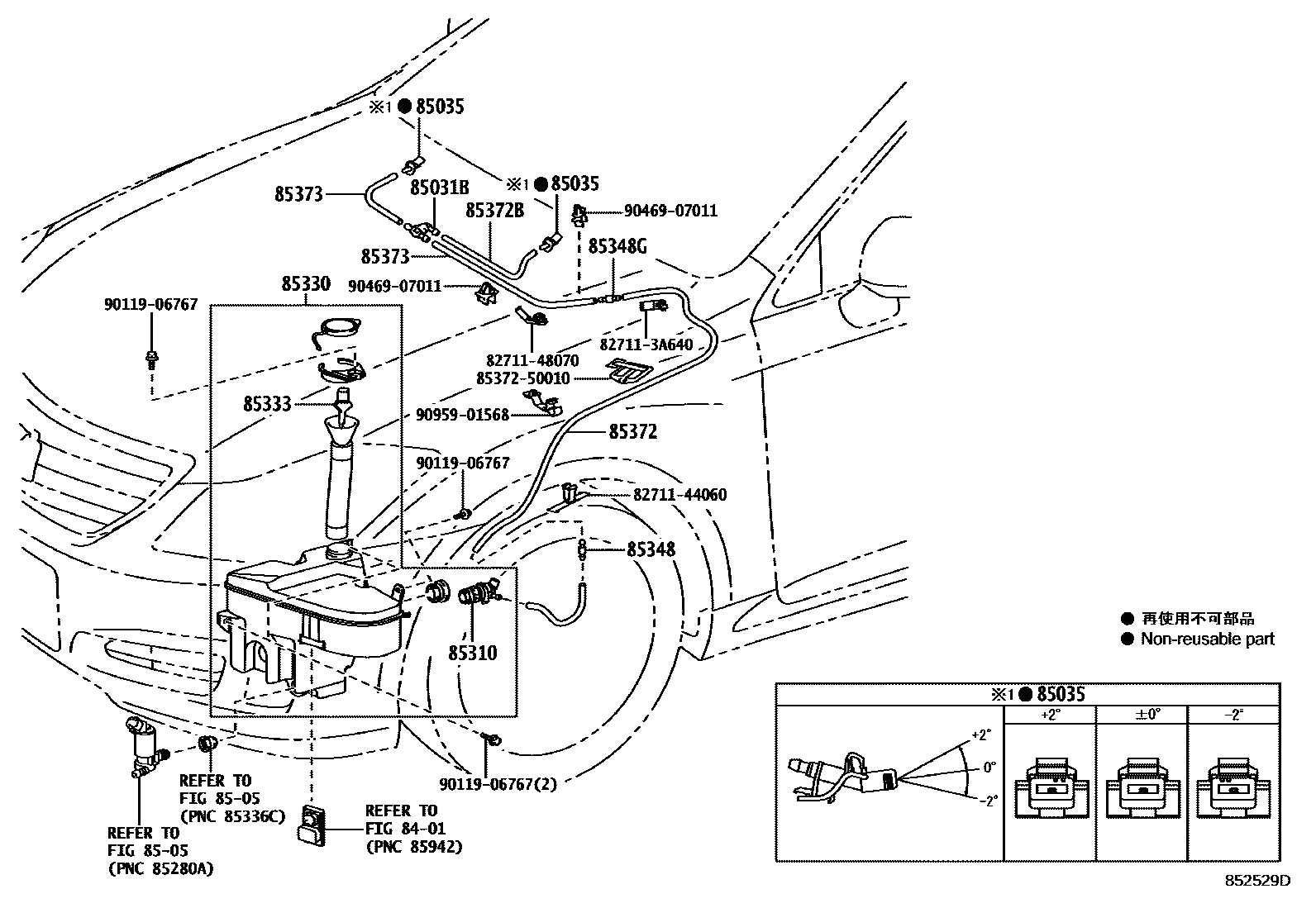

Toyota CROWN — WINDSHIELD WASHER

8401

85031BVALVE SUB-ASSY, WASHER

main85321-28020iGRS202201009-201212

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2iGRS202201009-201212

ANGLE 0

main85381-12310×2iGRS202201009-201212

ANGLE -2

main85381-12320×2iGRS202201009-201212

ANGLE +2

8505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iGRS202201009-201212

sub85330-0D100

85330JAR ASSY, WINDSHIELD WASHER

main85355-30051iGRS202201009-201212

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080iGRS202201009-201212

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGRS202201009-201212

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iGRS202201009-201212

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iGRS202201009-201212

L=1720

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62063iGRS202201009-201212

L=450

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62065×2iGRS202201009-201212

L=350

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48070

8537250010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-50010

9011906767

main90119-06767

9046907011

main90469-07011

9095901568

main90959-01568

19 parts on this diagram · 1 diagram in section
