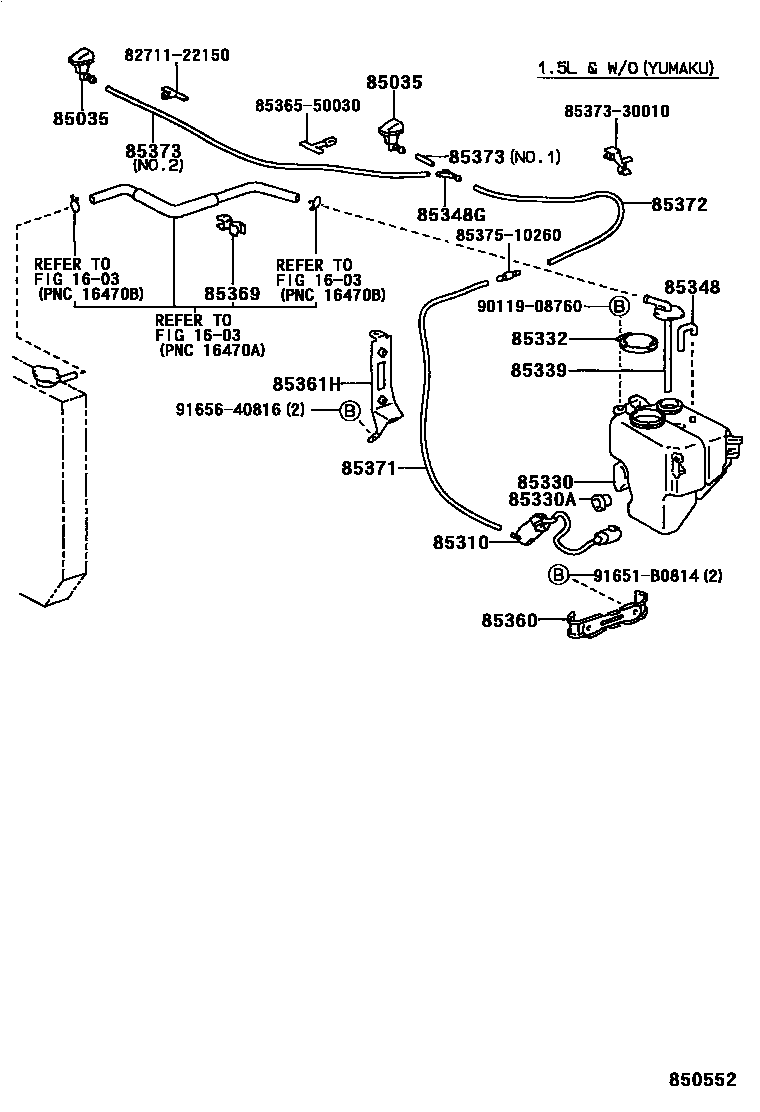

Toyota CROWN — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1COLD SPEC

1603

85035NOZZLE SUB-ASSY, WASHER

main85381-30020-A1×2iGS131,JZS133,LS130..RHD199110-199308

SUPER WHITE 4,050

main85381-30020-A2×2iGS131,JZS133,LS130..RHD199308-199512

SUPER WHITE 2,040

main85381-30020-B0×2iGS131,JZS133,LS130..RHD199110-199308

SUPER SILVER 3 M,176

main85381-30020-B2×2iGS131,JZS133,LS130..RHD199308-199512

SILVER ME,199

main85381-30020-C1×2iLS130..RHD199110-199201

BLACK,183 ,202 ,8J5

main85381-30020-E0×2iGS131,JZS133..RHD..GEN199110-199308

MEDIUM BEIGE M,4H6

main85381-30020-E1×2iGS131,JZS133..RHD199308-199512

BEIGE MM,4K9

main85381-30030-A0×2iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER WHITE 4,050

main85381-30030-A1×2iGS131,JZS133,YS132..LHD199308-199904

SUPER WHITE 2,040

main85381-30030-B0×2iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER SILVER 3 M,176

main85381-30030-B2×2iGS131,JZS133,YS132..LHD199308-199904

SILVER M,199

main85381-30030-C1×2iGS131,JZS133..LHD..(ROY,SAL)199110-199308

BLACK,183 ,202 ,6K2 ,8J5

main85381-30030-D0×2iGS131,JZS133..LHD..(ROY,SAL)199110-199201

DP.RED MC,3H8

main85381-30030-D1×2iLS130,YS132..LHD199201-199308

RED,3E6

main85381-30030-E0×2iGS131,JZS133..LHD..(ROY,SAL)199110-199308

MEDIUM BEIGE M,4H6

main85381-30030-E1×2iGS131,JZS133..LHD..(G,Q)199308-199904

BEIGE MM,4K9

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iJZS133..EECC199110-199308

COLD SPEC

sub85330-10280

main85330-30190iGS131,JZS133,LS130,YS132199110-200104

85330JAR ASSY, WINDSHIELD WASHER

main85315-30150iJZS133..EECC199110-199308

COLD SPEC OR SNOW VERSION

main85331-30280iGS131,JZS133,LS130,YS132199110-200104

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGS131,JZS133,LS130,YS132..GCC,GEN199110-200104

85332CAP, WINDSHIELD WASHER JAR

main85316-30140iJZS133..EECC199110-199308

COLD SPEC

main85316-34050iGS131,JZS133,LS130,YS132199307-200104

main85332-12650iGS131,JZS133,LS130,YS132199110-199307

85339CAP SUB-ASSY, RESERVE TANK

main85339-30280iGS131,JZS133,LS130,YS132199110-200104

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-30280iJZS133..EECC199110-199308

COLD SPEC,NO.1

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iGS131,JZS133,LS130,YS132199110-200104

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30270iGS131,JZS133,LS130,YS132199110-200104

85361HBRACKET, WASHER

main88688-3A100iGS131,LS130,YS132199110-199512

85369CLAMP

main85369-30270iGS131,JZS133,LS130,YS132199110-200104

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iJZS133..EECC199110-199308

L=1450(*H,L=500),COLD SPEC

main90099-33299iJZS133..EECC199110-199308

L=1000(*H,L=600)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGS131,JZS133,LS130..RHD199110-199512

L=1450(*H,L=580)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGS131,JZS133,LS130,YS132199110-199512

L=1450(*H,L=40),NO.1,NO.2

8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22150

8536550030INSULATOR, WINDSHIELD WASHER JAR

main85365-50030

8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-30010

8537510260HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-10260

9011908760

main90119-08760

91651B0814

main91651-B0814

9165640816

main91656-40816

22 parts on this diagram · 4 diagrams in section
