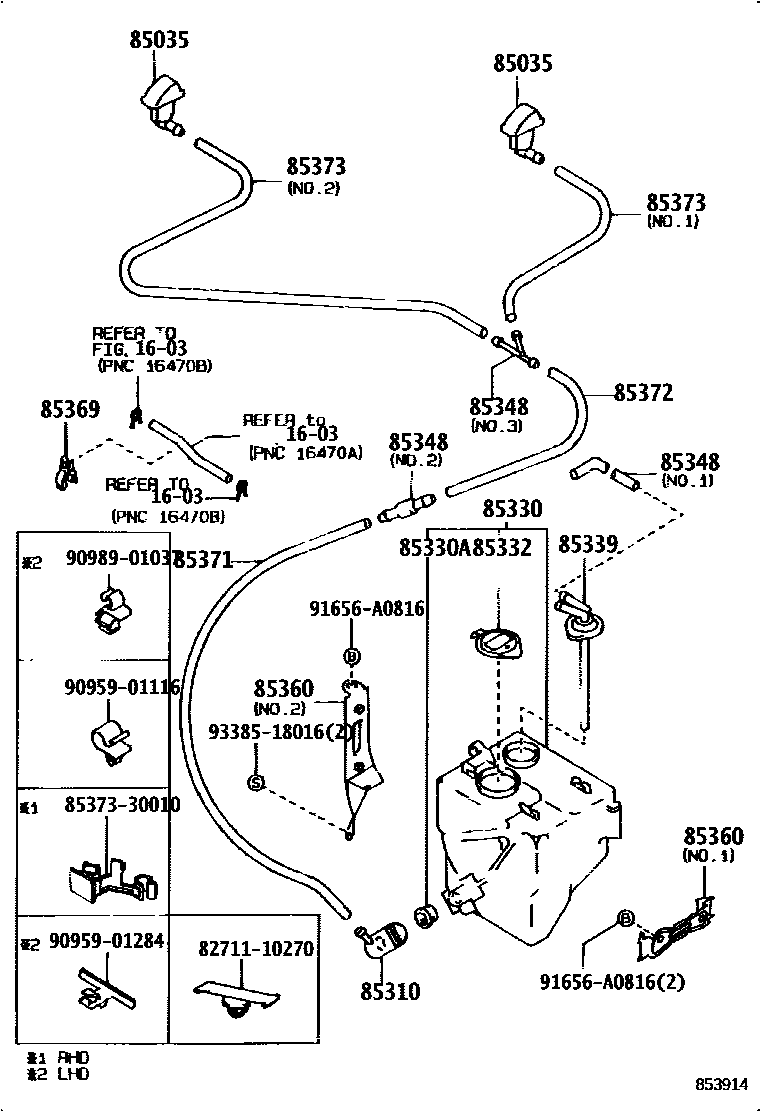

Toyota CROWN — WINDSHIELD WASHER

1603

85035NOZZLE SUB-ASSY, WASHER

main85035-30040-01×2iGS131198709-198908

BLACK,166 ,167 ,202 ,3E6 ,4H6 ,8E6 ,869

sub85381-30020

main85035-30040-08×2iGS131,LS130,MS132,135..RHD198709-198908

WHITE,040

sub85381-30020

main85035-30110-01×2iMS132..WG198709-198908

BLACK,166 ,4H6 ,869

sub85381-30020

main85035-30110-08×2iLS130,MS132,135,YS132..LHD..(SED,WG)198709-198908

WHITE,040

sub85381-30020

main85035-30120-01×2iMS133,135..GCC198709-198908

BLACK,166 ,167 ,202 ,3E6 ,4H6 ,8E6 ,869

sub85381-30020

main85035-30120-08×2iMS133,135..GCC198709-198908

WHITE,040

sub85381-30020

main85035-30130-01×2iLS130,MS133,135..RHD..(ROY,STD)198910-199110

BLACK,182 ,202 ,3H3 ,869

sub85381-30020

main85035-30130-02×2iGS131,LS130,MS133,135..RHD198908-199110

RED,3E6

sub85381-30020

main85035-30130-03×2iGS131,LS130,MS133,135..RHD198908-199110

SUPER SILVER 2 M,166

sub85381-30020

main85035-30130-04×2iLS130,MS133,135..RHD198908-199110

LIGHT BLUE MICA M,8G2

sub85381-30020

main85035-30130-05×2iGS131,MS133,135..RHD198908-199110

MIDIUM BEIGE M,4H6

sub85381-30020

main85035-30130-08×2iGS131,LS130,MS133,135..RHD198908-199110

SUPER WHITE,050

sub85381-30020

main85035-30150-01×2iMS132..SAL..GCC198908-199110

BLACK,3H3 ,869

sub85381-30020

main85035-30150-02×2iGS131,LS130,MS13#,YS132..LHD..SED198908-199110

RED,3E6

sub85381-30020

main85035-30150-03×2iGS131,LS130,MS13#,YS132..LHD..(SED,WG)198908-199110

SUPER SILVER 2 M,166

sub85381-30020

main85035-30150-04×2iGS131,LS130,MS13#,YS132..LHD..SED198908-199110

LIGHT BLUE MICA M,8G2

sub85381-30020

main85035-30150-05×2iGS131,LS130,MS13#,YS132..LHD..(SED,WG)..(4F,4FC,5F)198908-199110

MIDIUM BEIGE M,4H6

sub85381-30020

main85035-30150-08×2iGS131,LS130,MS13#,YS132..LHD..(SED,WG)198908-199110

SUPER WHITE,050

sub85381-30020

main85035-30160-01×2iMS133,135..HT198910-199110

BLACK,182 ,202 ,3H3 ,869

sub85381-30020

main85035-30160-02×2iMS133,135..HT198908-199110

RED,3E6

sub85381-30020

main85035-30160-03×2iMS133,135..HT198908-199110

SUPER SILVER 2 M,166

sub85381-30020

main85035-30160-04×2iMS133,135..HT198908-199110

LIGHT BLUE MICA M,8G2

sub85381-30020

main85035-30160-05×2iMS133,135..HT198908-199110

MIDIUM BEIGE M,4H6

sub85381-30020

main85035-30160-08×2iMS133,135..HT198908-199110

SUPER WHITE,050

sub85381-30020

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-30070iGS131,LS130,MS13#,YS132198709-198908

sub85310-89115

main85310-30090iGS131,LS130,MS13#,YS132198908-199110

85330JAR ASSY, WINDSHIELD WASHER

main85331-30260iGS131,LS130,MS13#,YS132198709-198908

main85331-30280iGS131,LS130,MS13#,YS132198908-199110

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGS131,LS130,MS13#,YS132198709-199110

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iLS130,MS13#,YS132198709-198811

main85332-12650iGS131,LS130,MS13#,YS132198811-199110

sub85316-34050

85339CAP SUB-ASSY, RESERVE TANK

main85339-30260iGS131,LS130,MS13#,YS132198709-198908

main85339-30280iGS131,LS130,MS13#,YS132198908-199110

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-30280iGS131,LS130,MS13#,YS132198908-199110

NO.1

main85338-16020iGS131,LS130,MS13#,YS132198709-198908

NO.1

sub85338-12010

main85348-12250iGS131,LS130,MS13#..RHD198709-199110

NO.3

main85348-14390iGS131,LS130,MS13#,YS132..LHD198709-199110

NO.3

main85349-89122iGS131,LS130,MS13#,YS132198709-199110

NO.2

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30270iMS13#,YS132198709-198809

NO.1

main88688-3A100iGS131,LS130,YS132198908-199110

NO.2

85369CLAMP

main85369-30270iGS131,MS13#,YS132198709-198908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGS131,LS130,MS13#,YS132198709-198908

L=1000

main90445-07078iGS131,LS130,MS13#,YS132198908-199110

L=480

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iLS130,MS13#,YS132..LHD198709-198908

L=1450

main90099-33202iGS131,LS130,MS132,135..RHD198709-198908

L=1450(*H,L=800)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMS133..SALEX198709-198909

L=1450,NO.2

main90099-33087iGS131,LS130,MS13#,YS132198709-198908

L=1450(*H,L=40),NO.1

main90099-33811iGS131,LS130,MS13#,YS132198908-199110

L=535,NO.2

8271110270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10270

8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-30010

9095901116

main90959-01116

9095901284

main90959-01284

9098901037

main90989-01037

91656A0816

main91656-A0816

9338518016

main93385-18016

20 parts on this diagram · 1 diagram in section
