Toyota CROWN — VENTURI

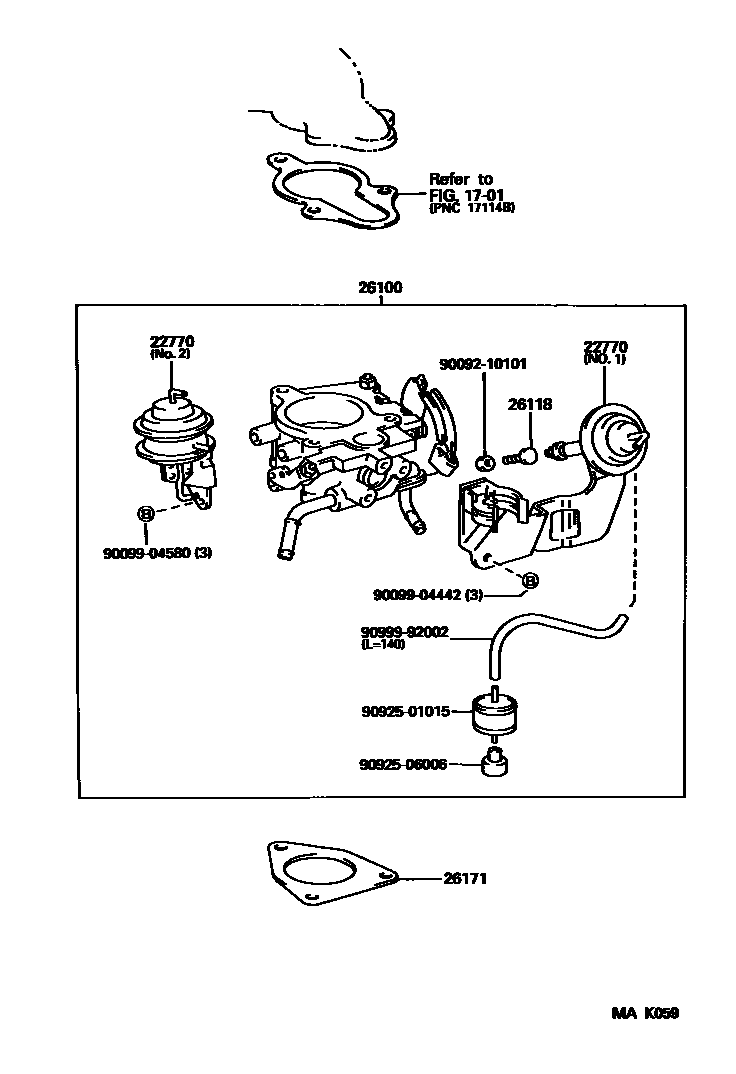

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

22770ACTUATOR, IDEL UP

main26133-54040i199110-199512

NO.1

main26133-54170i199110-199512

NO.2

26100VENTURI ASSY

main26100-54190i199110-199512

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i199110-199512

26171GASKET, VENTURI

main17116-54021i199110-199512

9009210101

main90092-10101

9009904442

main90099-04442

9009904580

main90099-04580

9092501015

main90925-01015

9092506006

main90925-06006

9099992002

main90999-92002

11 parts on this diagram · 1 diagram in section

VENTURI for Toyota CROWN

This section contains 11 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: MANIFOLD, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
