Toyota CROWN — VENTURI

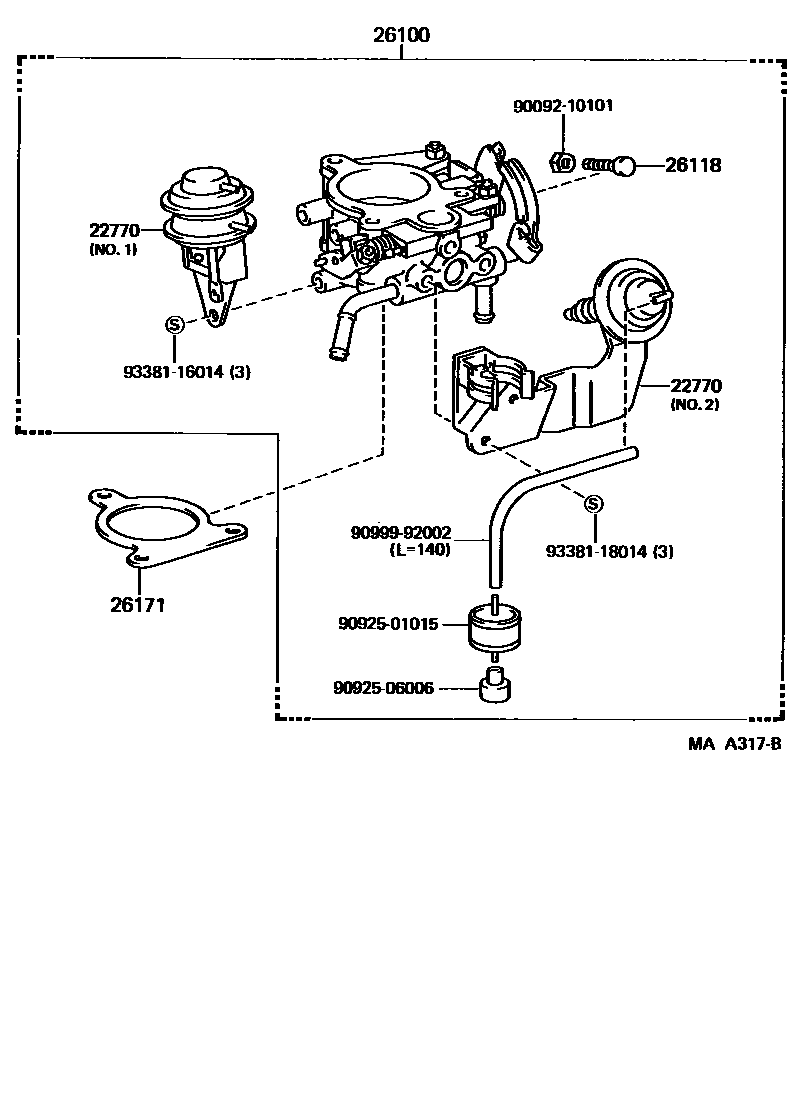

Parts diagram
22770ACTUATOR, IDEL UP
main26133-54040i198709-198908
NO.2
main26133-54040i198908-199110
NO.1
main26133-54070i198709-198908
NO.1
main26133-54170i198908-199110
NO.2
26100VENTURI ASSY
main26100-54032i198709-198801
main26100-54033i198801-198908
main26100-54190i198908-199110
26118SCREW, STOP PLATE ADJUSTING
main26118-54030i198709-198908
26171GASKET, VENTURI
main17116-54021i198908-199110
main26171-54010i198709-198908
9009210101
main90092-10101
9092501015
main90925-01015
9092506006
main90925-06006
9099992002
main90999-92002
9338116014
main93381-16014
9338118014
main93381-18014

10 parts on this diagram · 2 diagrams in section

VENTURI for Toyota CROWN

This section contains 10 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
