Toyota CROWN — VENTURI

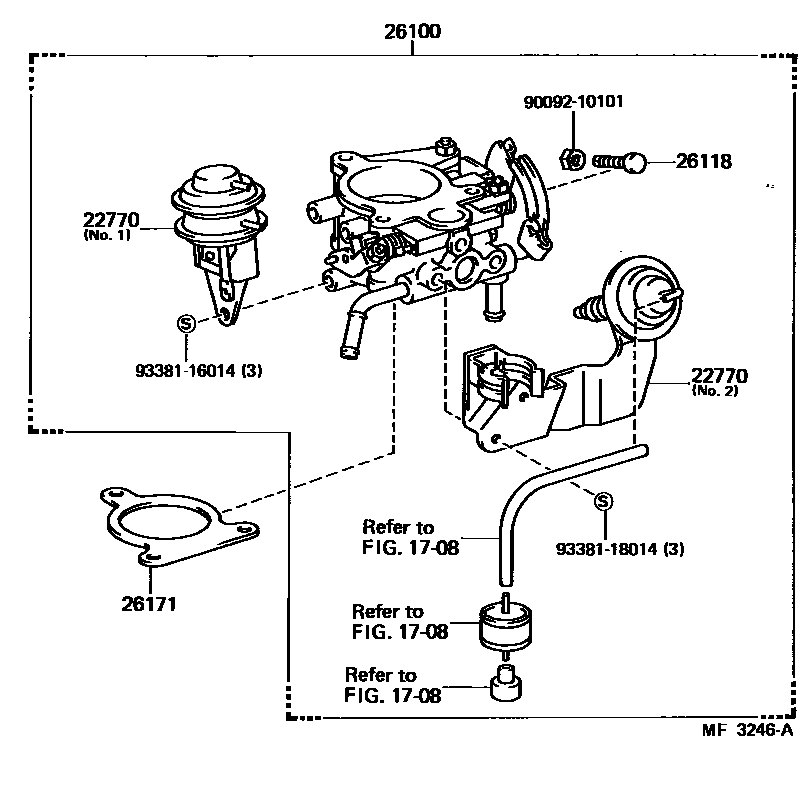

Parts diagram
1708VACUUM PIPING
→ Go to FIG 17-08
22770ACTUATOR, IDEL UP
main26133-54020i198308-198407
NO.1
main26133-54030i198308-198401
NO.2
main26133-54040i198401-198708
NO.2
main26133-54070i198407-198708
NO.1
26100VENTURI ASSY
main26100-54031i198308-198401
main26100-54032i198401-198708
26118SCREW, STOP PLATE ADJUSTING
main26118-54030i198308-198708
26171GASKET, VENTURI
main26171-54010i198308-198708
9009210101
main90092-10101
9338116014
main93381-16014
9338118014
main93381-18014

8 parts on this diagram · 1 diagram in section

VENTURI for Toyota CROWN

This section contains 8 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: VACUUM PIPING, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
