Toyota CROWN — TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-30050iJZS133..EECC199110-199308

sub84988-30020

84988ABULB, TRACTION CONTROL SWITCH

main84999-10240iJZS133..EECC199110-199308

12V 1.3W

85999VBRACKET, RELAY

main85999-30340iJZS133..EECC199110-199308

89452CSENSOR, THROTTLE POSITION

main89452-33010iJZS133..EECC199110-199308

sub89452-22090

sub89452-32060

89631COMPUTER, TRACTION CONTROL

main89631-30040iJZS133..EECC199110-199308

89632MOTOR, TRACTION THROTTLE VALVE

main89632-24010iJZS133..EECC199110-199308

89633RELAY, TRACTION CONTROL

main89633-30020iJZS133..EECC199110-199308

9011906390

main90119-06390

9017606024

main90176-06024

9356755014

main93567-55014

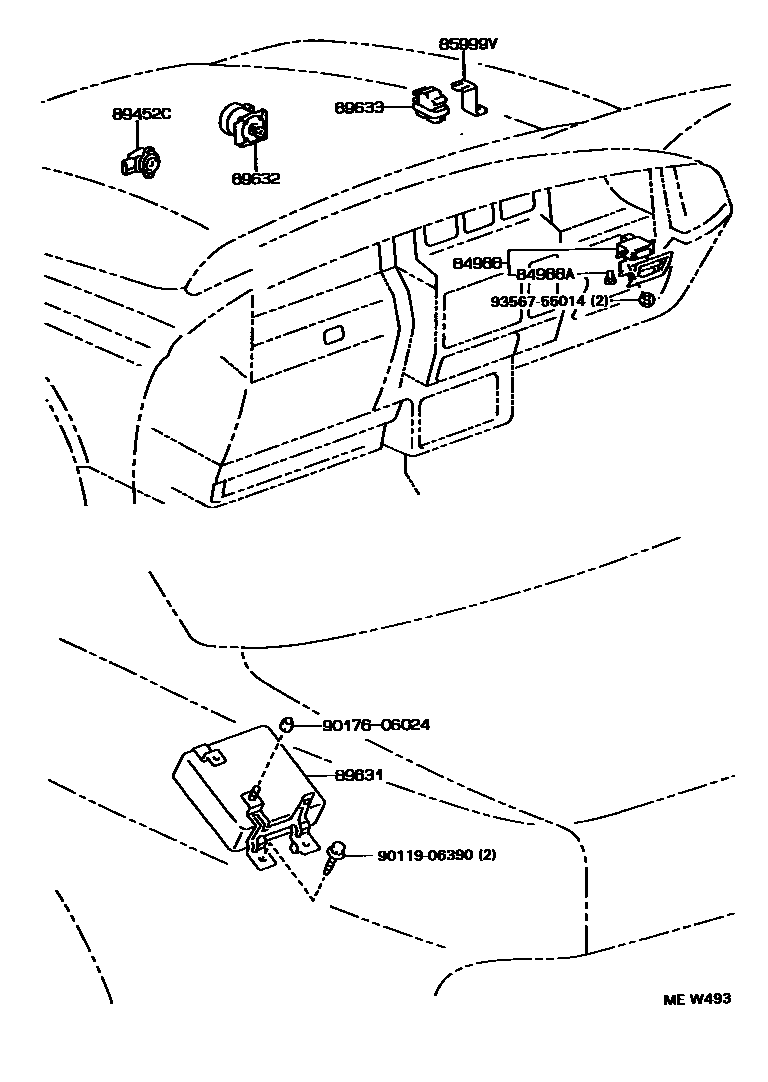

10 parts on this diagram · 1 diagram in section
